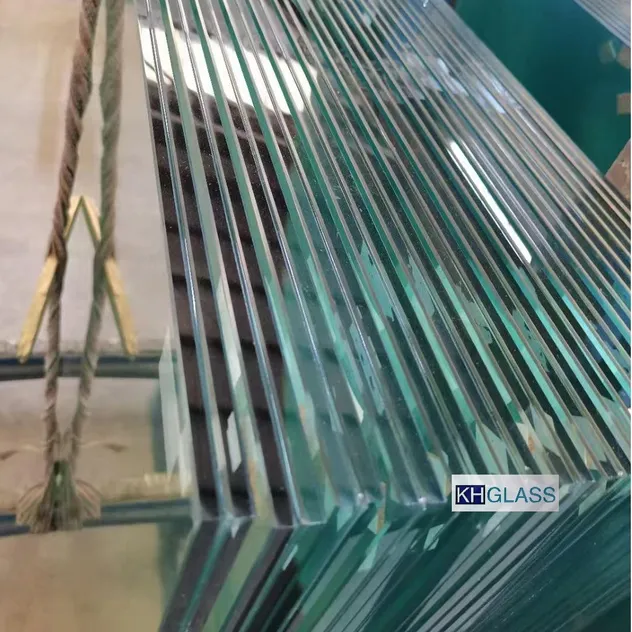

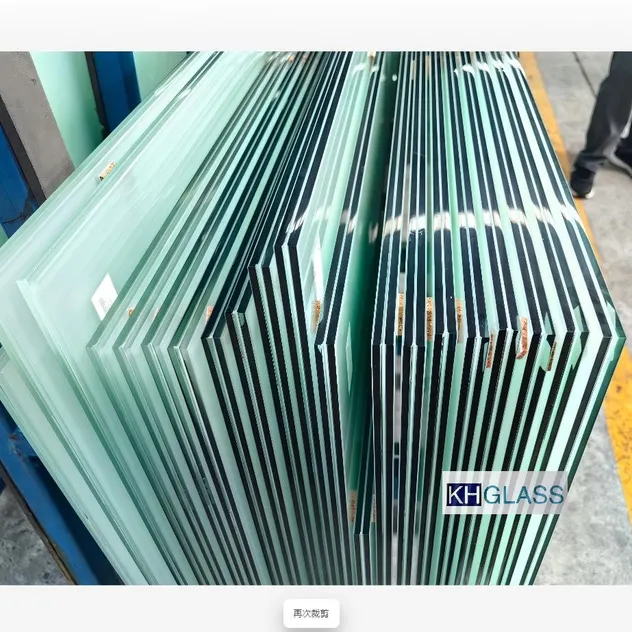

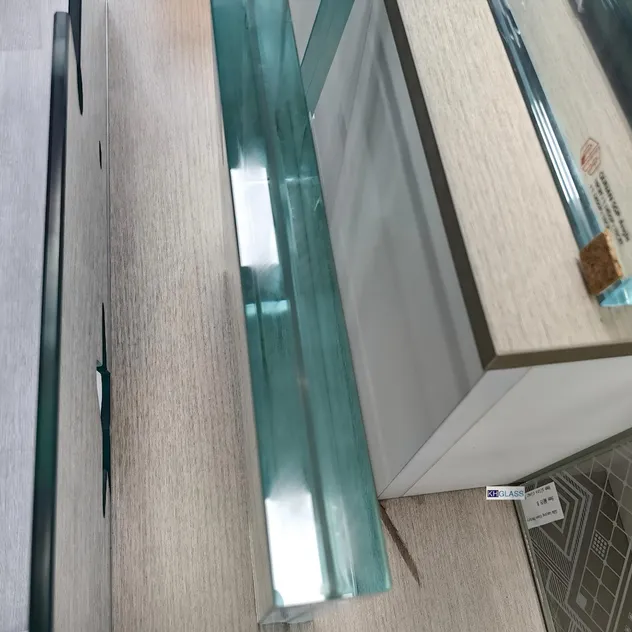

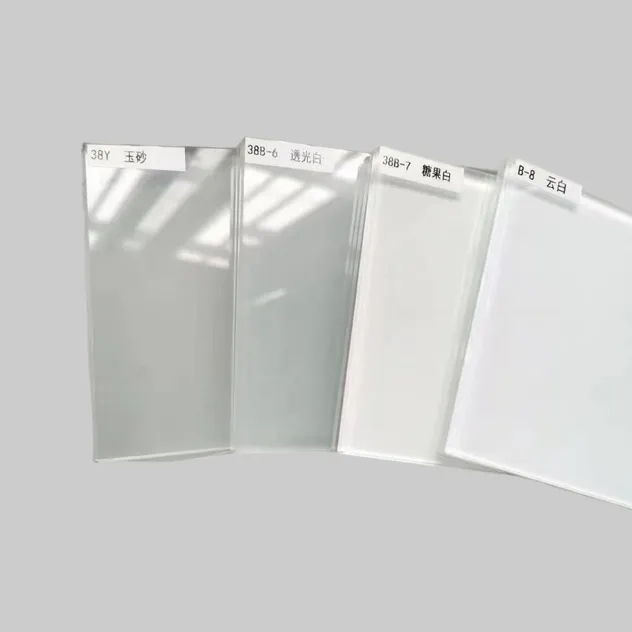

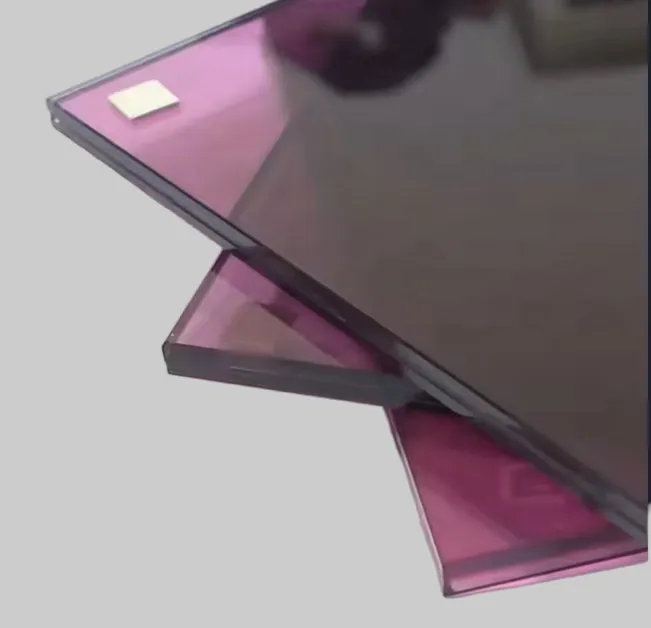

Laminated Glass is composed of two or more layers of glass permanently bonded together with an interlayer (PVB / SGP / EVA) via a controlled, highly pressurized and industrial heating process. The lamination process ensures that glass panels hold together in the event of breakage, significantly reducing the risk of injury. It is classified as Grade A Safety Glass.

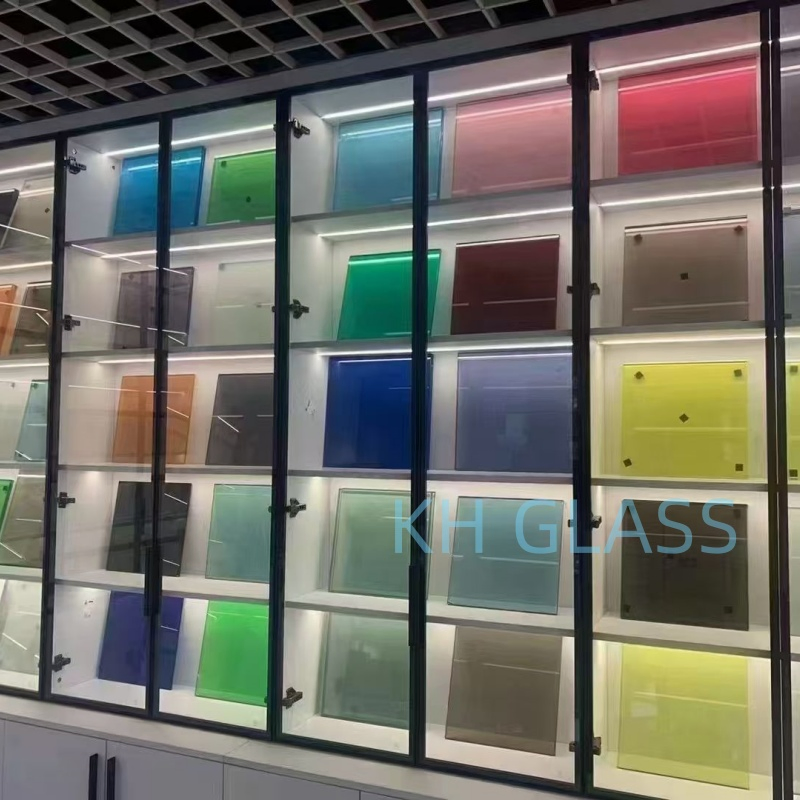

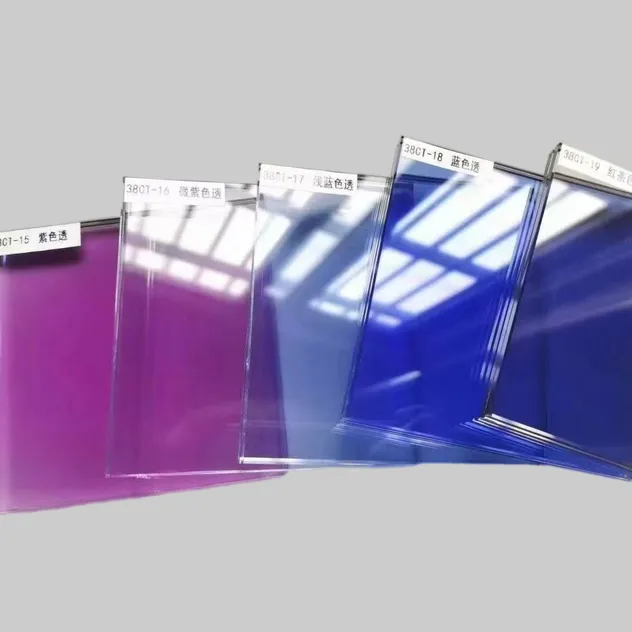

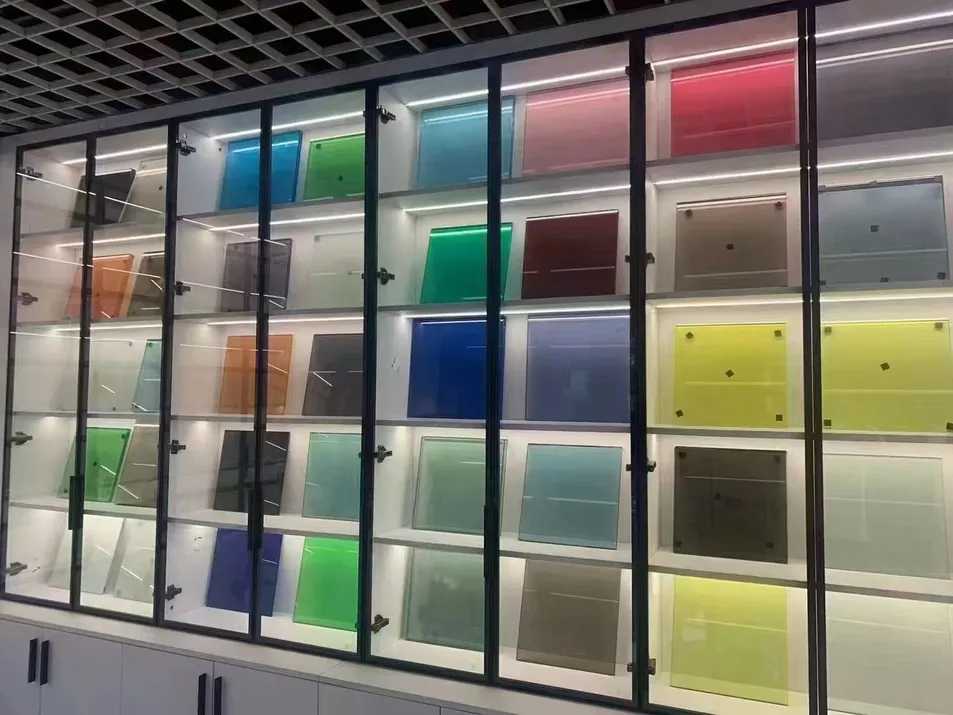

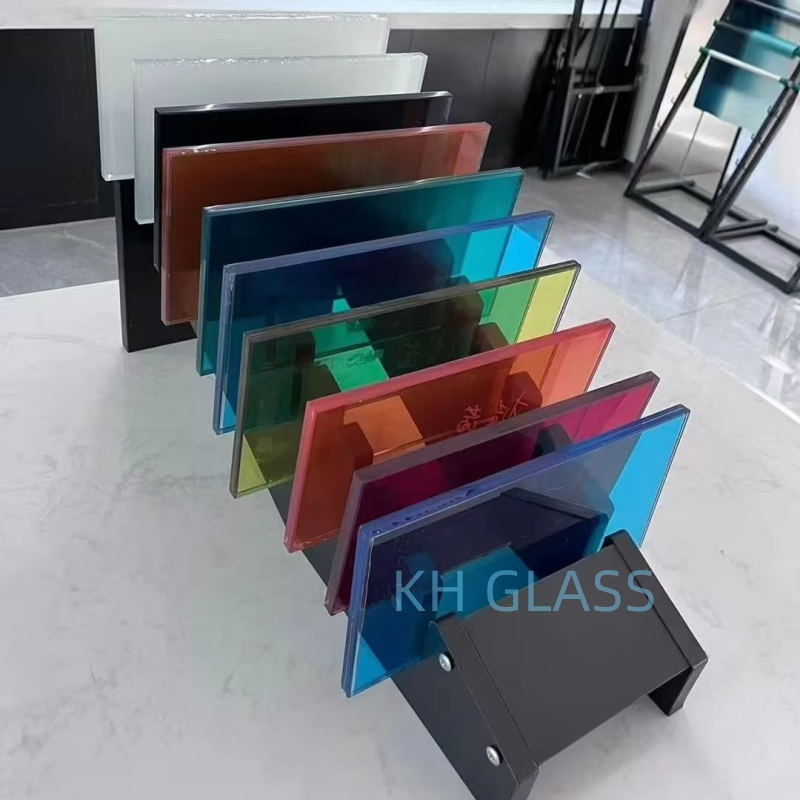

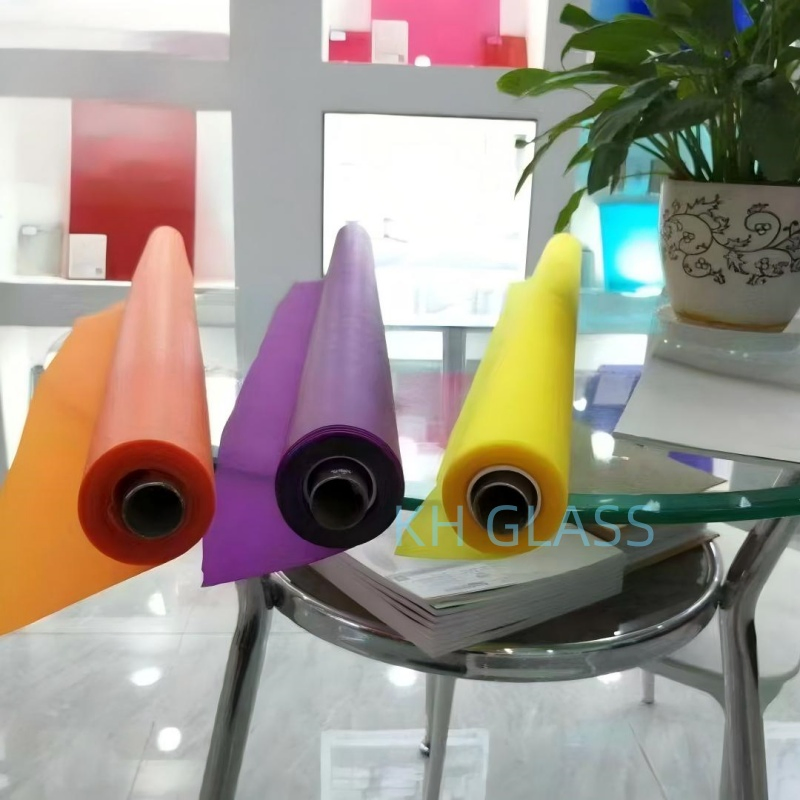

PVB Color: Clear, Green, Blue, Bronze, Grey, Milk white, dark, etc.

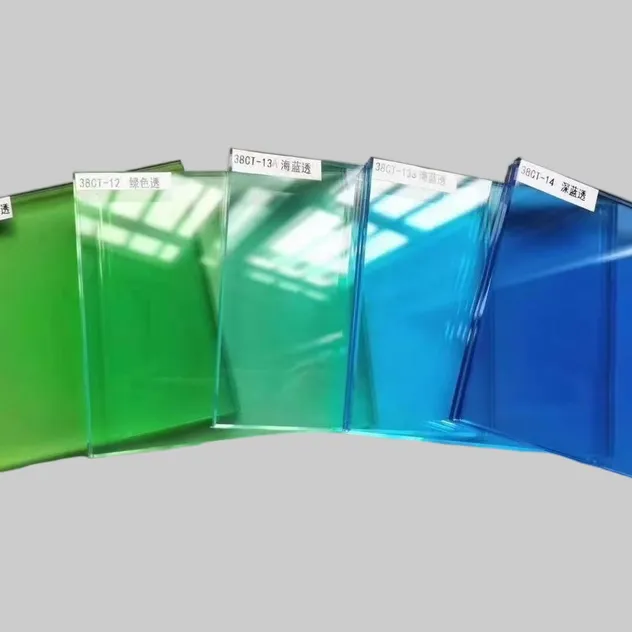

Glass Color: Clear, Extra Clear, French Green, Dark Green, Ford Blue, Dark Blue, Bronze, Euro Grey, etc.
PVB Thickness: 0.38mm, 0.76mm, 1.14mm, 1.52mm etc.
Sizes: 1830x2440mm, 2134x3300mm, 2250x3300mm, customized sizes available.
| Performance Levels according to Thickness | |||
|---|---|---|---|
| Glass Characteristic | Thickness (mm) | UV Transmittance (%) | LT (%) |
| 3+0.38+3mm Clear | 6.38mm | 5 | 89 |
| 6+0.38+6mm Clear | 12.38mm | 3 | 86 |
| 6+0.38+6mm Reflective | 12.38mm | 0.5 | 22 |
| Requirement | Benefit | Glass Assembly |
|---|---|---|
| Solar control | Energy saving / UV elimination | 2ply+1PVB interlayer |
| Sound control | Noise reduction | 2ply+1PVB interlayer |
| Safety | Lowest injury risk | 2ply+2PVB interlayers |
| Security | Bullet proof / Blast resistant | 4ply+multi PVB interlayers |
