3-19 mm Hot Bend/Curved/Flat/Laminated/Bent/Tempered/Toughened/Convex/Concave/ Safety Bent/Bending Glass for Curtain Wall/Windows Door/Building/Balustrade

1 / 5

3-19 mm Hot Bend/Curved/Flat/Laminated/Bent/Tempered/Toughened/Convex/Concave/ Safety Bent/Bending Glass for Curtain Wall/Windows Door/Building/Balustrade

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Product Overview

Standard

GB15763.2-2005

Steel Degree

Tempered Glass

Flat Thickness

2-19mm

Curve Thickness

5-8mm

Technics

Physically Tempered

Flatness

High Class

Product Name

Curved/Bent Safety Tempered Glass

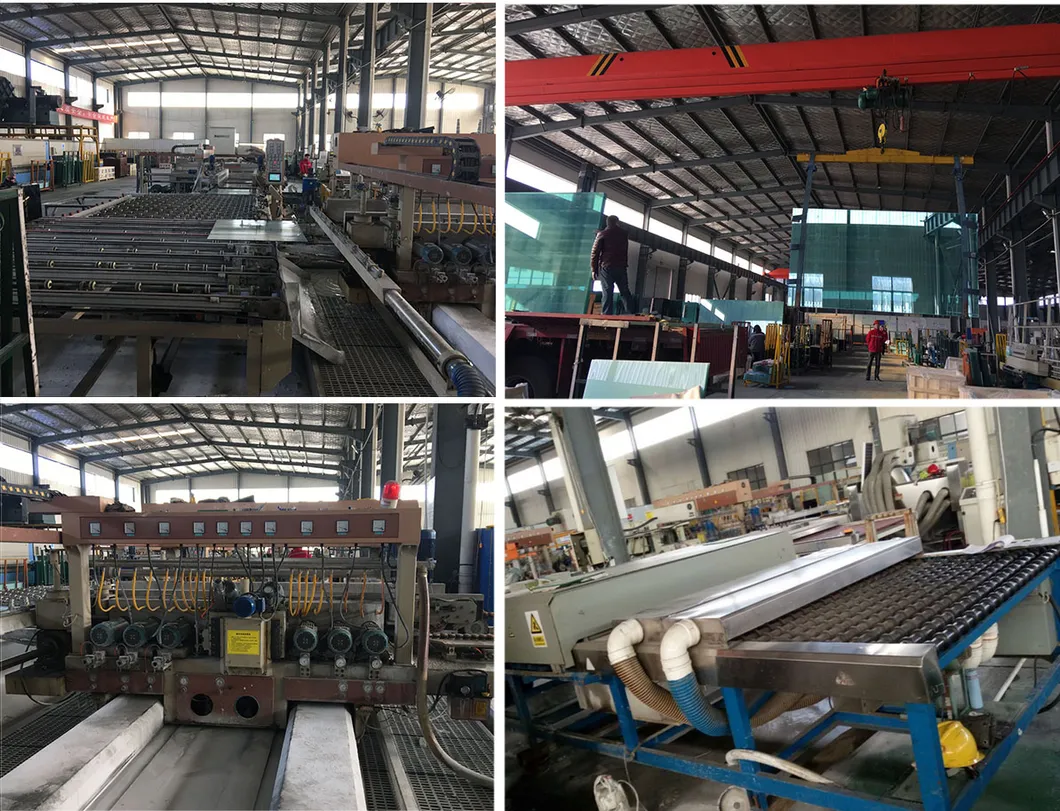

Supply Ability

20,000 SQM Per Day

Max. Size

12,000 mm * 3,300 mm

Min. Size

100mm * 300mm

Product Description

Curved Tempered glass is heated over its softening temperature and curved to the required radius. By suddenly chilling it with jets of cold air, the glass is shaped with a specific radial profile.

Key Features:

Same safety and anti-impact ability as flat tempered glass.
Higher intensity for wind pressure and bending resistance compared to flat glass.
Customizable thickness from 3mm to 19mm.

Applications

External use of windows and doors in offices, houses, and shops.
Interior glass screens, partitions, and balconies.
Shop display windows, showcases, and display shelves.
Furniture and table-tops.
Greenhouses and pool fencing.

Technical Parameters

Max. Size (Flat)	2-8mm: 2400×3600mm \| 10-12mm: 2400×4200mm \| 15-19mm: 2400×4500mm
Max. Size (Bent)	4-15mm: 2400×1500mm
Radius (R)	4~6mm R≥480mm \| 8~12mm R≥800mm \| 15mm+ R≥1500mm
Thickness Options	2mm / 3mm / 4mm / 5mm / 6mm / 8mm / 10mm / 12mm / 15mm / 19mm
Color Range	Clear, Ultra Clear, Euro Bronze, Golden Bronze, Blue, Ocean Blue, Dark Blue, F-Green, Dark Green, Euro Grey, Dark Grey
Processing Technology	Polished edges, beveled edges, chamfered edges, drilling holes, cut-outs

Quality & Certifications

Our wide assortment of both raw and processed glass products meet international standards. We provide customizable options to ensure high performance in architectural and decorative use.

Packaging & Shipping

Interlayer paper between sheets to prevent scratches.
Seaworthy strong plywood/wooden crates.
Iron or plastic belts for consolidation and stability.
Professional loading techniques to minimize breakage during climate changes.

Our Advantages

Delivery on Time: Optimized logistics and production scheduling.
OEM/Customized Design: Flexible sizing and thickness based on project requirements.
International Certification: Compliance with CE, EN12150, ISO9001, CCC, SGS, and GB.
Comprehensive Support: Personalized relationship and professional after-sales service.

Frequently Asked Questions

Can you provide customized production?

Yes, we have a professional technical team that can produce glass based on your specific requirements and designs.

What is the glass packaging like? Is it safe?

We use seaworthy strong plywood crates with paper interleaving. Our loading workers have extensive experience in packing and fixing crates within containers for safe transit.

What is the typical payment term?

Our standard payment term is T/T 30% in advance and 70% after receiving the copy of the B/L. We also accept L/C at sight.

What kinds of glass products do you offer?

We offer a full range of glass products, including raw float, reflective, patterned, laminated, tempered, and acid-etched glass, as well as mirrors.

What is the minimum order quantity (MOQ)?

Our standard MOQ is one 20-foot container (approximately 20-27 tons), though specific project needs can be discussed.

What trade terms do you support?

We commonly operate under FOB, CFR, and CIF trade terms.
