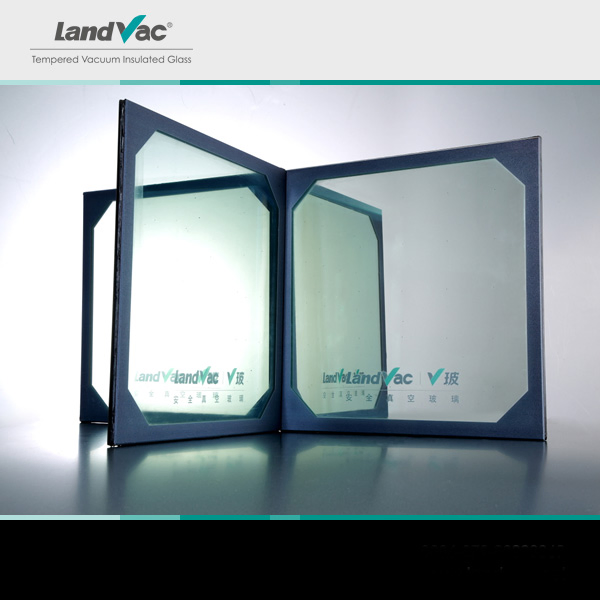

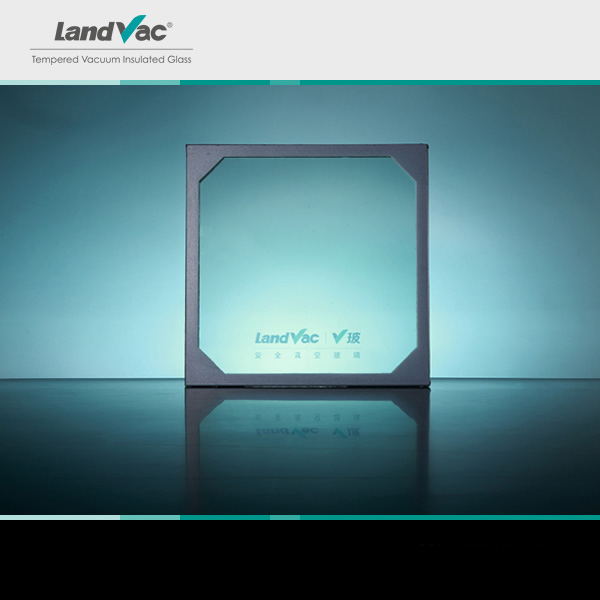

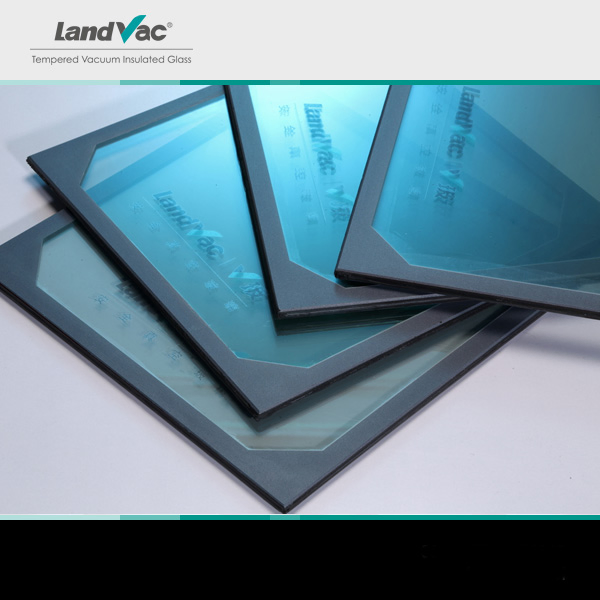

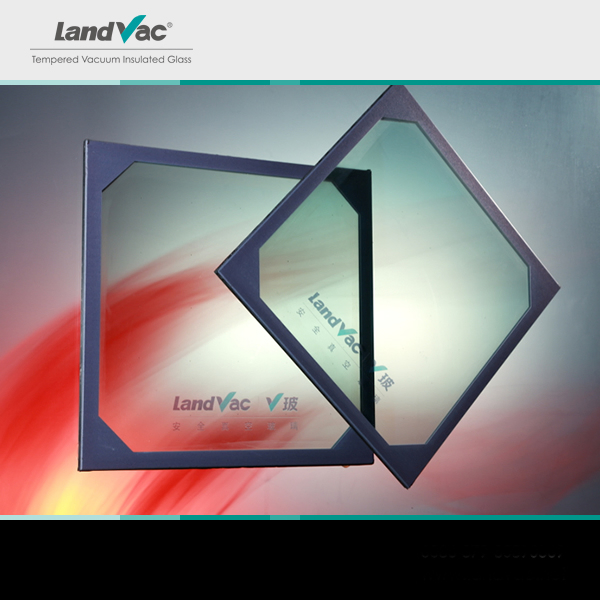

High Thermal Efficiency Insulating Glass Double Glazing Low-e Tempered VIG Vacuum Insulated Glass

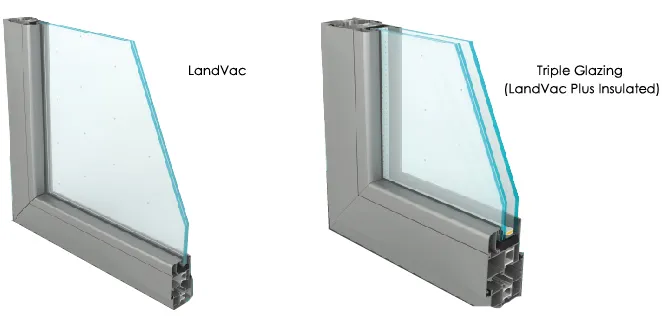

| Product Type | Structure | Thickness (mm) |
| LandVac | 4TL+0.3V+4T | 8.3 |
| Triple Glazing | 4T+12A+4TL+0.3V+4T | 24.3 |
| Product Type | U-value (W/m²K) | SHGC | SC | Sound Isolation (dB) | Max Dimension (mm) |
| LandVac | 0.48 | 0.49 | 0.56 | 39 | 1500x2500 |
| Triple Glazing | 0.42 | 0.45 | 0.52 | 42 | 1500x2500 |
* T-Tempered clear glass; TL-tempered Low-E glass; V-vacuum space; A-air space. Data for reference only.

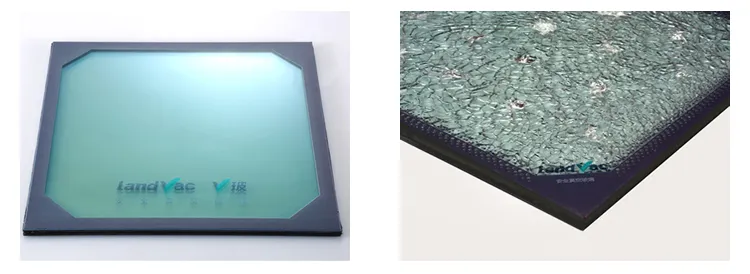

Tempered Safety: Adopting low temperature sealing technology, it perfectly retains the safety features of tempered glass. Surface stress exceeds 90MPa.

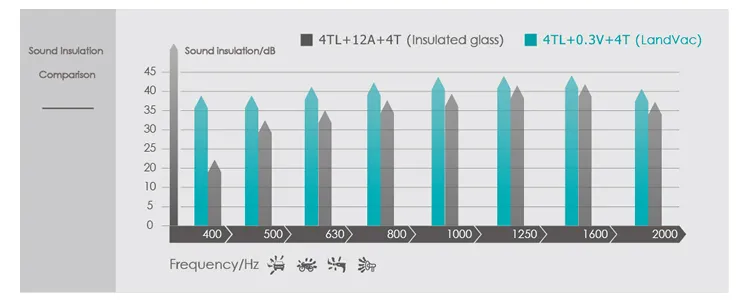

Ultimate Noise Control: Blocks medium and low frequency noises effectively. Reduces outdoor noise of 75dB by 39dB.

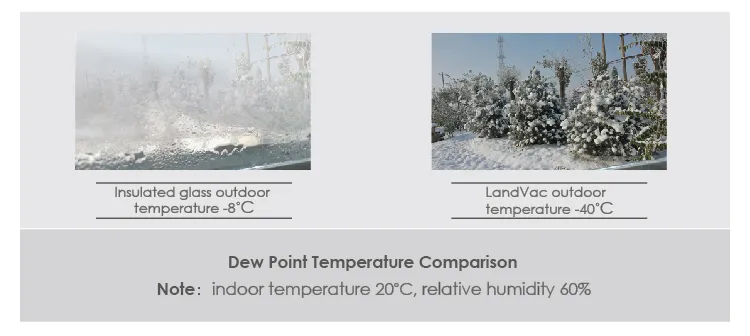

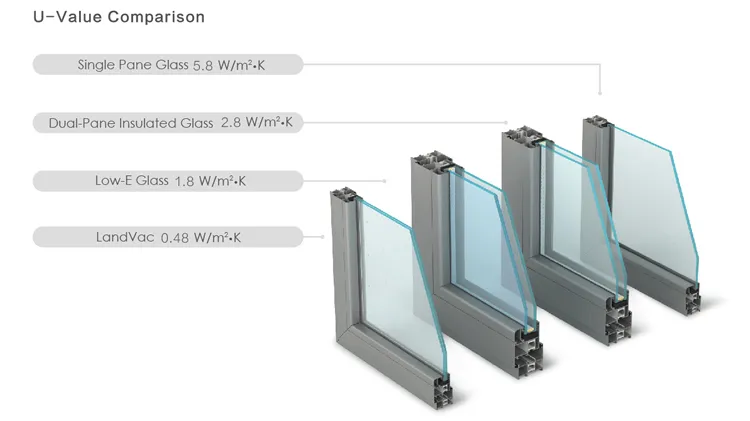

Extreme Performance: 2-4 times better thermal insulation than standard insulated glass and 6-10 times better than single pane glass. Surface remains condensation-free at -40°C.
Retains surface stress exceeding 90MPa, perfectly maintaining safety features against impact.
Uses materials with high resistance against thermal expansion and contraction for superior durability.

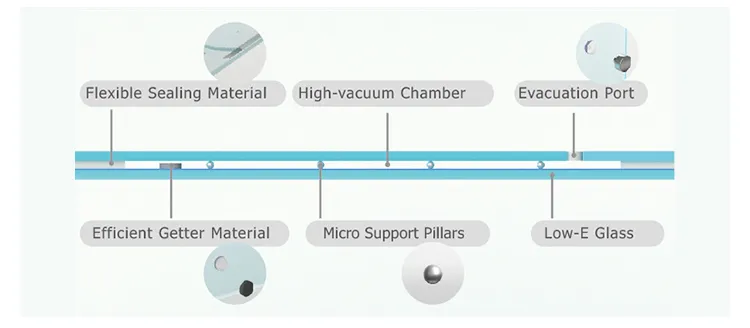

Maintains consistency of high degree vacuum layers in a UHV chamber for remarkable longevity.
Ensures the sealing does not protrude, allowing for easy transportation and elegant mounting.

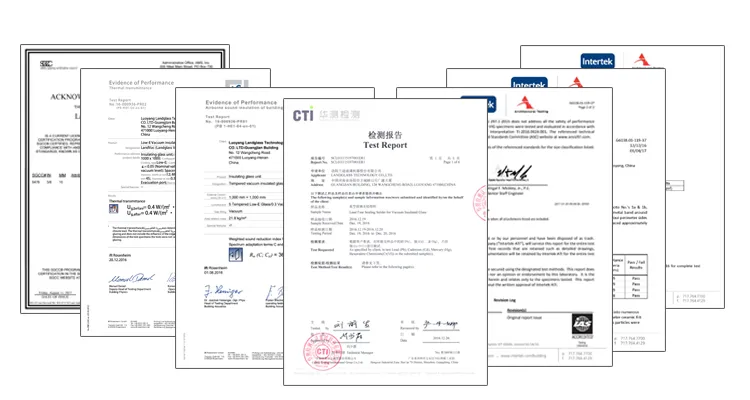

Our vacuum insulated glass has been approved by authoritative third-party testing centers. Results confirm thermal performance at Level 10 (the highest national standard) and sound insulation at Level 4.
