| Specifications | Parameter Range | Applicable Scenarios | Thickness / Transmittance | Power Output |
|---|---|---|---|---|
| Home | 1200×600mm / 1600×800mm | Home Roofs / Balcony Railings | 10-12mm / 10%-60% | 100W-300W/unit |
| Commercial | 2400×1200mm / 3000×1500mm | Factory Walls / Power Plants | 22mm / 10%-60% | 500W-1000W/unit |
| Custom | 1000-4000mm available | Special Curtain Walls | 6-20mm / 10%-60% | Calculated by size |

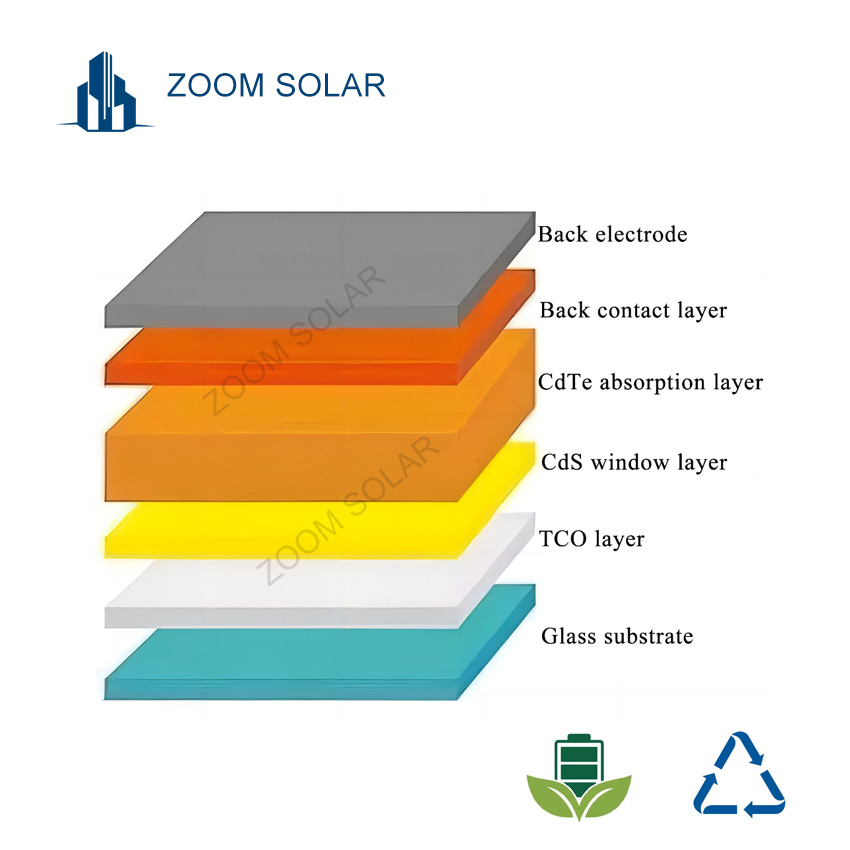

The structure of cadmium telluride (CdTe) thin-film solar cells consists of five primary layers: glass substrate, transparent conductive oxide layer (TCO), cadmium sulfide (CdS) window layer, cadmium telluride (CdTe) absorption layer, and the back contact/electrode layer.

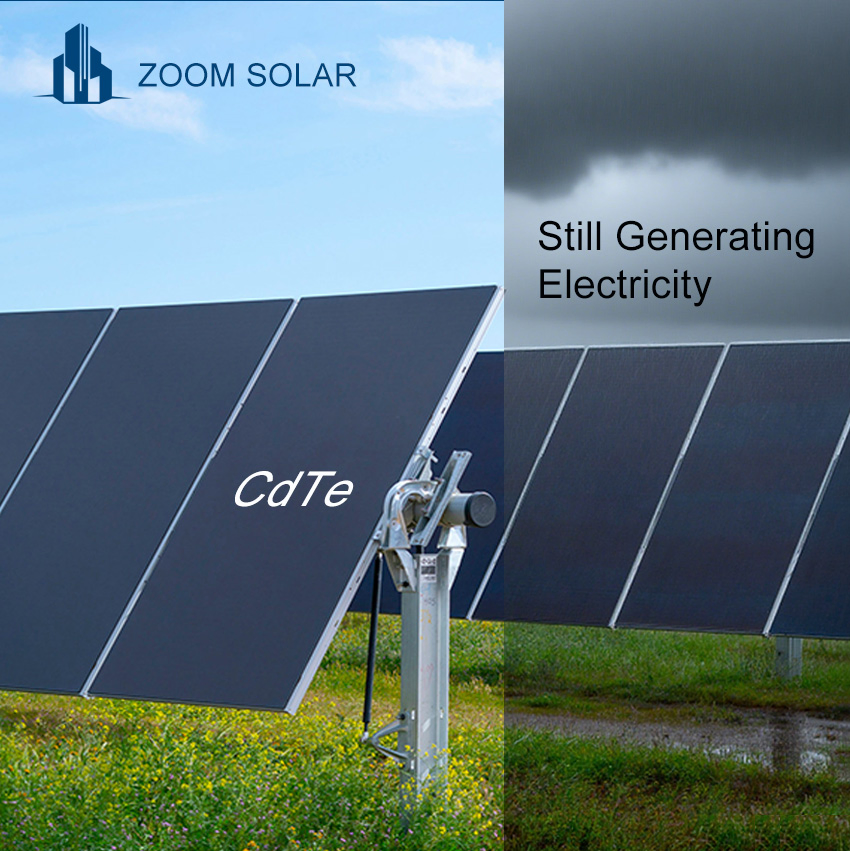

CdTe is a direct bandgap material with superior absorption across the entire spectrum. Its performance in early morning, evening, or hazy conditions is significantly better than traditional crystalline silicon cells.
With a coefficient of approximately -0.21~0.25%/ºC, these cells maintain high stability and power generation efficiency even in high-temperature environments.
The spectral response is highly compatible with solar light. With an absorption layer of only 1μm, it captures over 90% of visible light, offering high theoretical efficiency and low energy consumption during production.
Unlike crystalline silicon, these modules do not suffer from light-induced degradation (LID) and maintain stable output in humid climates.

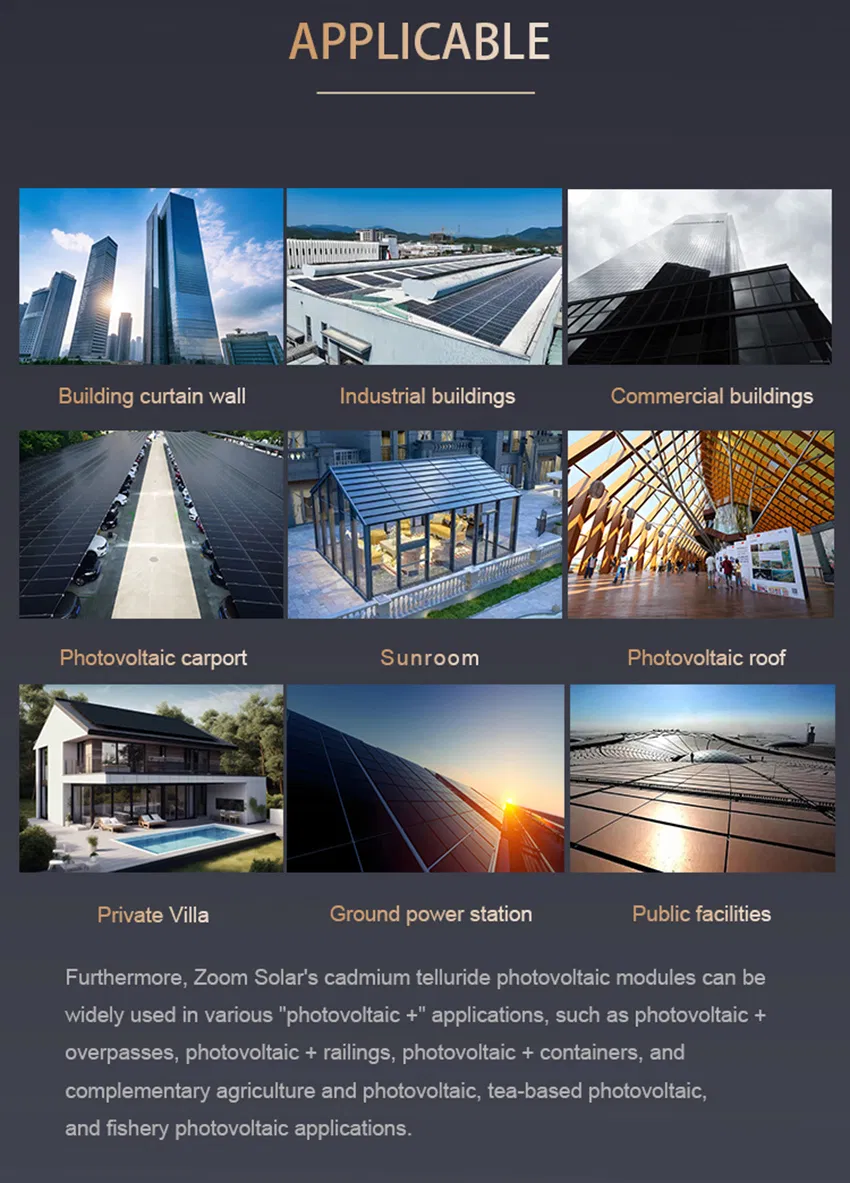

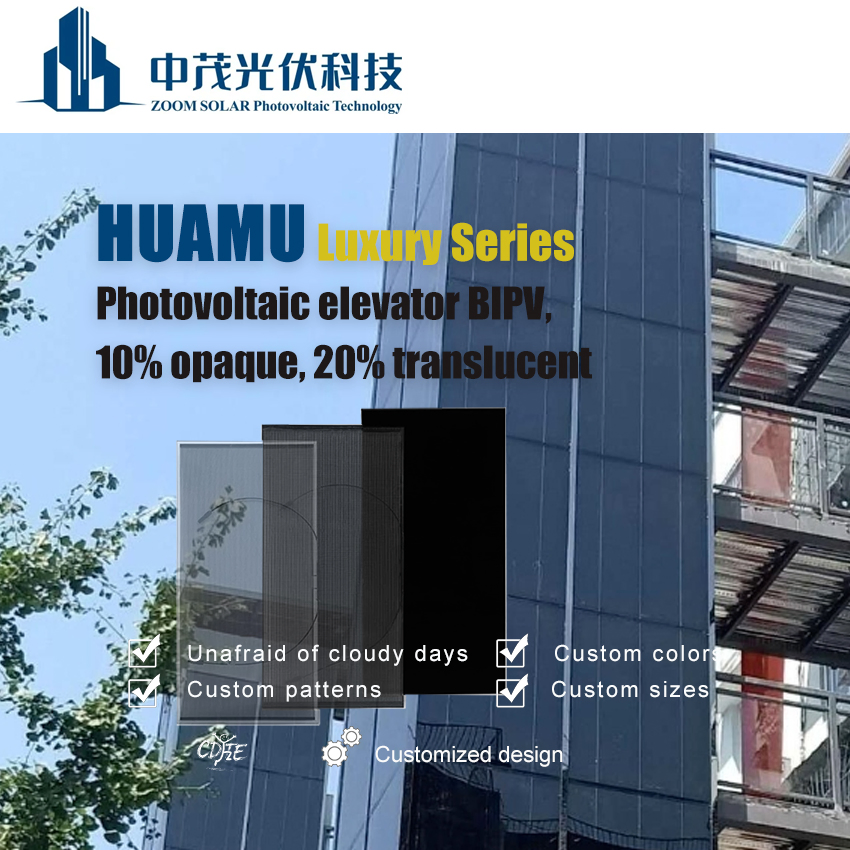

Specializing in the R&D and production of cadmium telluride (CdTe) and perovskite thin-film solar cells, the focus is on Building-Integrated Photovoltaics (BIPV) and consumer electronics. The technology supports customizable shapes, dimensions, and light transmittance for seamless curtain wall integration.
