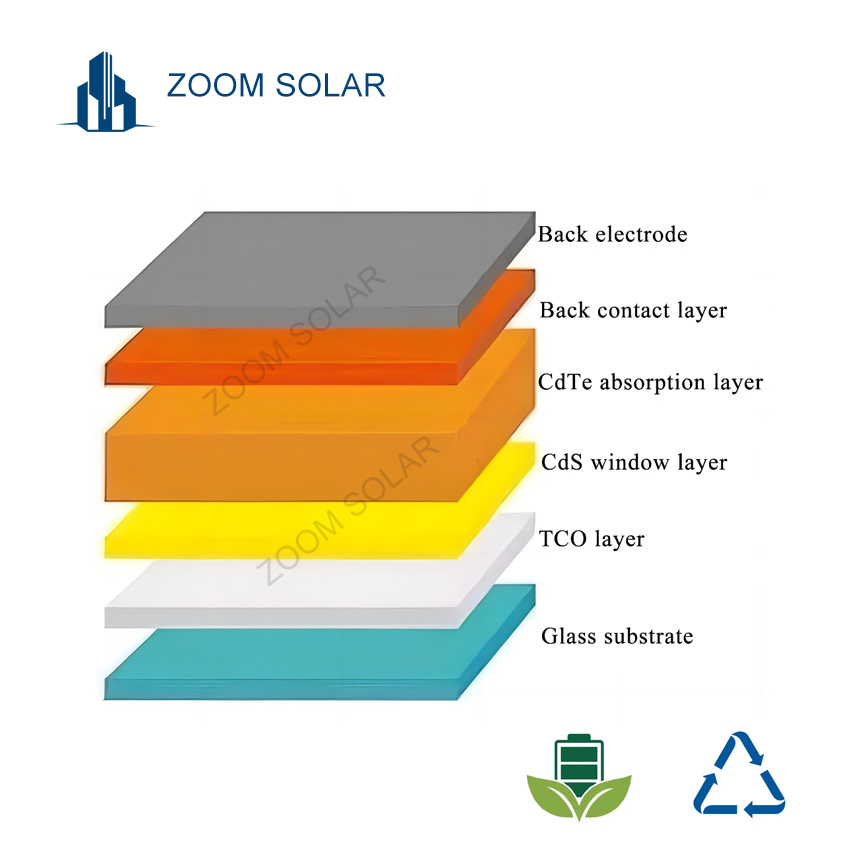

The structure of cadmium telluride thin-film solar cells consists of five layers: glass substrate, transparent conductive oxide layer (TCO layer), cadmium sulfide (CdS) window layer, cadmium telluride (CdTe) absorption layer, back contact layer, and back electrode.

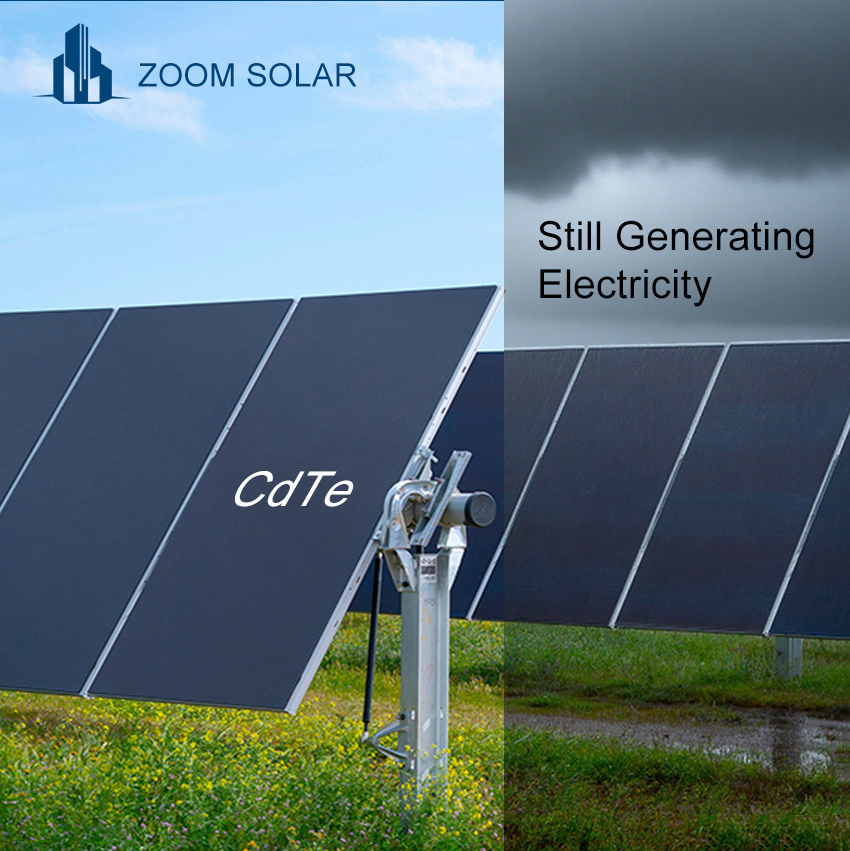

(1) Good weak light performance: CdTe is a direct bandgap material with excellent absorption. Performance in early morning, evening, or hazy conditions is significantly better than crystalline silicon cells.
(2) Low temperature coefficient: With a coefficient of about -0.21~0.25%/ºC, these cells maintain high power output even in high-temperature environments.
(3) High conversion efficiency: Spectral response is highly compatible with the solar spectrum, absorbing over 90% of visible light with only 1μm thickness.

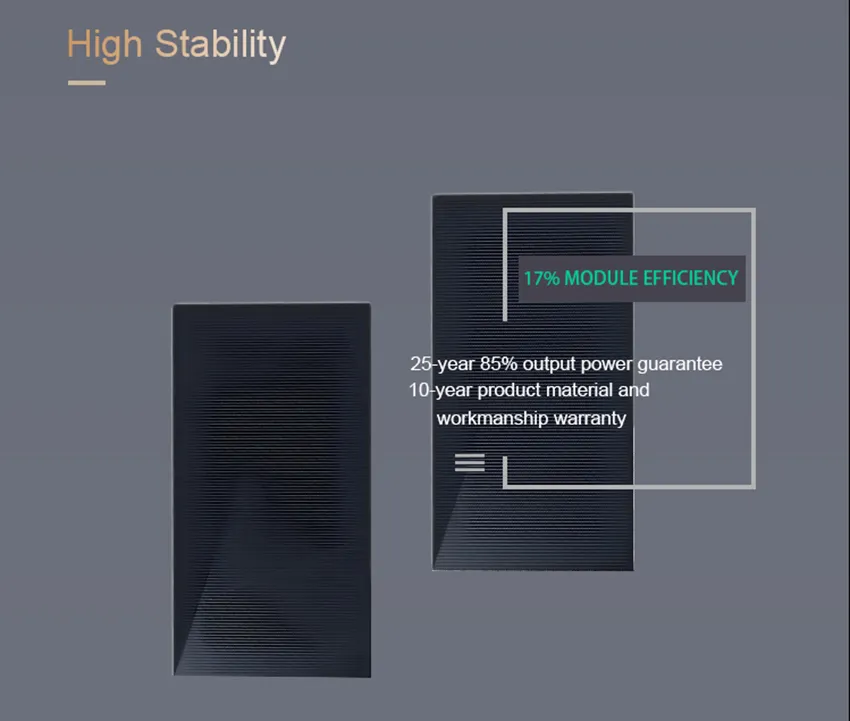

(4) Stability: No light-induced degradation characteristics and stable power output in humid climates.
| Specifications | Parameter Range | Applicable Scenarios | Thickness / Transmittance | Power Output |
|---|---|---|---|---|
| Home | 1200×600mm / 1600×800mm | Home Roofs / Balcony Railings | 10-12mm / 10%-60% | 100W-300W/unit |
| Commercial | 2400×1200mm / 3000×1500mm | Factory Walls / Large Plants | 22mm / 10%-60% | 500W-1000W/unit |

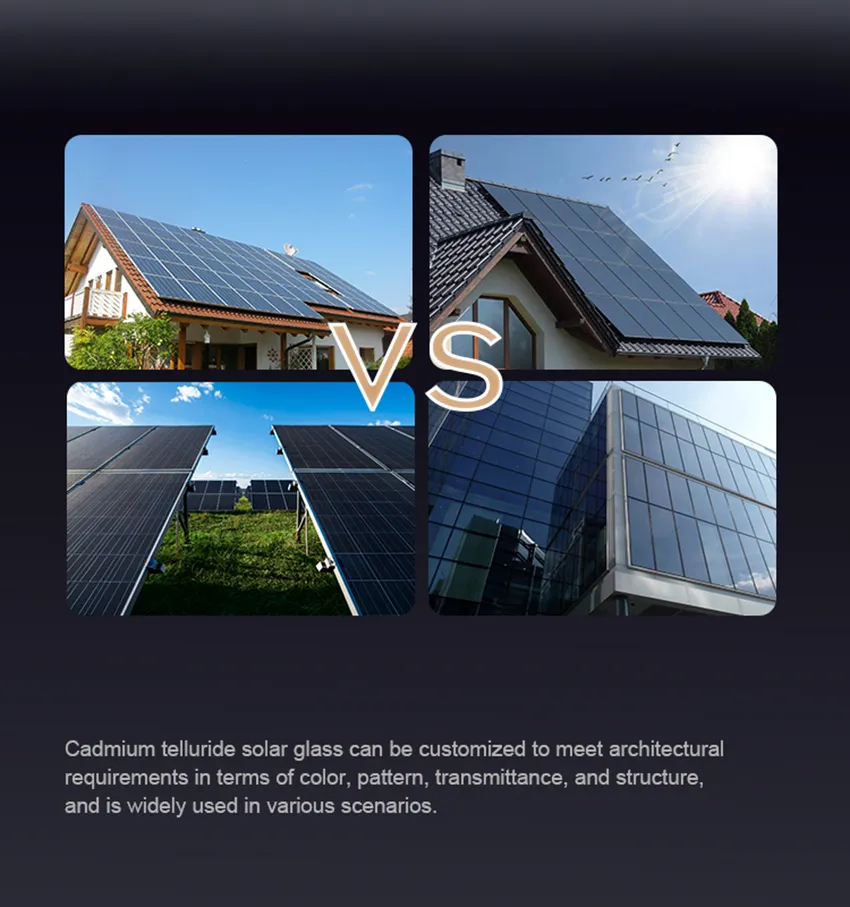

| Custom | 1000-4000mm available | Special Curtain Walls / Landscapes | 6-20mm / 10%-60% | Calculated by size |
Specializing in the R&D and production of cadmium telluride (CdTe) and perovskite thin-film solar cells, the focus is positioned on BIPV (Building-Integrated Photovoltaics) and photovoltaic-powered consumer electronics. Applications include centralized systems, urban renewal projects, and renewable energy vehicles.
