| Specifications | Parameter Range | Applicable Scenarios | Thickness / Transmittance | Power Output |
|---|---|---|---|---|

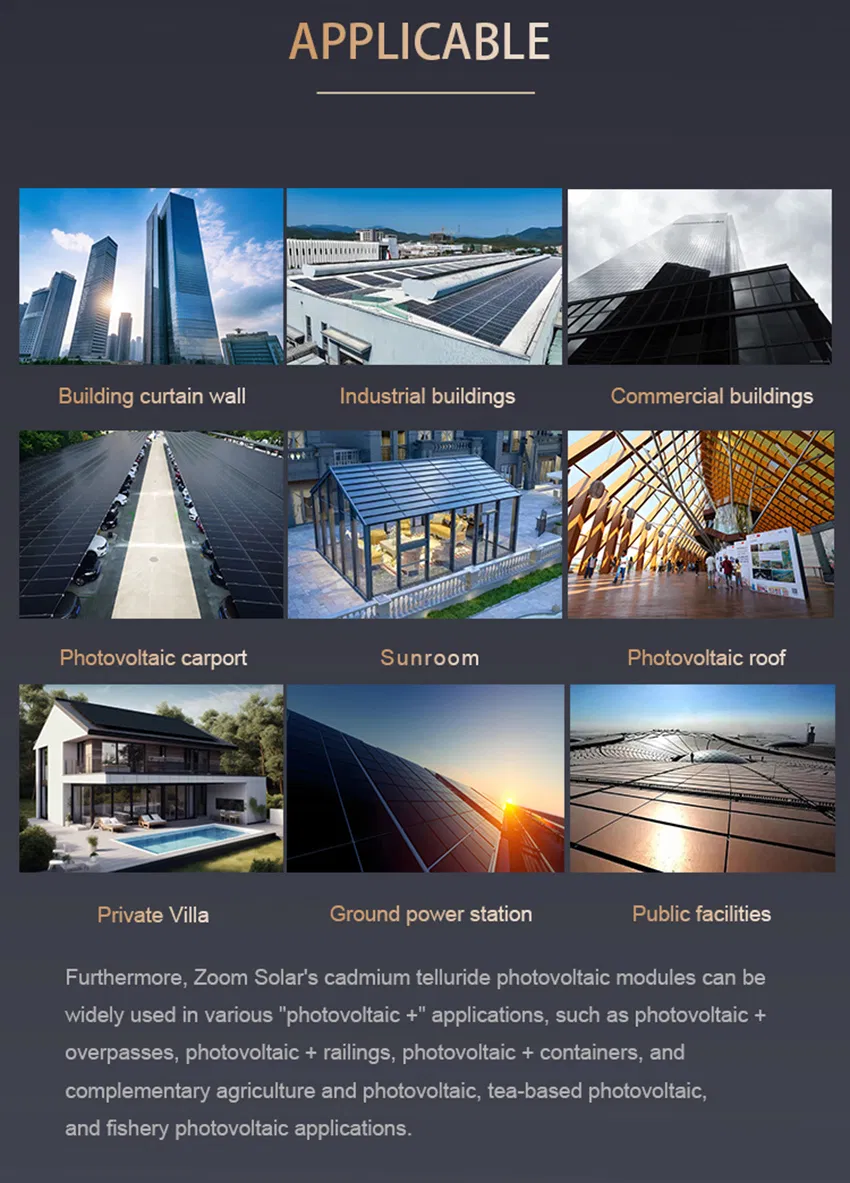

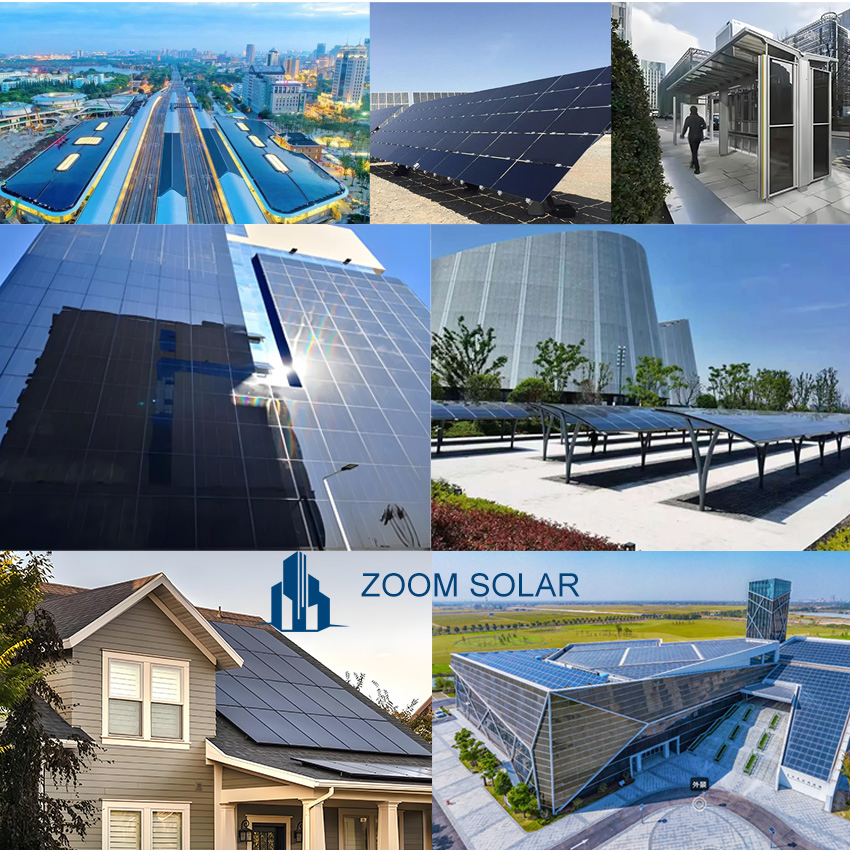

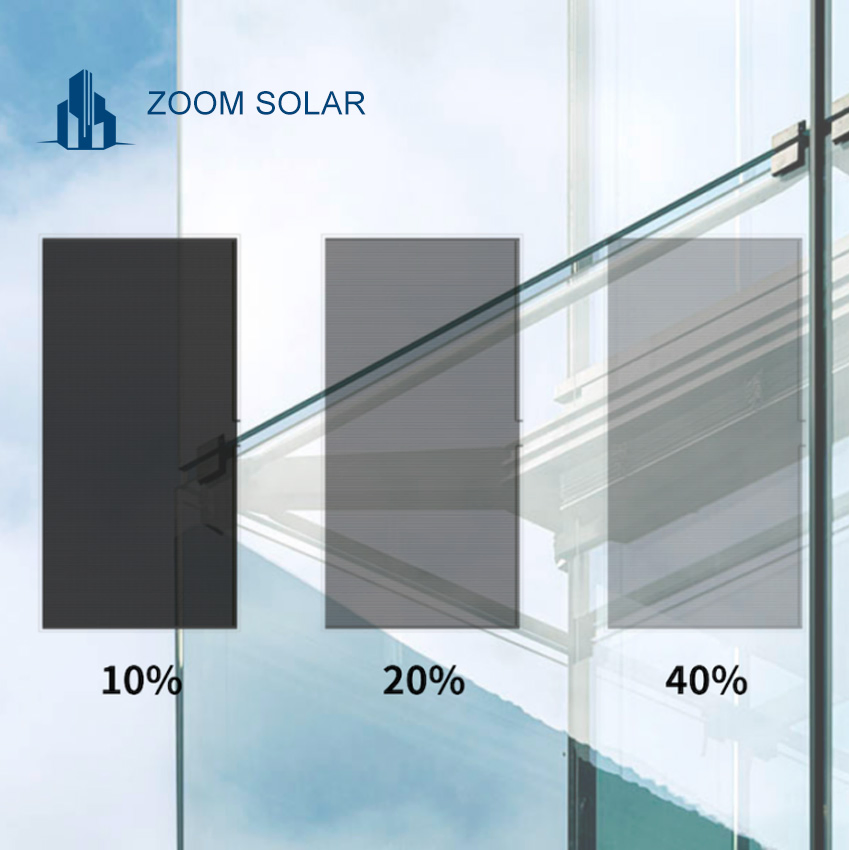

| Home | 1200×600mm / 1600×800mm / 1200×1600mm | Home Roofs / Balcony Railings | 10-12mm / 10%-60% | 100W-300W/unit |
| Commercial | 2400×1200mm / 3000×1500mm / 2300×1215mm | Factory Walls / Large-Scale Power Plants | 22mm / 10%-60% | 500W-1000W/unit |

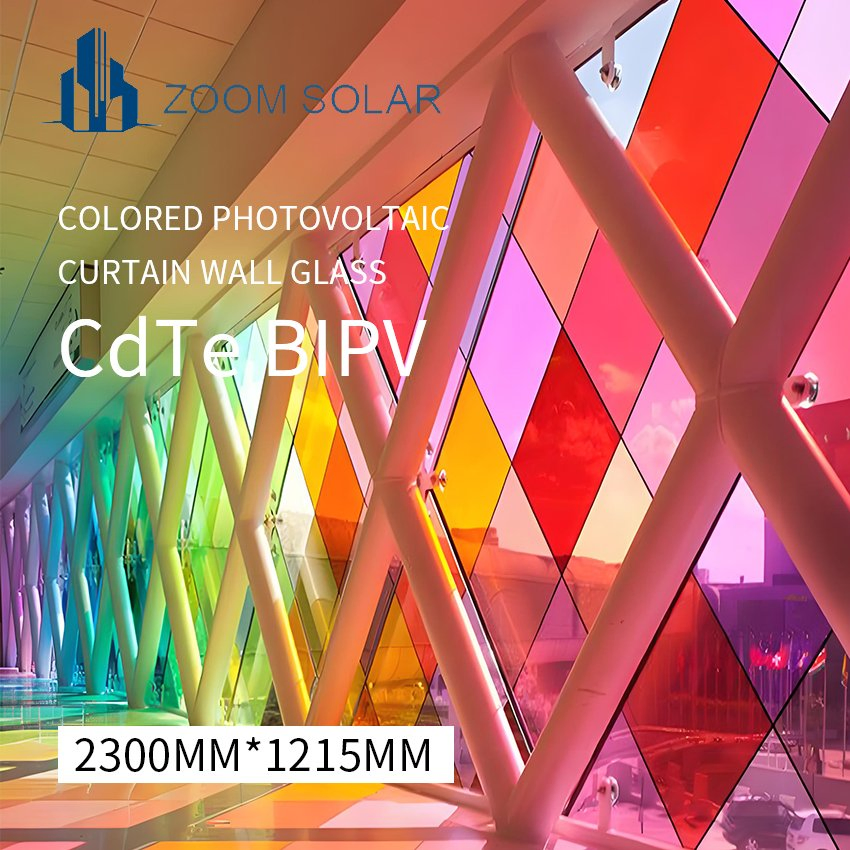

| Custom | Custom sizes from 1000-4000mm available | Special Building Curtain Walls / Landscape | 6-20mm / 10%-60% | Calculated by size |
Consists of five layers: glass substrate, transparent conductive oxide layer (TCO), cadmium sulfide (CdS) window layer, cadmium telluride (CdTe) absorption layer, and back contact/electrode layer.

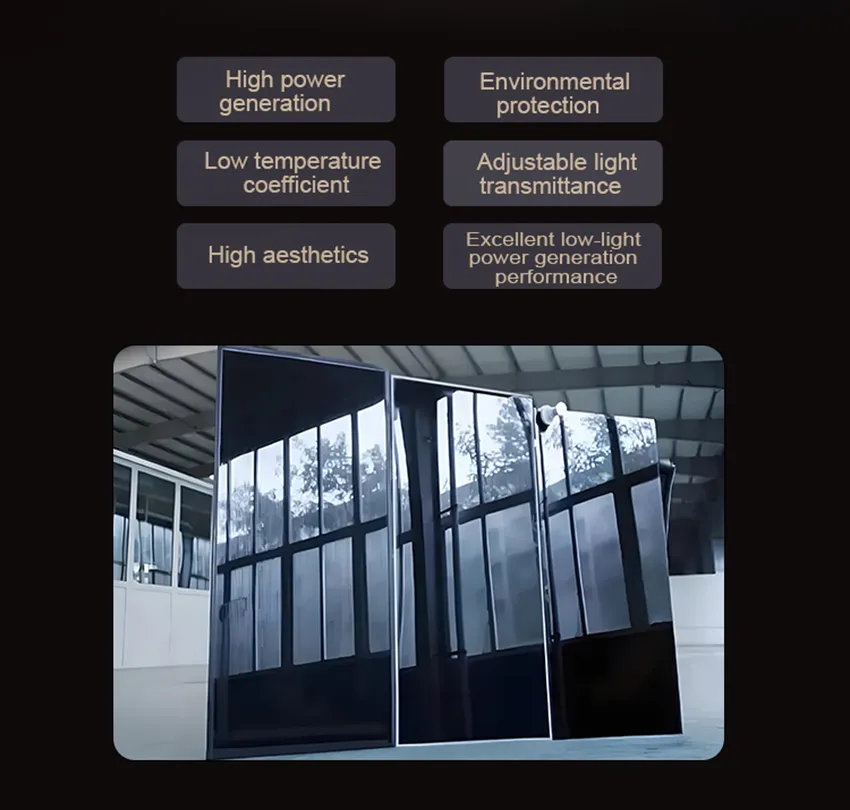

CdTe is a direct bandgap material with excellent absorption. Performance in early morning, evening, or hazy conditions is significantly better than crystalline silicon cells.
The temperature coefficient is about -0.21~0.25%/ºC, roughly half that of crystalline silicon. It generates more power in high-temperature environments.
A 1μm thickness can absorb over 90% of visible light. Theoretical photoelectric conversion efficiency is approximately 28-29%.

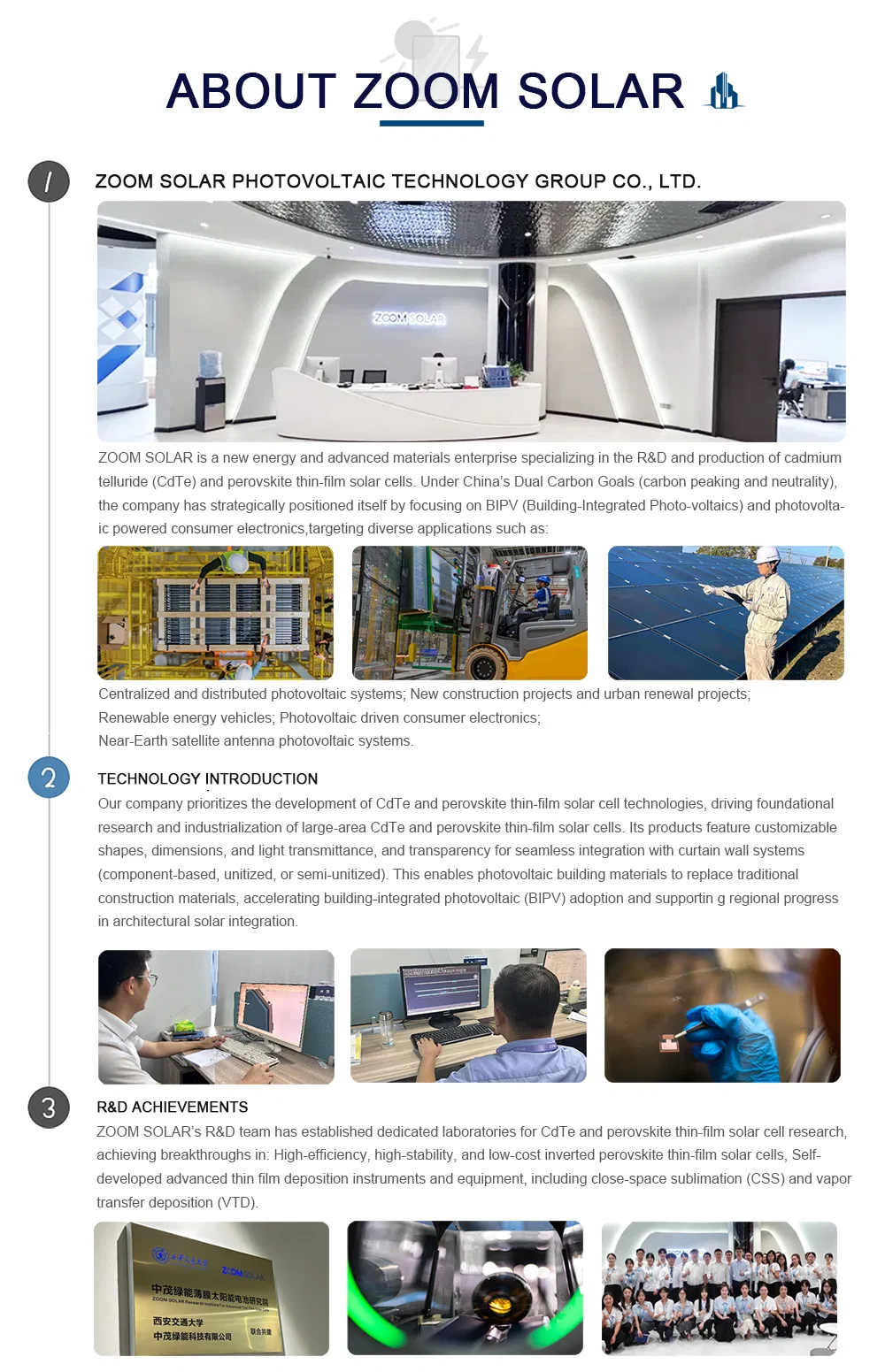

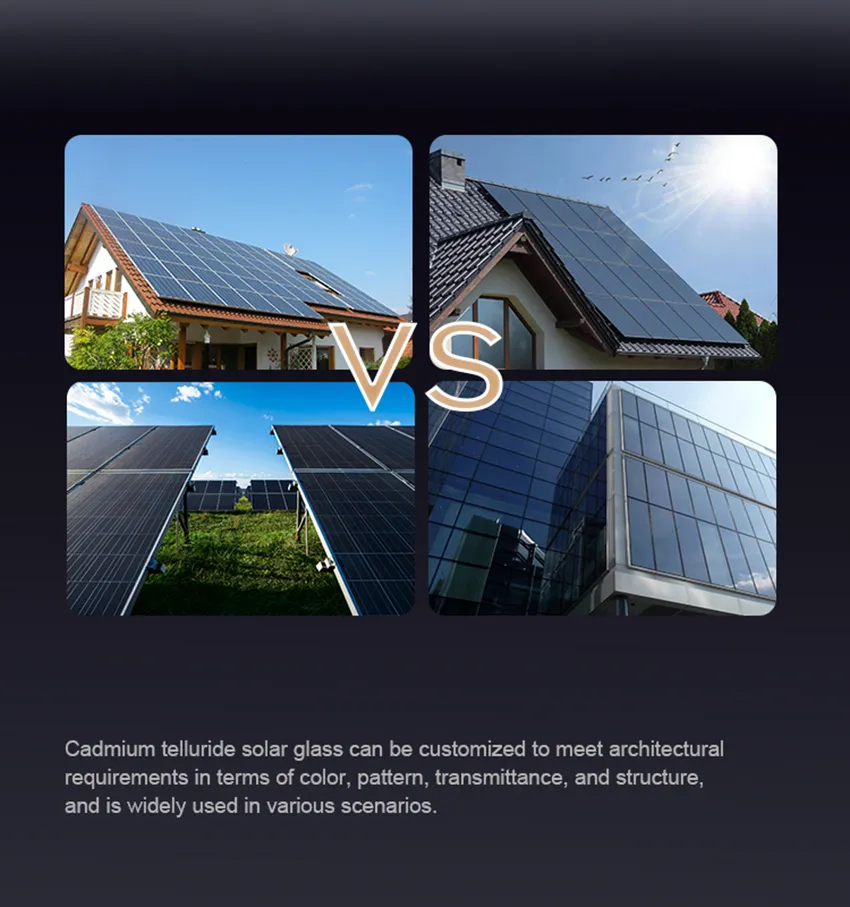

Specializing in cadmium telluride (CdTe) and perovskite thin-film solar cells, focusing on BIPV and photovoltaic-powered consumer electronics. Products feature customizable shapes and light transmittance for seamless integration with architectural systems.
