China Factory 8mm Customized Soundproof Tempered Clear Vacuum Insulated Glass
Certifications: ANSI Z97.1-2015 & CPSP 16CFR 1201(1977); ATI North America; ift Germany; RoHS European Union standards.

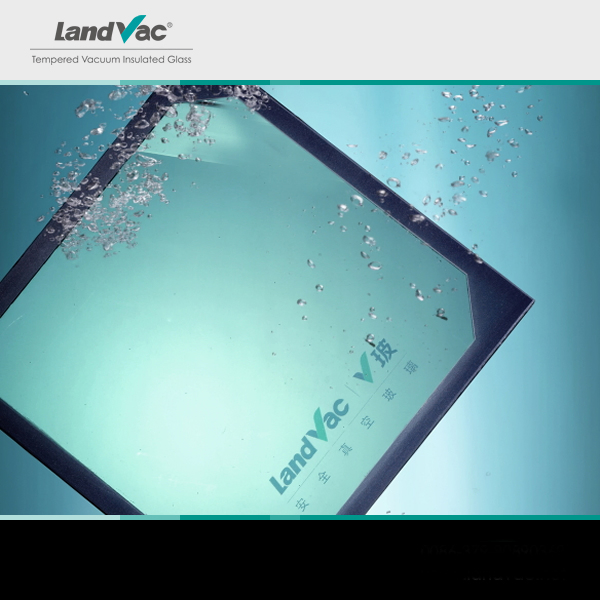

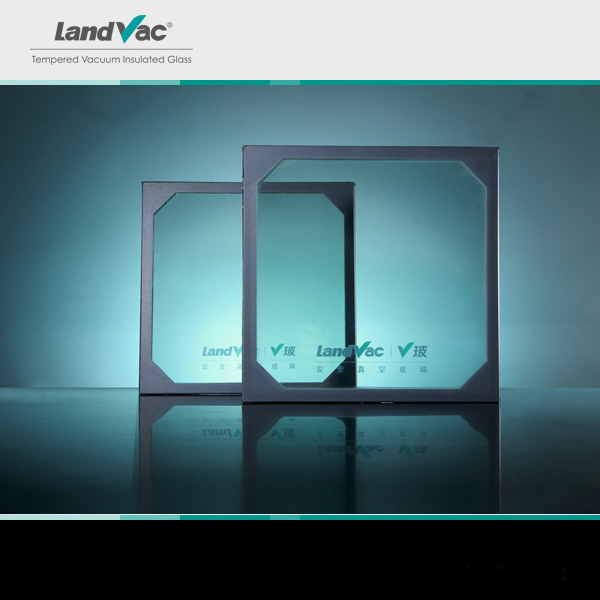

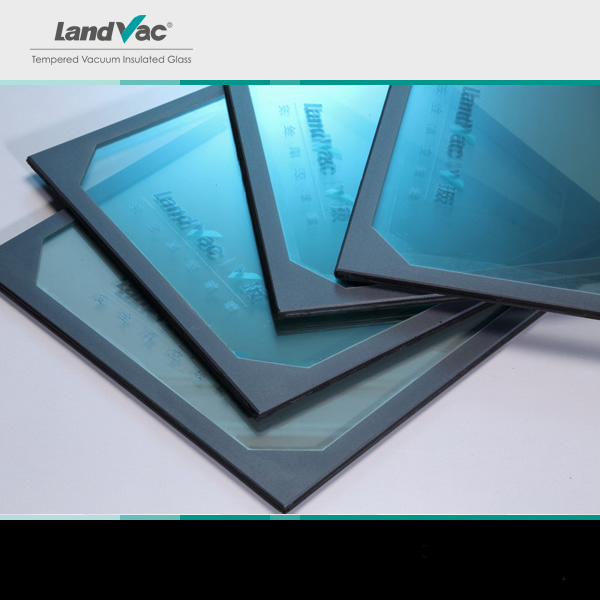

LandVac® is a new generation tempered vacuum insulated glass developed with independent intellectual property rights. Using exclusive low temperature sealing technology, the product retains high strength and safety while offering outstanding thermal and sound insulation.
| Product Type | Structure | Thickness (mm) |
|---|---|---|
| LandVac | 4TL+0.3V+4T | 8.3 |
| Triple Glazing (Plus Insulated) | 4T+12A+4TL+0.3V+4T | 24.3 |

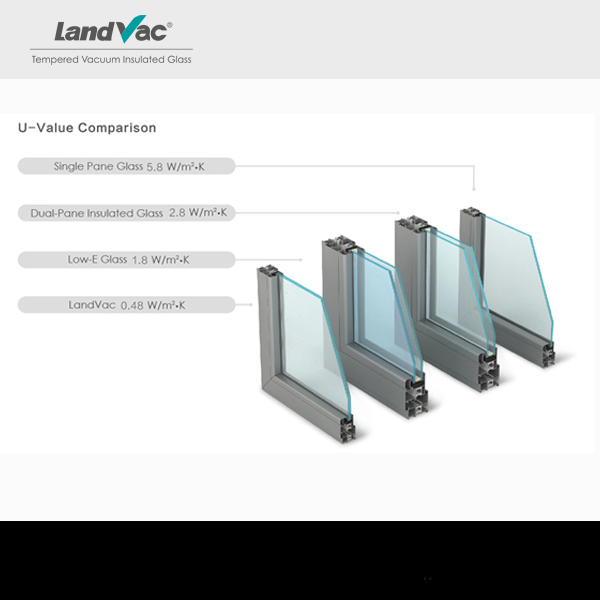

| Product Type | U-value (W/m²K) | SHGC | SC | Sound (dB) |
|---|---|---|---|---|
| LandVac | 0.48 | 0.49 | 0.56 | 39 |
| Triple Glazing | 0.42 | 0.45 | 0.52 | 42 |
* T-Tempered clear; TL-tempered Low-E; V-vacuum; P-PVB; A-air space. Max Size 1500x2500mm.
Tempered Safety Glass: Surface stress exceeds 90MPa, totally meeting safety glass standards. perfectly retains the safety features of tempered glass against impact.

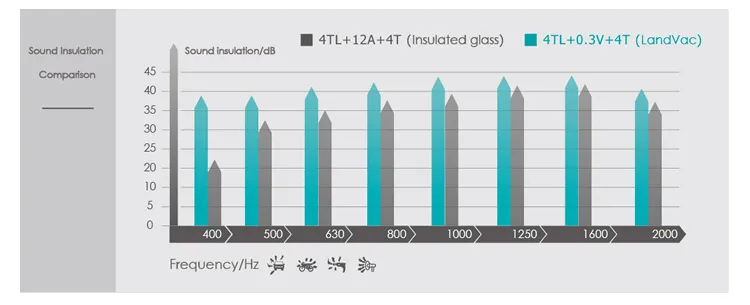

Noise Reduction: Outdoor noise of 75 dB can be reduced by 39 dB. Remarkable soundproofing against traffic and construction noise.

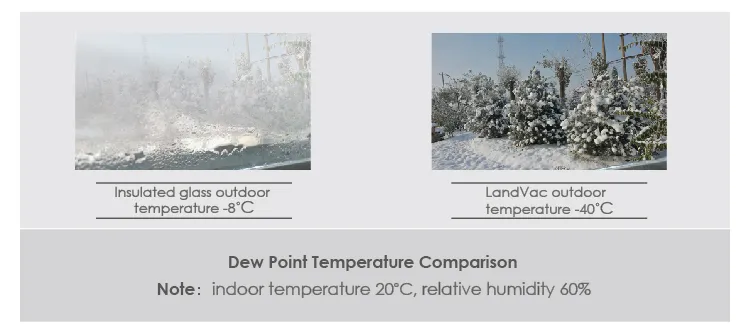

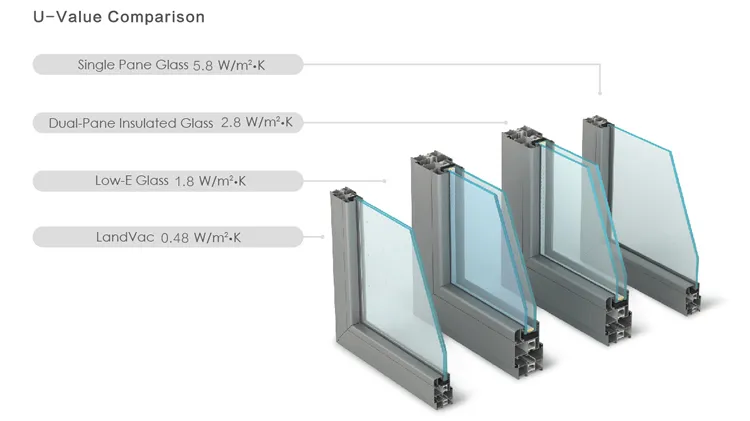

Energy Saving & Dewpoint: Thermal performance is 2 to 4 times better than standard insulated glass. Interior surfaces remain condensation-free even at -40 °C outdoors.
| Low Temp Sealing | Surface stress exceeds 90MPa, retaining safety features of tempered glass against impact. |
| Flexible Edge Sealing | Adopts flexible materials with higher thermal resistance against expansion or contraction. |
| High Vacuum Sealing | Sealed in a UHV chamber to maintain consistent high degree vacuum between layers. |
| Flat Sealing | Sealing does not protrude above the glass surface for easy transportation and elegant appearance. |
| Intelligent Automation | Continuous production line minimizes human intervention and ensures quality consistency. |
The specialized R&D team has developed the tempered vacuum insulated glass production line, breaking the myth that vacuum glass cannot be tempered. This commercialization contributes significantly to environmental protection.
Approved by national safety glass inspection centers, LandVac thermal performance meets the highest national standard Level 10.
