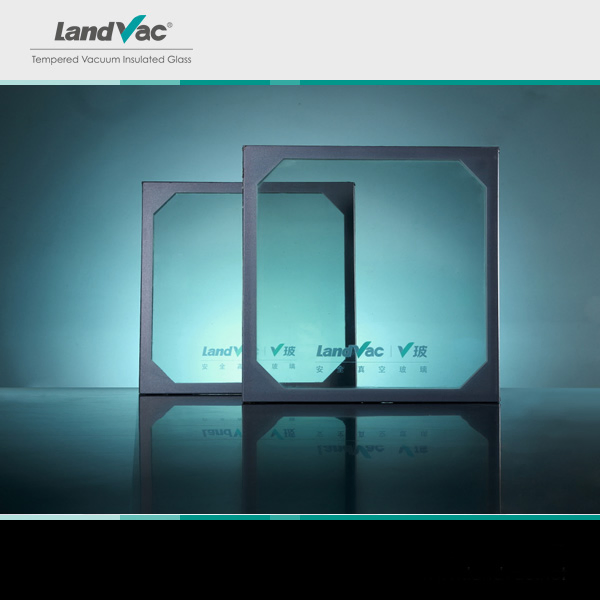

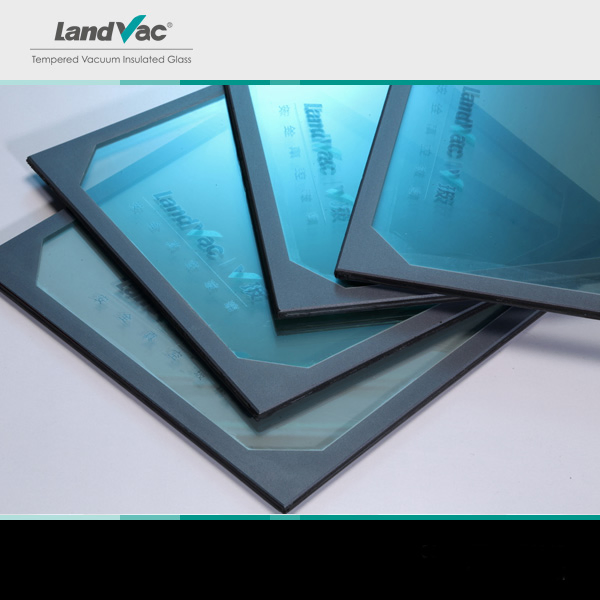

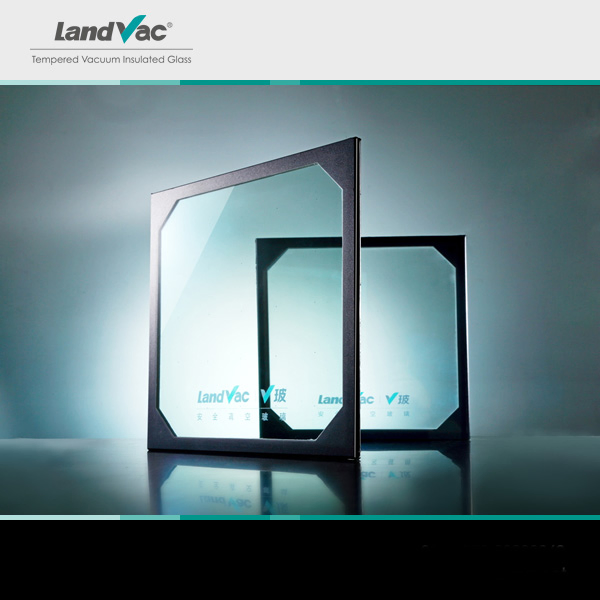

LandVac is a new generation tempered vacuum insulated glass. Using exclusive low-temperature sealing technology, the product offers outstanding features in thermal and sound insulation while retaining high levels of strength and safety.

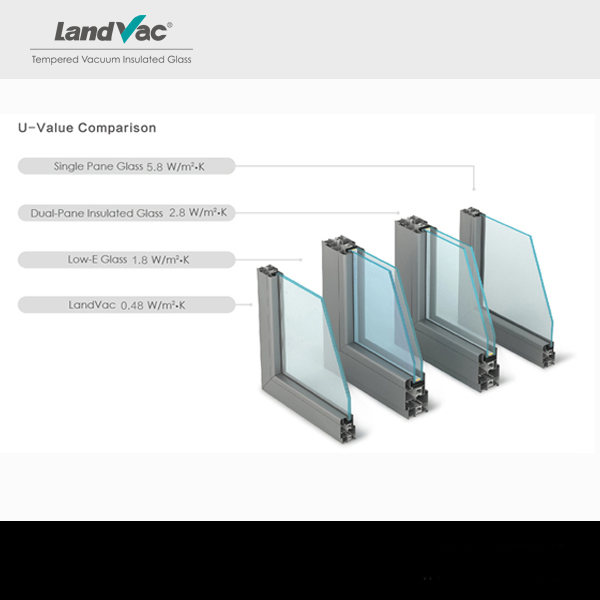

U-Value as low as 0.4W/(m²·K). An 8.3mm thick LandVac provides better insulation than a 1.5m thick brick wall.
Weighted sound reduction index exceeds 36dB, effectively blocking traffic and construction noise.
Remains free of condensation even when temperatures fall below -70°C, maintaining exceptional transparency.
Surface stress exceeds 90MPa, meeting tempered glass standards with wind resistance up to ±7200Pa.

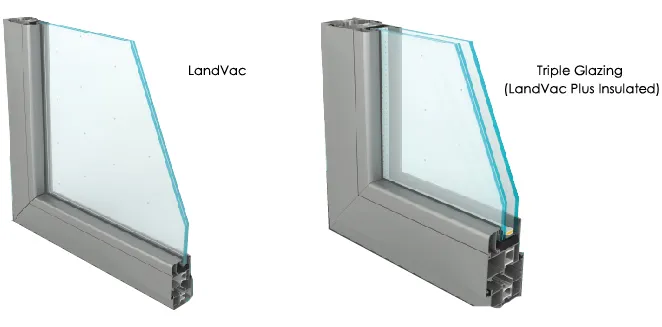

| Product Type | U-value (W/m²K) | SHGC | SC | Sound Isolation (dB) | Thickness (mm) |
|---|---|---|---|---|---|
| LandVac | 0.48 | 0.49 | 0.56 | 39 | 8.3 |
| Triple Glazing | 0.42 | 0.45 | 0.52 | 42 | 24.3 |

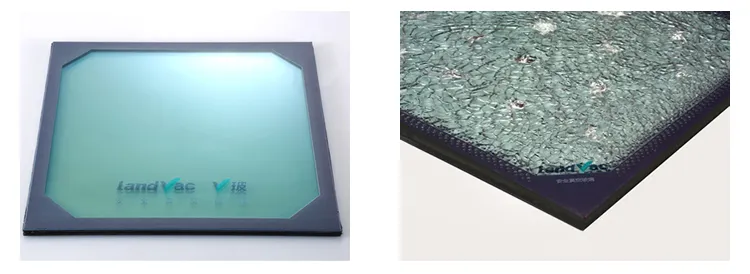

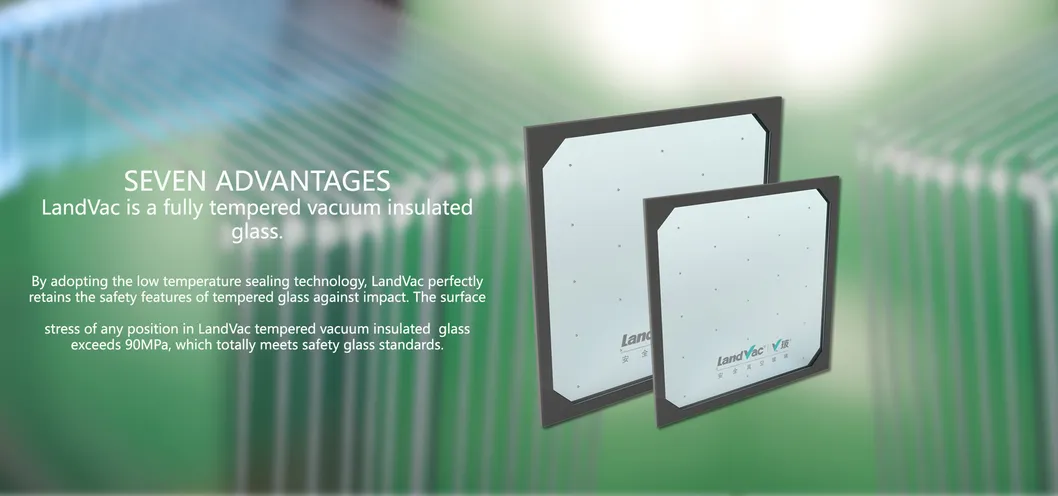

Retains safety features of tempered glass by preventing annealing during the sealing process. Surface stress exceeds 90MPa.
Adopts materials with higher resistance against thermal expansion and contraction, preventing failure in harsh environments.

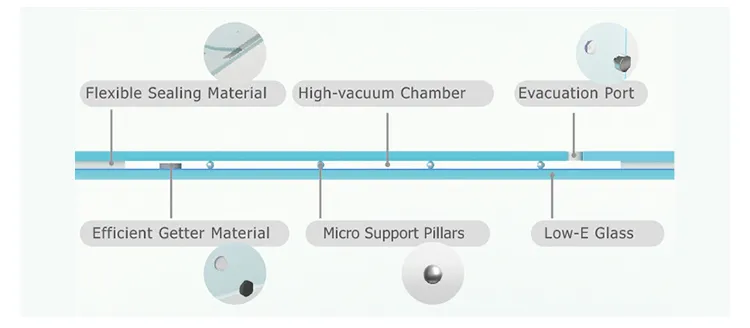

Sealed in a UHV chamber to maintain consistent high-degree vacuum between layers for long-term durability.
The sealing does not protrude above the glass surface, ensuring elegant mounting in window frames.

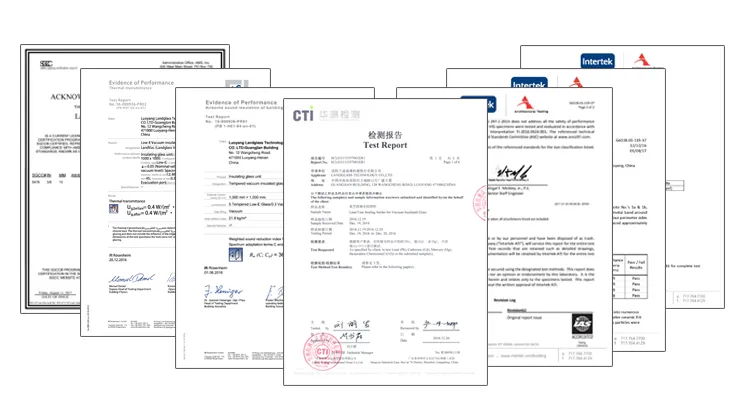

Approved by authoritative third parties, meeting ANSI Z97.1 impact testing, ift Germany standards, and RoHS directives. The thermal insulation performance reaches the highest national standard (Level 10).
