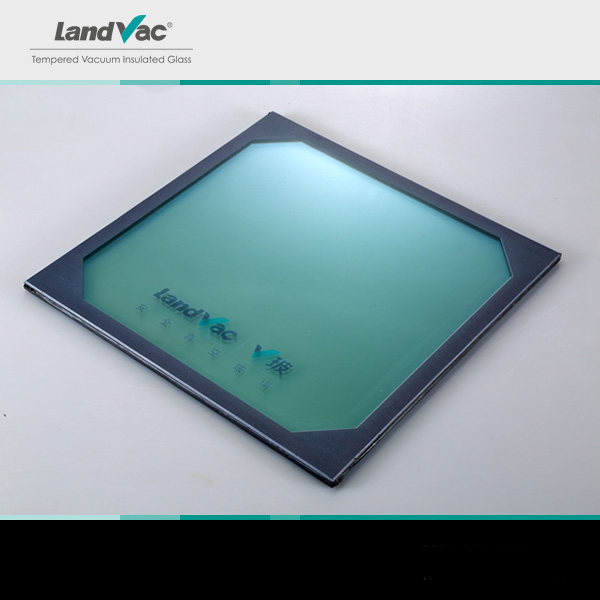

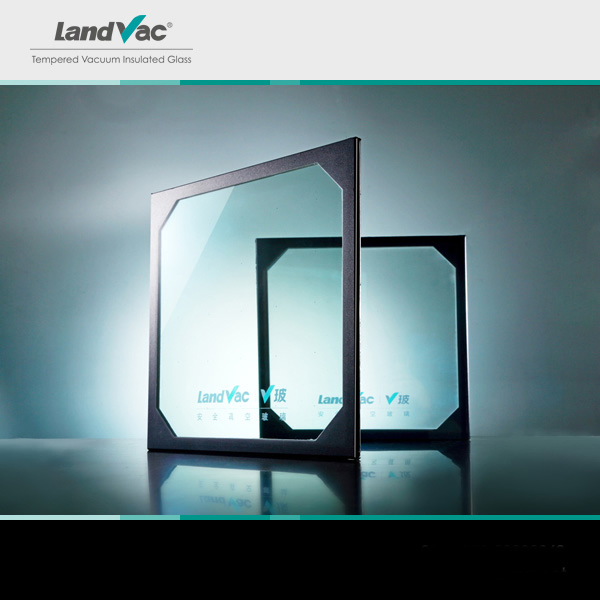

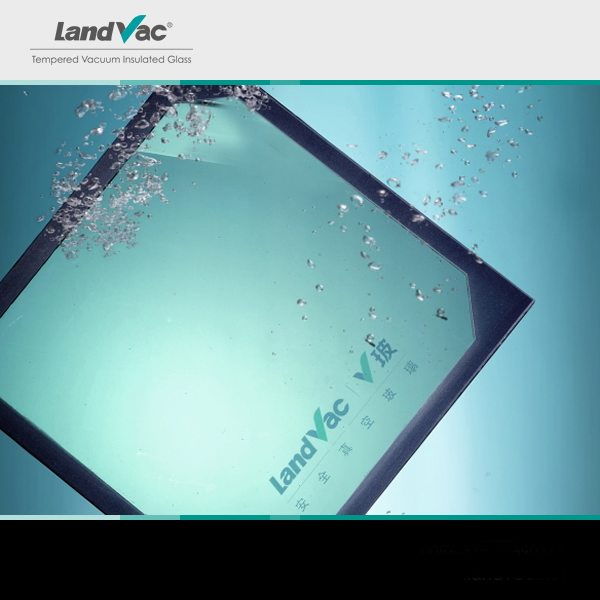

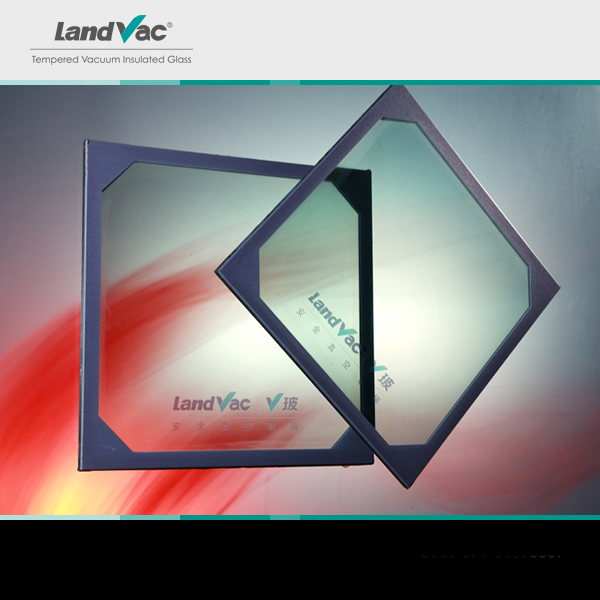

Customized Soundproof Tempered Clear Vacuum Insulated Glass offers an all-new generation of tempered vacuum insulation. Using exclusive low-temperature sealing technology, the product delivers outstanding features in thermal and sound insulation while retaining high levels of glass strength and safety.
U-Value as low as 0.4W/(m²·K). An 8.3 mm thick LandVac has better thermal insulation than a 1.5m thick brick wall.

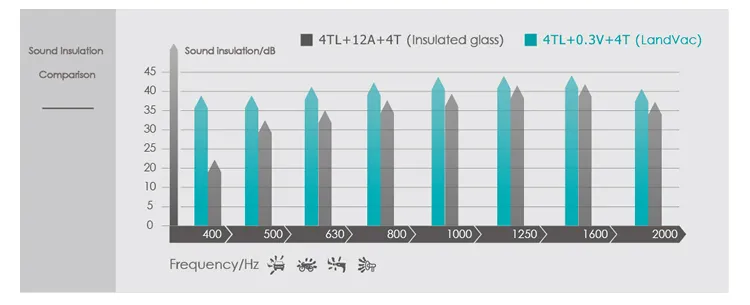

Weighted sound reduction index exceeds 36dB, making busy downtown environments as quiet as a library.

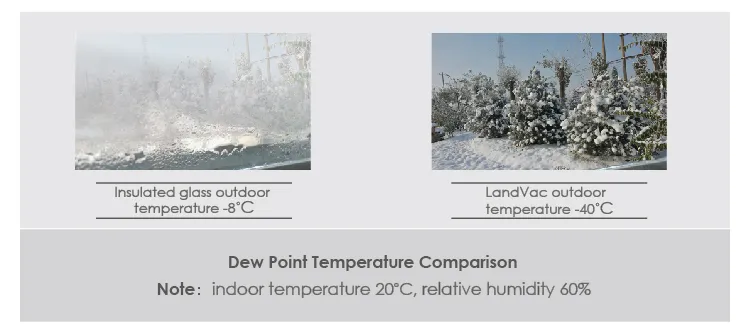

Maintains transparency even when temperatures fall below -70 °C, ensuring exceptional dew point performance.
Surface stress meets tempered glass standards with wind resistance up to ±7200Pa.
| Product Type | Structure | Thickness (mm) |
|---|---|---|
| LandVac | 4TL+0.3V+4T | 8.3 |
| Triple Glazing (Plus Insulated) | 4T+12A+4TL+0.3V+4T | 24.3 |
| Product Type | U-value (W/m²K) | SHGC | SC | Sound Isolation (dB) |
|---|---|---|---|---|
| LandVac | 0.48 | 0.49 | 0.56 | 39 |
| Triple Glazing | 0.42 | 0.45 | 0.52 | 42 |
* T-Tempered clear; TL-tempered Low-E; V-vacuum; A-air space. Data based on U.S. ASHRAE standards.
Retains safety features with surface stress exceeding 90MPa, resolving the challenge of tempered glass annealing during sealing.
Uses flexible materials for higher resistance against thermal expansion and contraction, preventing sealing failure from temperature differences.
Sealed in a UHV chamber to maintain consistent high-degree vacuum for remarkable durability.
Ensures the seal does not protrude, allowing for easy transportation and elegant mounting in window frames.
Continuous production line minimizes human intervention and ensures consistent high quality.

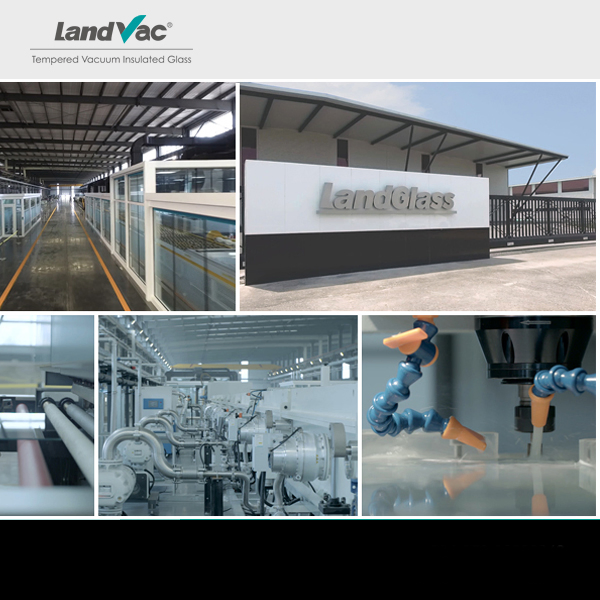

Our production facilities utilize advanced technology to manufacture high-performance vacuum insulated glass. LandVac has been approved by authoritative third-party supervision centers, achieving Level 10 thermal insulation and Level 4 sound insulation standards.
