China Factory 8mm Customized Soundproof Tempered Clear Vacuum Insulated Glass
U-Value as low as 0.4W/(m²·K). A 8.3 mm thick LandVac has better thermal insulation effect than a 1.5m thick brick wall.
With its weighted sound reduction index exceeding 36dB, LandVac makes rooms in downtown quiet like a library.
Maintains transparency even when temperatures fall below -70 °C, ensuring clarity in buildings and freezers.
Surface stress meets tempered glass standards, with wind resistance up to ±7200Pa.
LandVac® is a new generation tempered vacuum insulated glass with outstanding features in thermal and sound insulation while retaining high levels of strength and safety. It leads the trend in green building and upscale home appliances.
| Product Type | Structure | Thickness (mm) |
|---|---|---|
| LandVac | 4TL+0.3V+4T | 8.3 |
| Triple Glazing (Plus Insulated) | 4T+12A+4TL+0.3V+4T | 24.3 |
| Product Type | U-value (W/m²K) | SHGC | SC | Isolation (dB) | Max Dimension (mm) |
|---|---|---|---|---|---|
| LandVac | 0.48 | 0.49 | 0.56 | 39 | 1500x2500 |
| Triple Glazing | 0.42 | 0.45 | 0.52 | 42 | 1500x2500 |
* T-Tempered clear glass; TL-tempered Low-E; V-vacuum; P-PVB; A-air space. Performance data based on U.S. ASHRAE standards.

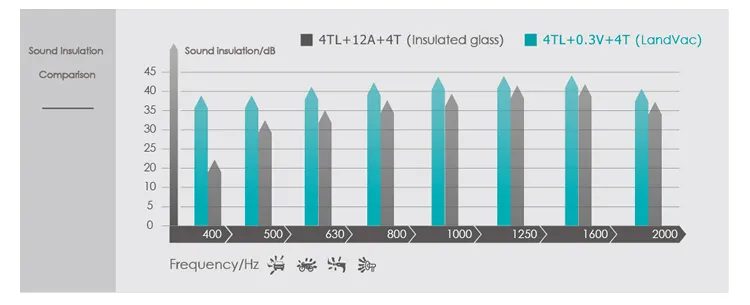

The surface stress of LandVac exceeds 90MPa, meeting safety glass standards. It effectively blocks medium and low-frequency noises. An outdoor noise of 75dB can be reduced by 39dB, which is significantly better than the 29dB reduction offered by regular laminated glass.

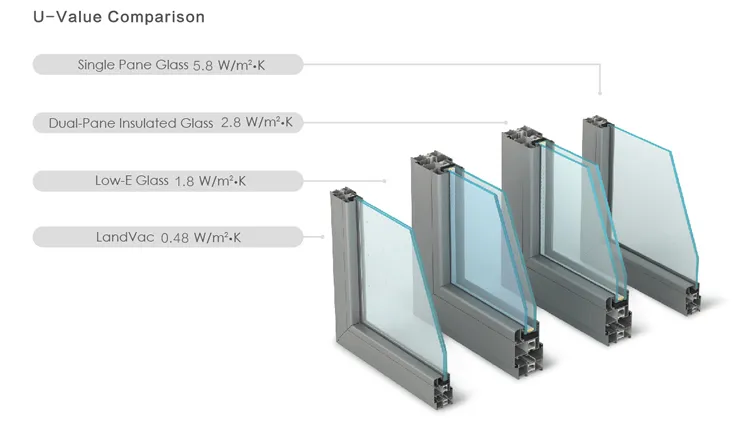

Thermal insulation is 2 to 4 times better than traditional insulated glass. With high-efficiency getter material, LandVac sustains superior performance for over 25 years even in harsh environments.
| Technology | Description |
|---|---|
| Low Temperature Sealing | Retains the safety features of tempered glass with surface stress exceeding 90MPa. |
| Flexible Edge Sealing | High resistance against thermal expansion and contraction, preventing sealing failure. |
| High Vacuum Sealing | Maintains consistent high degree vacuum in a UHV chamber for long-term durability. |
| Flat Sealing | Sealing does not protrude, ensuring safe transport and elegant mounting. |
| Intelligent Automation | Minimized human intervention ensures product consistency and high quality. |
Doors, windows, curtain walls, and skylights for commercial and residential green buildings.
Ideal for freezers, wine cabinets, and display cases due to condensation-free properties.
Observation windows for quiet rooms and extreme temperature laboratories.
Flat window materials for automobiles, high-speed rail, aircraft, and vessels.
LandVac tempered vacuum insulated glass has been approved by authoritative third parties. Results show thermal insulation at the highest national level (Level 10) and sound insulation at Level 4.
