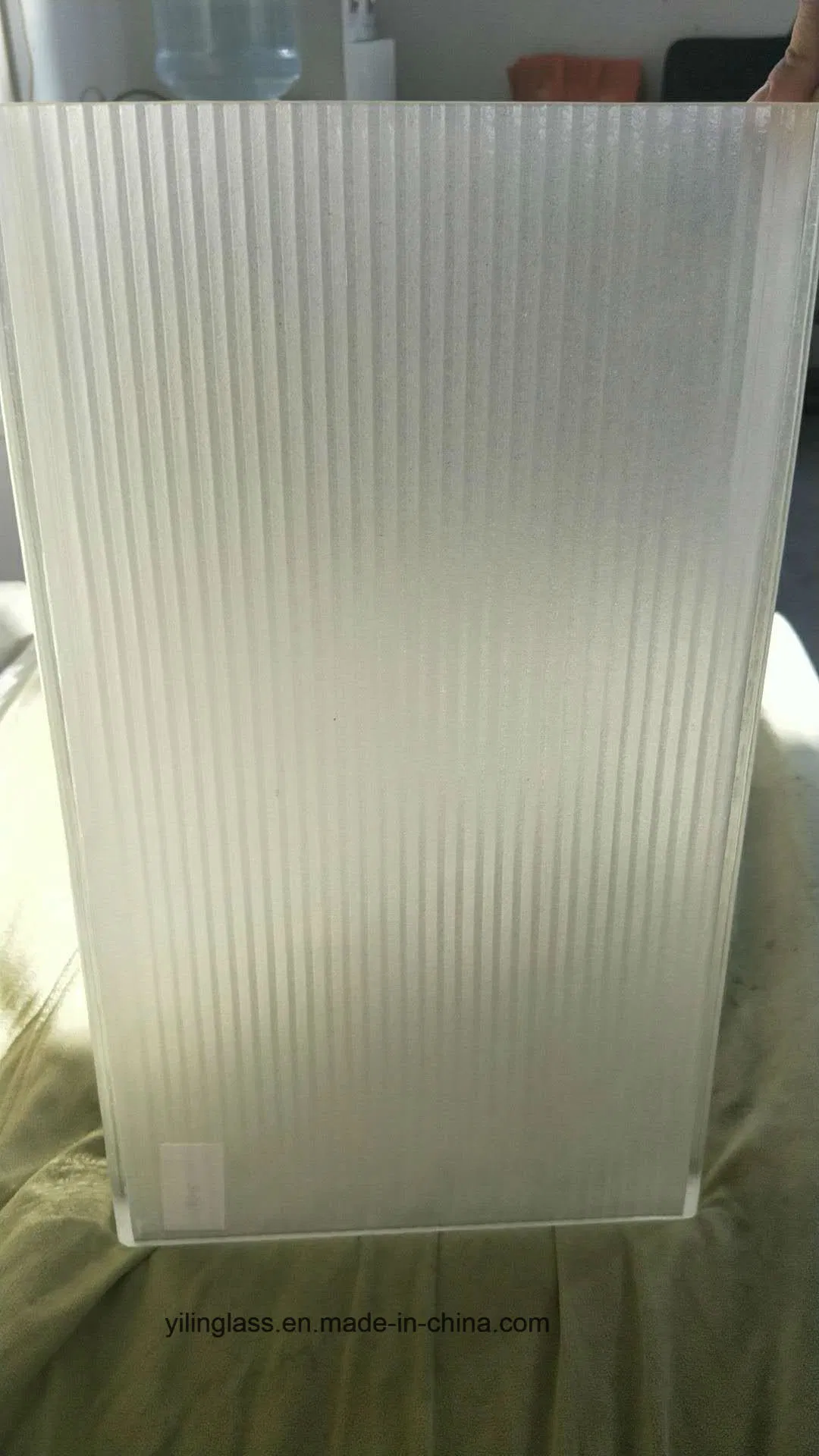

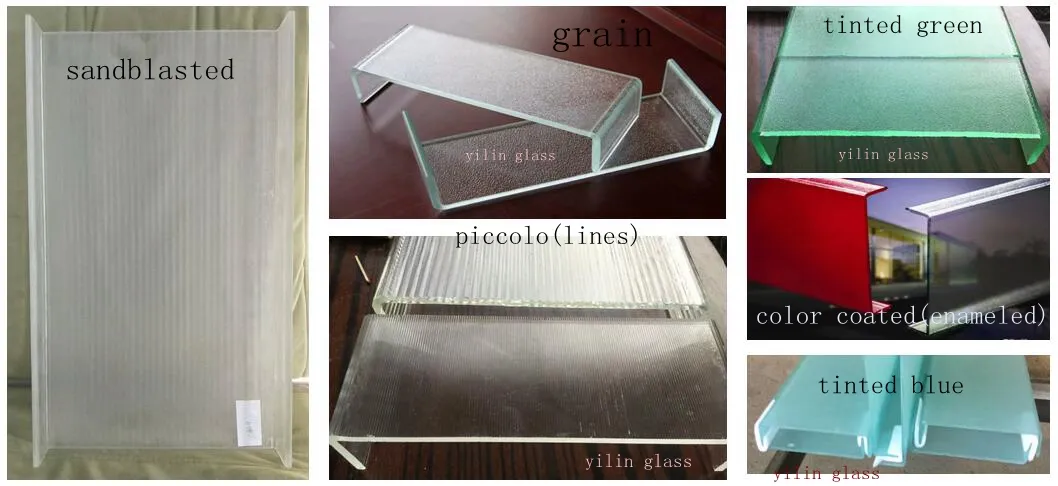

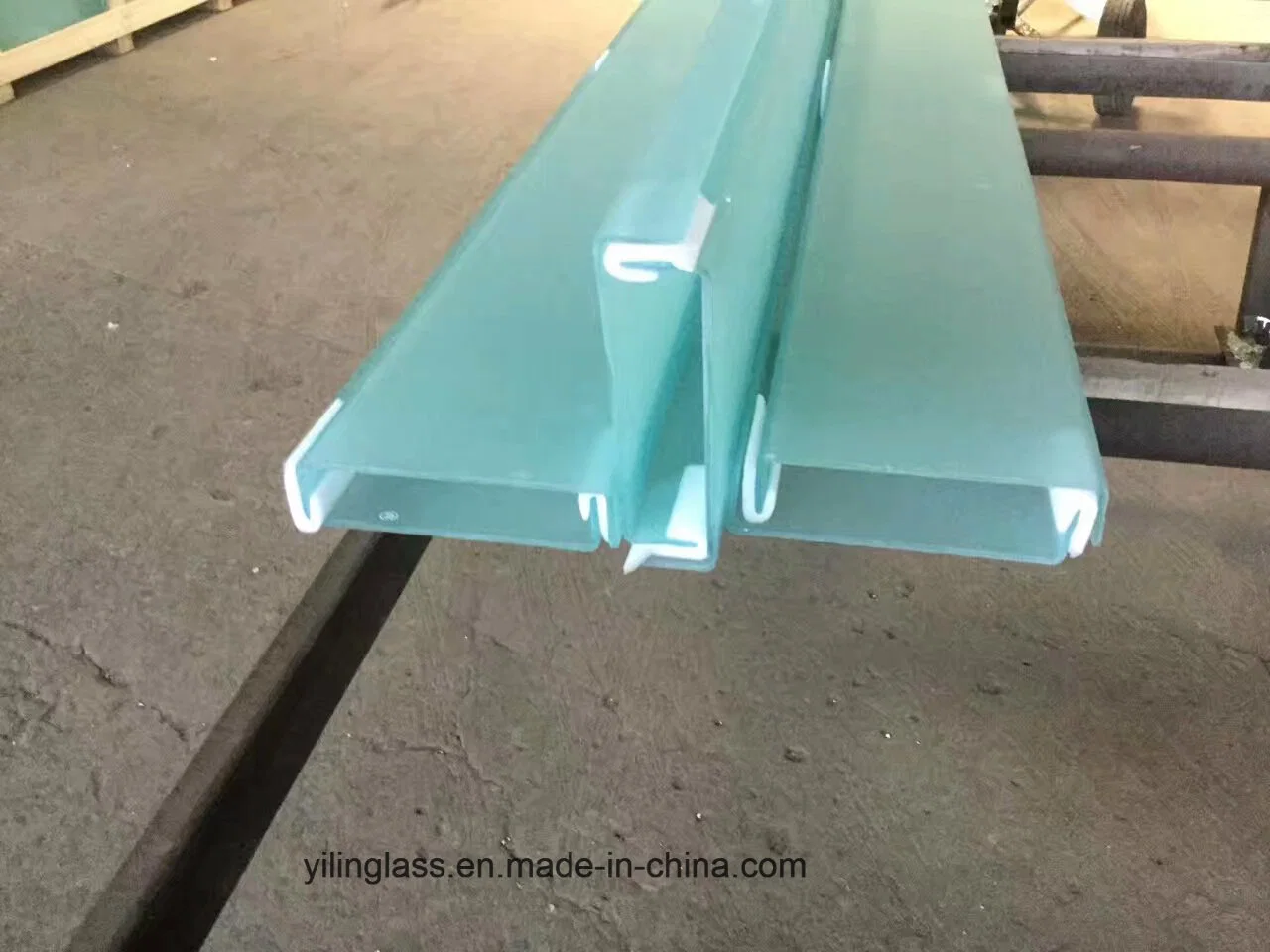

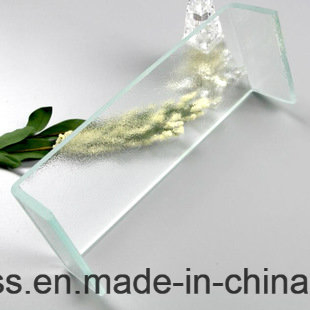

Tempered & Translucent U Shaped Glass are sandblasted or frosted or patterned (line, pear etc.) firstly and then undergo tempering processing. The tempering process for channel glass handles lengths up to 20' using custom-constructed tempering ovens exclusively for three-dimensional channel glass.
Tempered U channel glass is annealed channel glass that has undergone a second heat treatment to raise compression to 10,000 psi or greater, making it three to five times stronger than standard glass.
🛡️
Superior Strength: Up to 5 times stronger than ordinary glass of the same thickness.
🔇
Acoustic Performance: Excellent soundproof properties for building exteriors.
🌡️
Thermal Resistance: More resistant to sudden changes in temperatures and thermal stress.
✨
Light Diffusion: Rough sandblasted exterior face diffuses light for excellent personal space privacy.
✅
Safety First: Shatters into small, harmless pellets (dicing) to reduce injury risk.
🏗️
Load Resistance: Greater tolerance of repetitive load variations before fracture occurs.

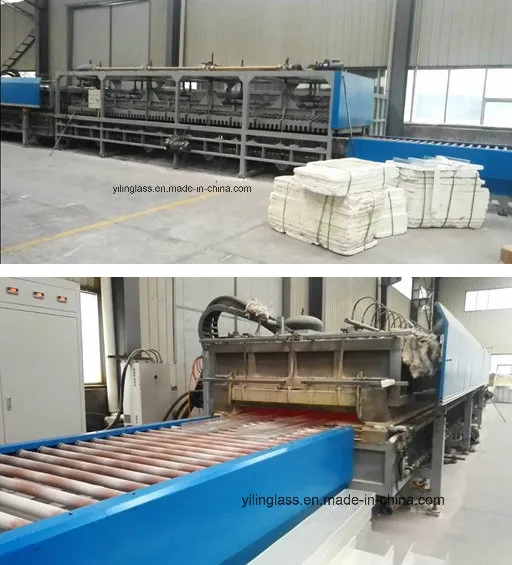

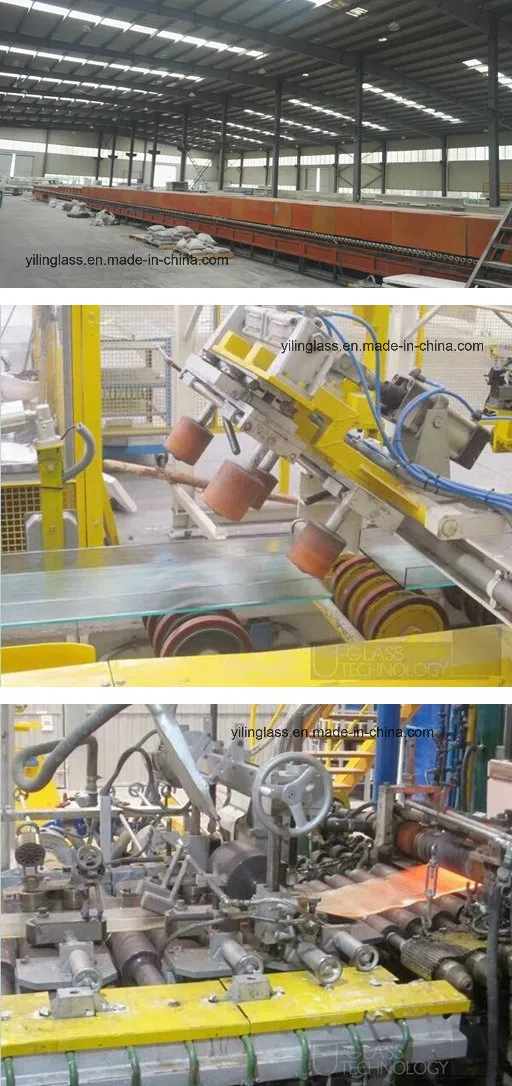

Our tempering machinery and procedures yield dimensionally consistent glass. Tempered channel glass is recognized by its break pattern—relatively small, harmless fragments. This phenomenon, called "dicing," markedly reduces the likelihood of injury as there are no jagged edges or sharp shards.
With more than 20 years of experience in China, we specialize in U glass manufacturing, providing one-stop solutions including design, fabrication, and installation guidance. Safety and reliability are our primary focus for all customized glass products.
Frequently Asked Questions
1. What makes Tempered U Glass safer than regular glass?
Tempered U glass is heat-treated to raise its compression. If it breaks, it shatters into hundreds of tiny, blunt pellets instead of sharp shards, significantly reducing the risk of injury.
2. How strong is U profile glass compared to standard glass?
It is three to five times stronger than annealed (ordinary) glass of the same thickness, providing much greater resistance to impact and repetitive loads.
3. What is the maximum length available for U channel glass?
We can produce U channel glass with a maximum length of up to 12 meters (approximately 39 feet), suitable for large-scale building facades.
4. Does U glass provide privacy while allowing light through?
Yes. Translucent, sandblasted, or frosted finishes diffuse the light, offering excellent privacy for personal spaces while maintaining natural illumination.
5. Can the glass handle extreme temperature changes?
Yes, the tempering process makes the U shaped glass highly resistant to sudden temperature variations and thermal stress compared to regular glass.
6. What building applications is this glass suitable for?

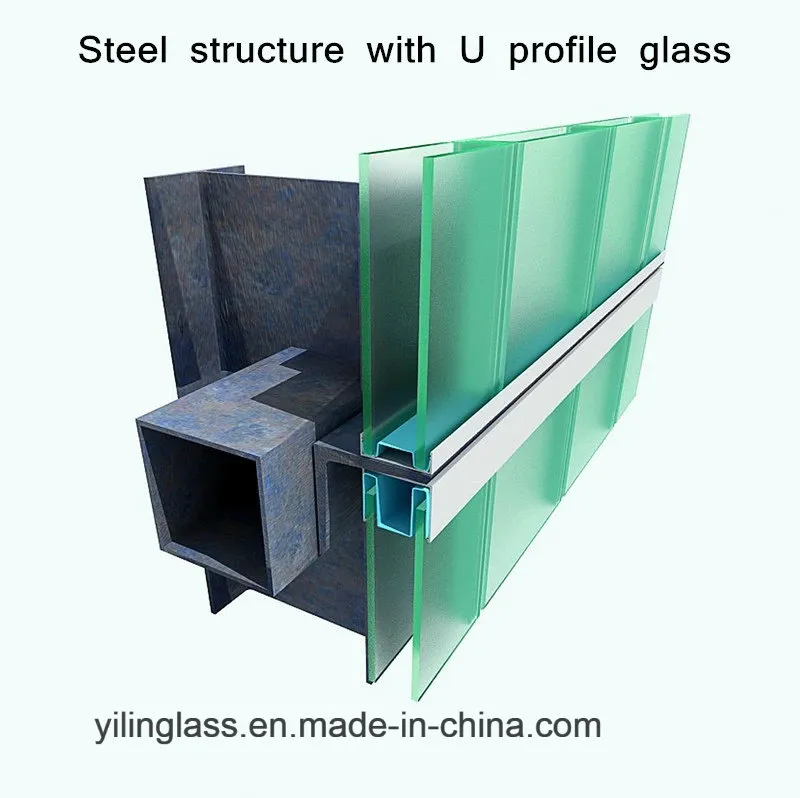

It is ideal for building exteriors, glass curtain walls, windows, doors, sunrooms, and railings, offering both thermal function and structural aesthetic.
