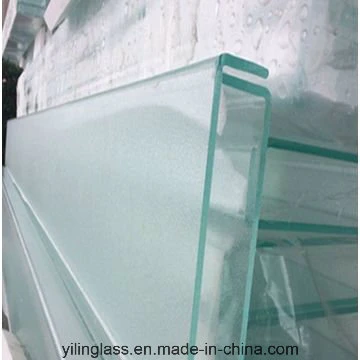

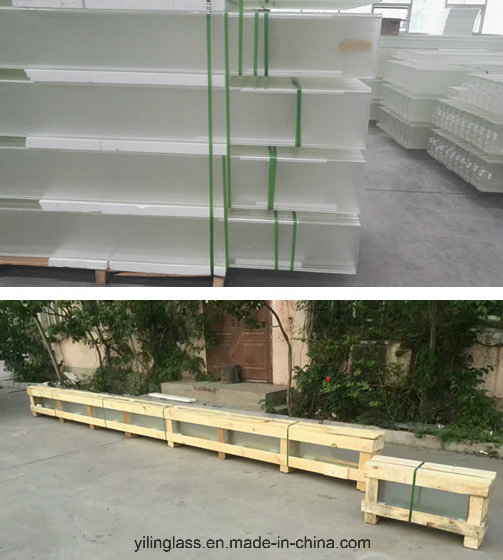

Toughened Frosted U Channel Glass

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

u59

Type

U Profile Glass

Structure

U Shape

Moh's Hardness

Function

Thermal Function

Transparency

Translucent or Clear

Processing Method

Molding

Color

Clear

Capacity

200 Tons/Day

Product Description

Discover U Glass (U Channel Glass / U Profile Glass)

U glass is produced through calendaring and forming, characterized by its "U" shape in cross-section. It offers excellent light transmittance, superior heat insulation, and high mechanical strength. This unique architectural glass provides decorative effects while saving on metal profiles compared to standard glass installations. Sandblasting options are available for light diffusion, frosted aesthetics, and privacy.

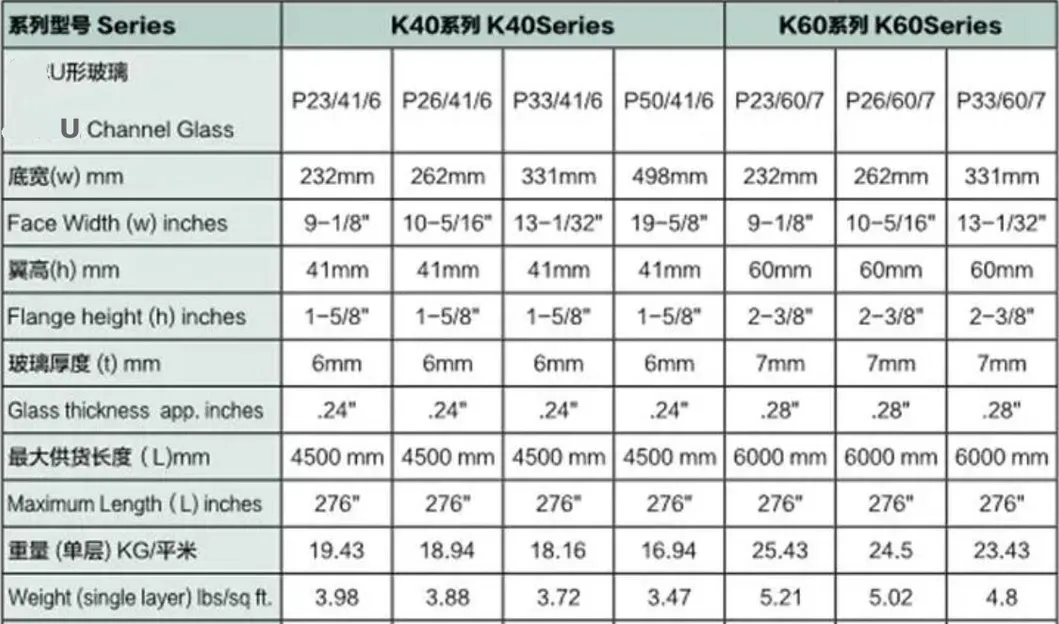

Technical Specifications

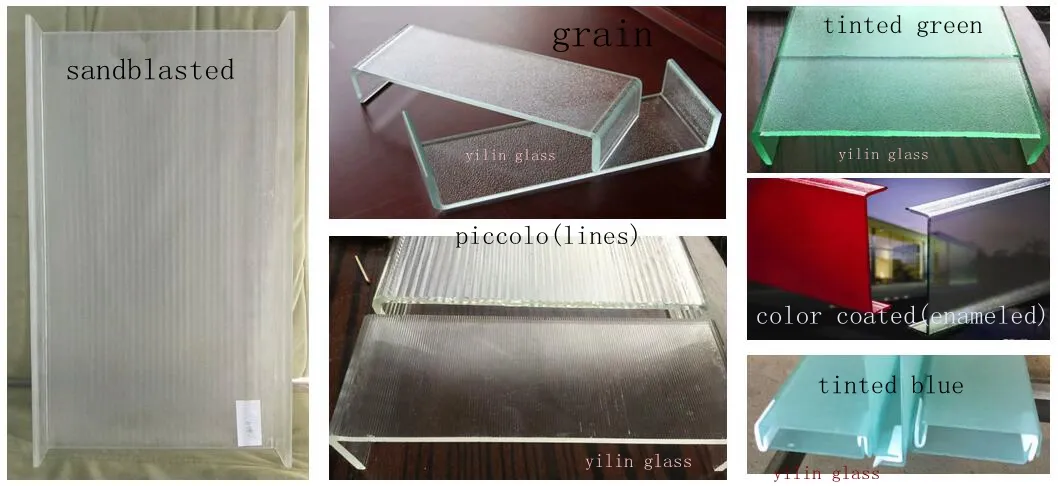

Surface Treatments & Options

Pear-grain: Hammered pearl texture for moderate translucency and excellent light scattering.
Ice: An organic, heavily obscuring texture ideal for privacy.
Piccolo: Available in thin or thick lines.
Ultra Clear (Low Iron): Reduced iron content for a nearly colorless, crystal-clear appearance.
Tinted & Enameled: Ceramic fritted or color coated options available in various RAL/Pantone colors.

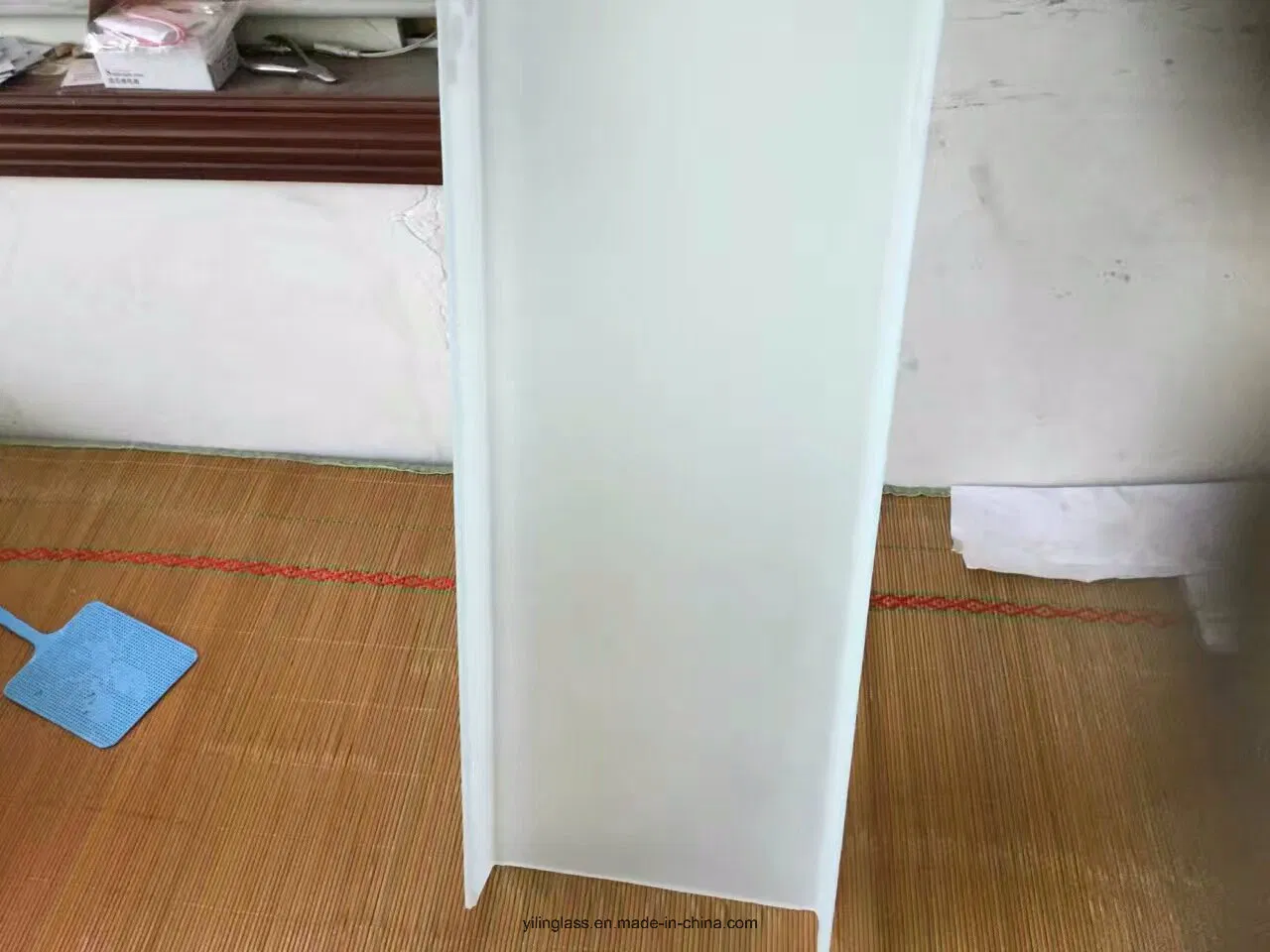

Sandblasted: Frosted aesthetic with protective coating to reduce fingerprinting.

Accessories

Available with high-quality PVC and aluminum alloy profiles for installation.

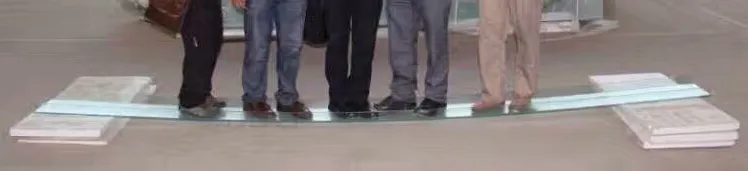

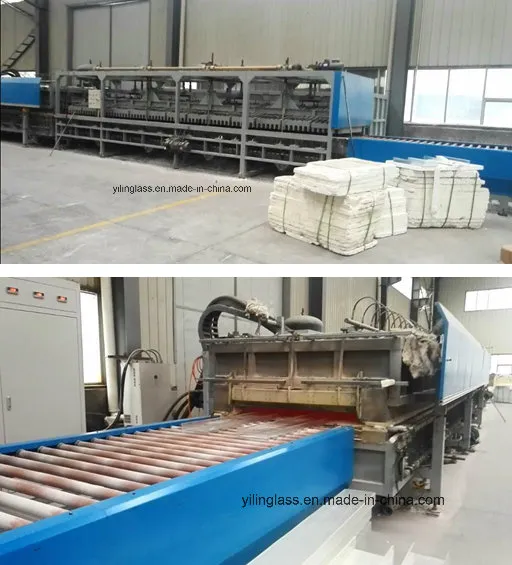

Tempering & Strength

The tempering process involves a secondary heat treatment that strengthens the glass, raising compression to 10,000 psi or greater. Tempered U glass is three to four times stronger than annealed glass. It is safety-rated due to its "dicing" break pattern, which produces small, harmless fragments rather than jagged shards.

Key Advantages

Cost-Effective: Reduces structural costs by 20%-40% compared to standard flat glass structures.
Efficient Installation: Reduces installation workload by 30%-50%.
Modern Aesthetics: Provides a unique, fashionable architectural and decorative effect.
Customizable: Various patterns, sizes, and colors available to meet specific design needs.

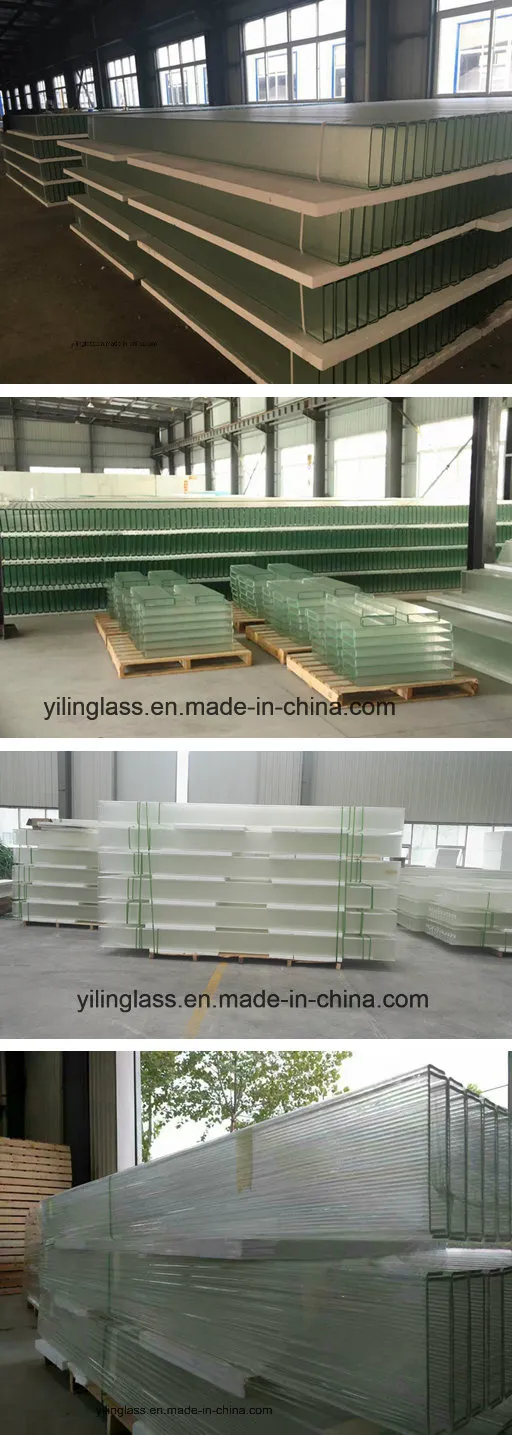

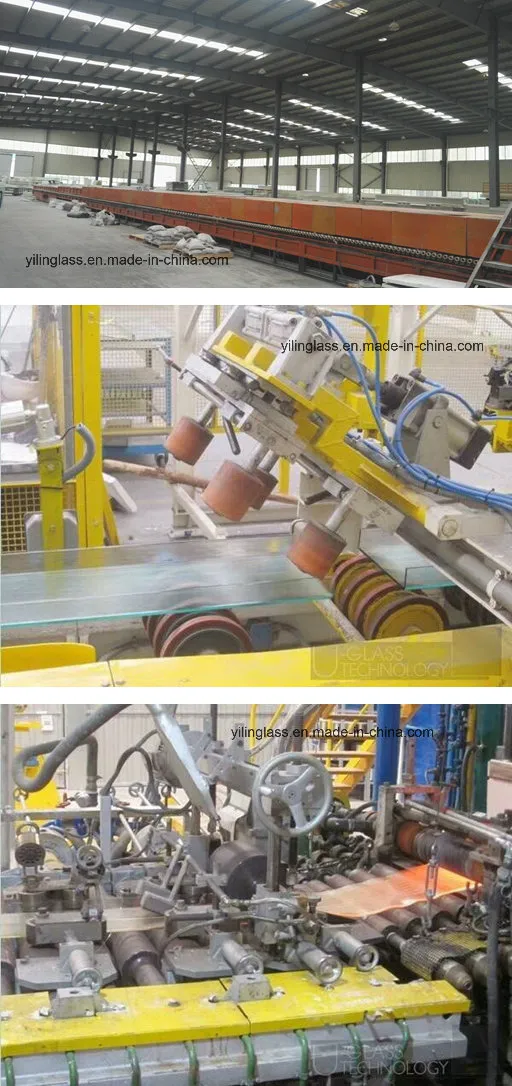

Factory View

Frequently Asked Questions

Q1: What is the primary benefit of the U-shape design? A: The U-shape provides high mechanical strength and allows for spans that traditional flat glass cannot achieve without heavy metal framing, saving both cost and labor.

Q2: Can U profile glass be used for privacy? A: Yes, surface treatments like sandblasting, "Ice" texture, and "Pear-grain" provide excellent light diffusion while maintaining high levels of privacy.

Q3: How strong is tempered U glass? A: Tempered U glass is 3 to 4 times stronger than standard annealed glass and is designed to break into small, blunt fragments to prevent injury.

Q4: What colors and finishes are available? A: We offer ultra-clear (low iron), tinted blue, sandblasted, and ceramic fritted colors based on RAL or Pantone specifications.

Q5: Is the size of U channel glass customizable? A: Yes, we provide customized sizes and patterns, including tempered lengths up to 20 feet.

Q6: What applications are best suited for U glass? A: It is widely used in building facades, glass curtain walls, partitions, and decorative interior structures due to its thermal insulation and aesthetic appeal.
