| Model NO. | AR glass |
|---|---|
| Appearance | Flat Tempered |
| Standard | GB/T 9963-1998 |
| Steel Degree | Tempered Glass |
| Thickness Range | 0.5-19mm |

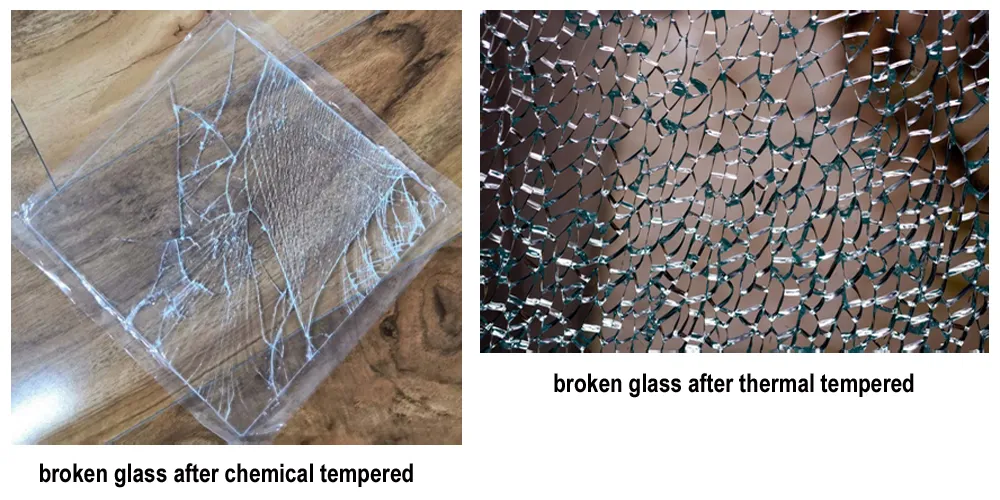

| Technics | Chemical Tempered / Physical Tempered |
| Usage | Building, Furniture, Home Appliance, Electronics & Instruments |
| Glass Raw Materials | Gorilla/AGC/Dragontail/Panda Glass or Other Brands |
| Available Thickness | 0.55mm/0.6mm/0.7mm/0.8mm/1.0mm/1.5mm/2.0mm/3mm etc |

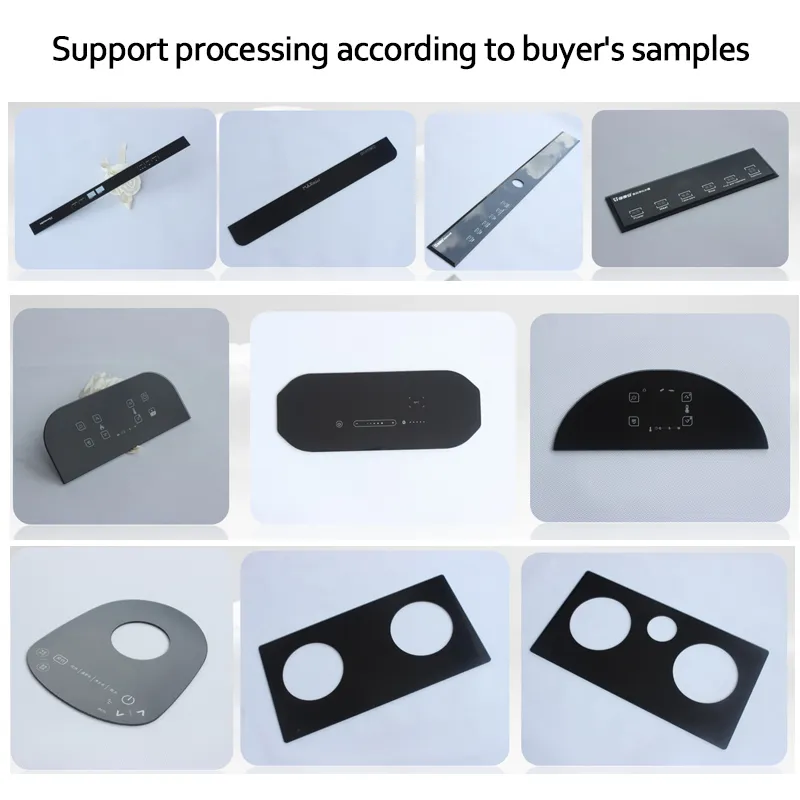

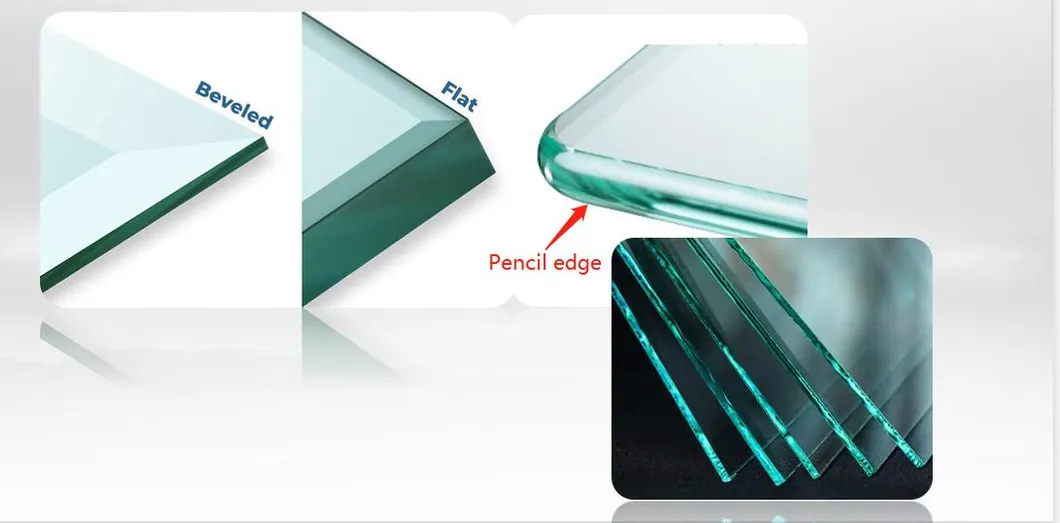

| Edge Processing | Straight, Round, Beveled, Stepped; Polished, CNC |
| Surface Treatment | AG/AF/AR Coating |
| Hardness | >7H |
| Transmittance | >91% |
| Origin | China |
| HS Code | 7007190000 |

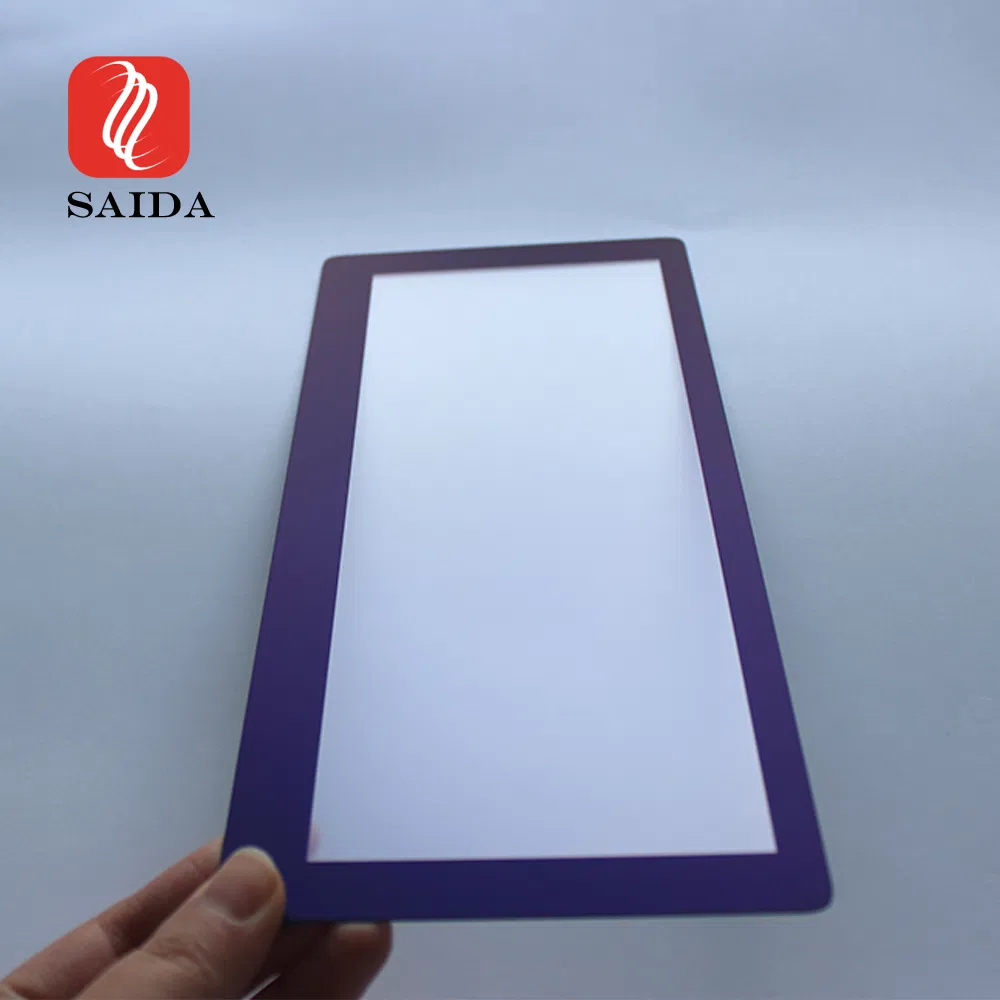

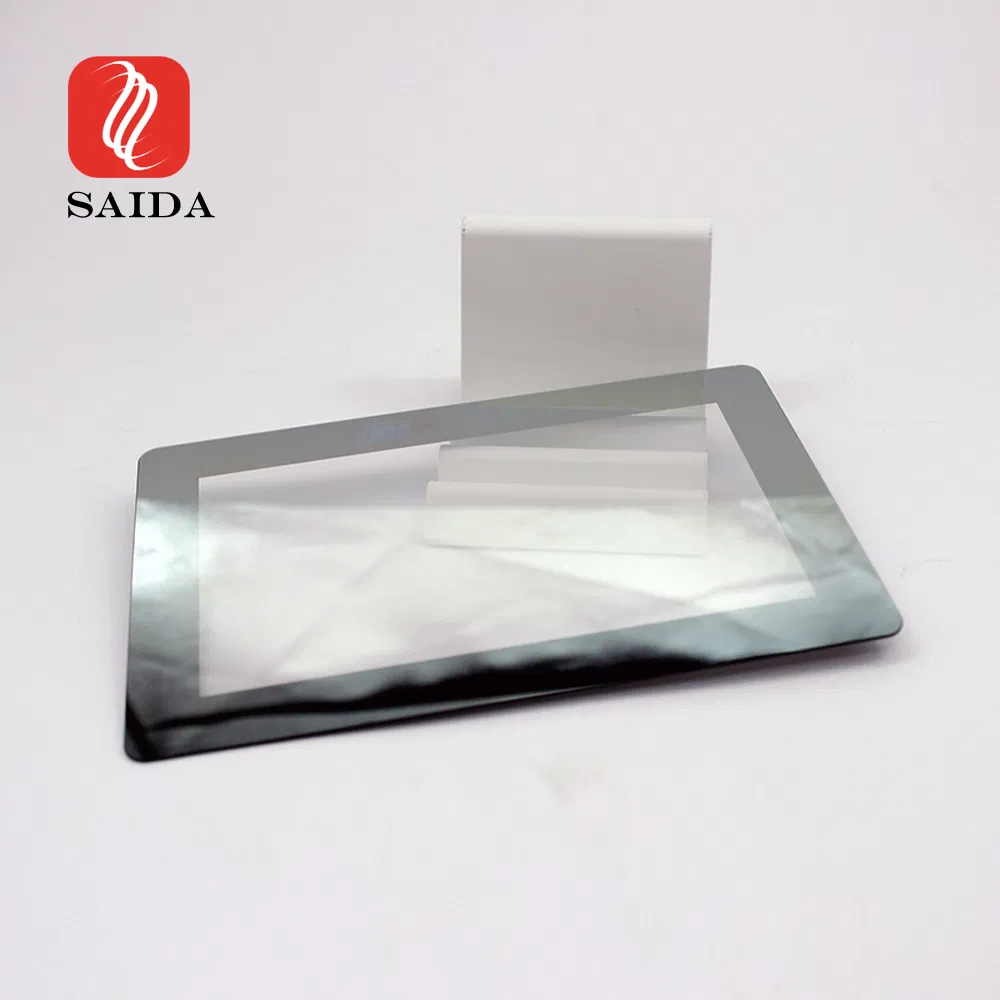

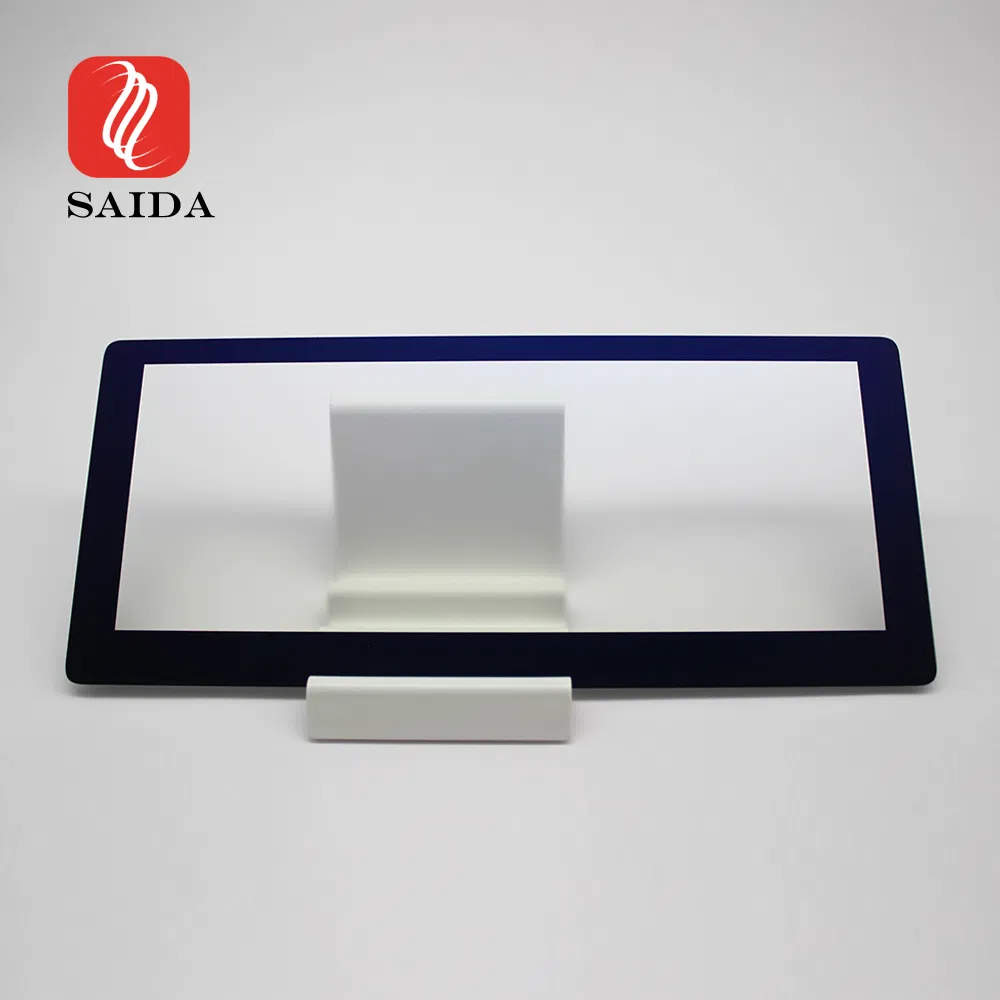

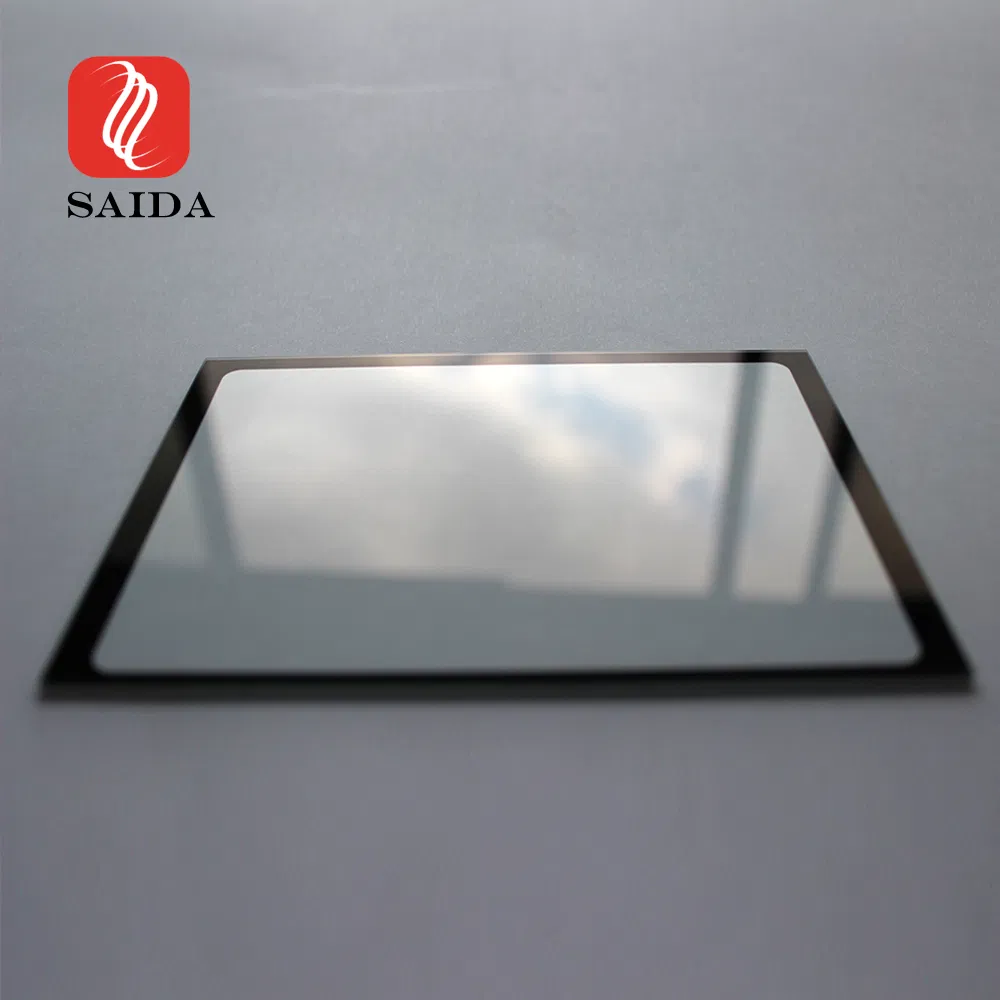

AR coating glass is formed by coating multi-layer nano-optical materials on the glass surface by vacuum reactive sputtering. This process increases the transmittance of the glass while significantly reducing surface reflectivity.
Main Applications: Protection screens for 3D TVs, tablet computers, mobile phone panels, media advertising machines, educational terminals, cameras, medical instruments, and industrial display equipment.
| Material Type | Performance Features |
|---|---|
| AR Glass | High transmittance (up to 99%), low reflection (<2%), easy to clean, no aging, scratch-resistant. |
| AR Film | Low transmittance, sensitive to acid/alkali, poor scratch resistance (≤3H), prone to moisture absorption. |
| Acrylic Panel | High reflectivity, lacks texture, poor flatness for large sizes, easily scratched (≤3H). |
| Parameters | Ordinary Glass | One Side AR | Double Side AR |
|---|---|---|---|
| Color | Clear | Blue-purple | Natural color |
| Optical Curve | - | V | W |
| Transmittance | ≤89% | ≥93% | ≥98% |
| Reflection | ≥8.4% | ≤5.2% | ≤1% |
| Hardness | ≥7H | ≥7H | ≥7H |
| Heat Resistance | Fully or semi-tempered at 650°C, AR coating remains stable. | ||

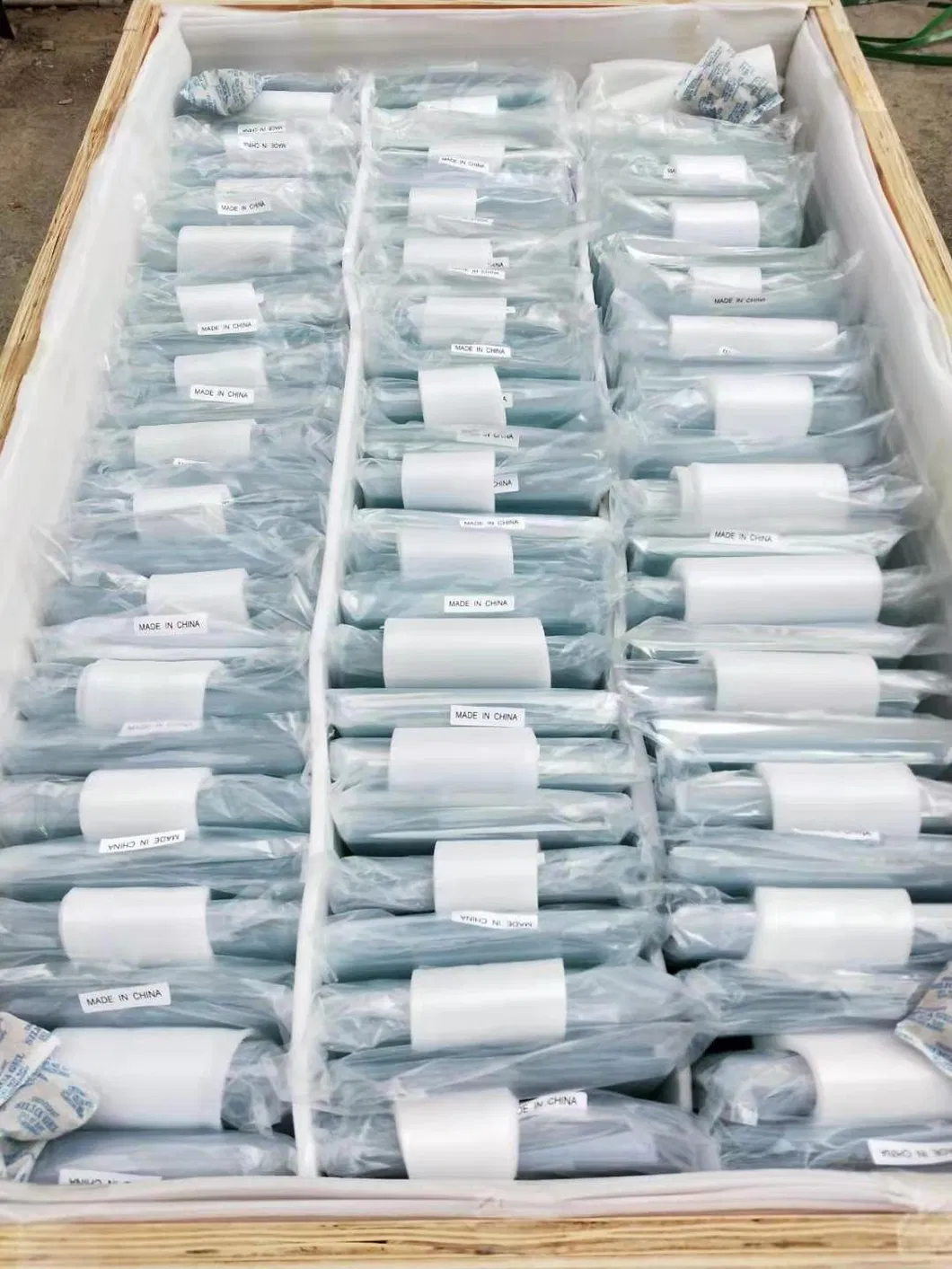

Each glass unit is protected with double-sided film, wrapped in craft paper, and securely packed into specialized plywood crates for safe transit.
