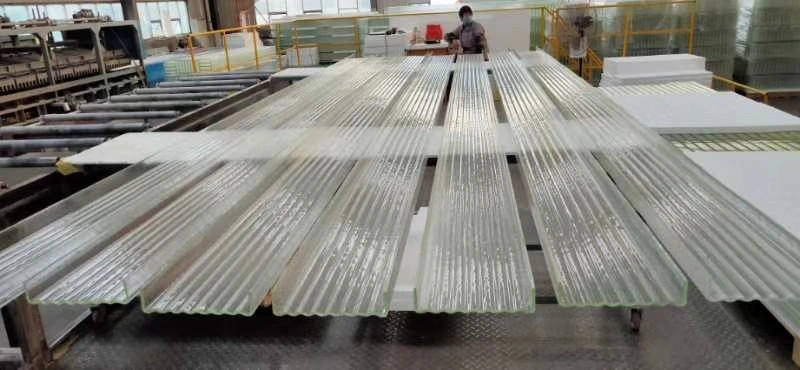

Tempered Sandblasted Wave U Channel Glass

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications
Model NO.
u100
Type
U Profile Glass
Structure
U Shape
Moh's Hardness
7
Shape
U
Function
Thermal Function
Transparency
Translucent or Clear
Processing Method
Molding
Color
Clear
Application
Building
Production Capacity
200 Tons/Day
HS Code
7007
Product Overview
Description

U-profile glass originates from Austria and has been produced for over 35 years in Germany. As a premier material for large-scale building projects, U-profile glass is applied extensively across Europe and America. Its adoption in China began in the 1990s, becoming a mainstay in modern international-based design trends.

This casting glass is formed in computer-controlled smelting furnaces, ensuring excellent quality and precision. Its high mechanical strength makes it suitable for high-rise buildings, providing superior lighting while eliminating the need for extra vertical and horizontal underpinning. Known for heat insulation, sound protection, and noise reduction, it is an environment-friendly and economical architectural solution.

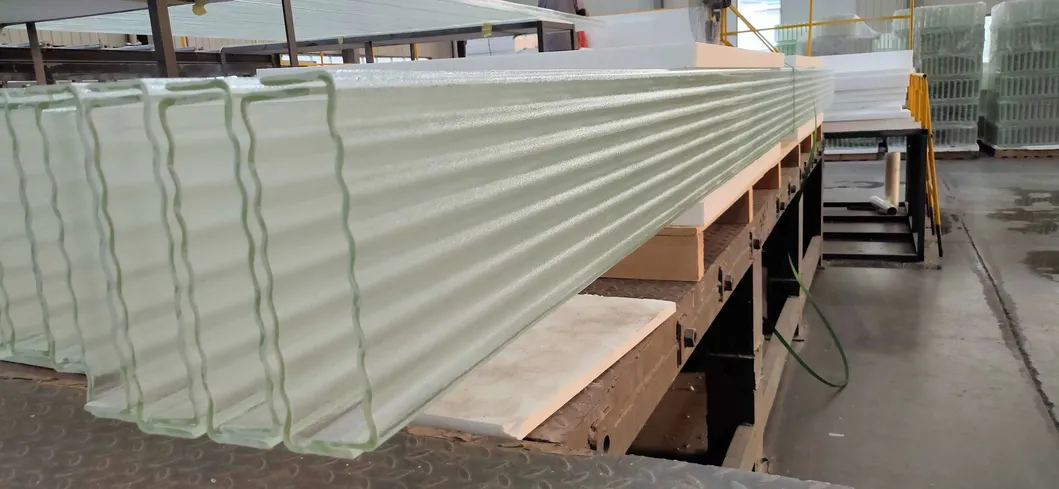

Wave Pattern U glass
Technical Specifications

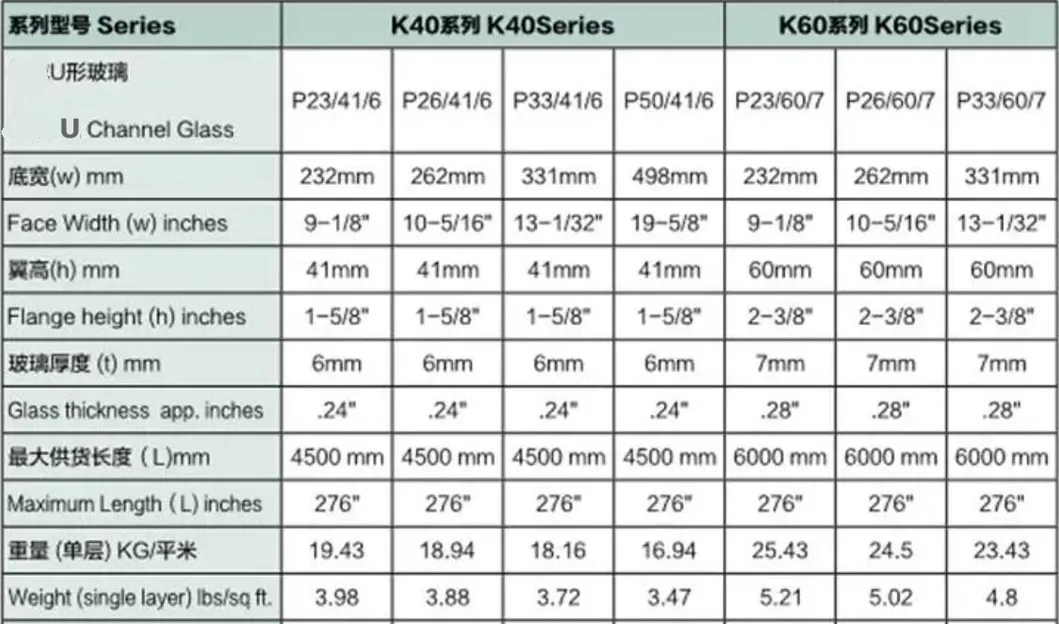

U glass specifications
Surface Treatments & Options
Pear-grainHammered pearl or orange peel texture for moderate translucency and excellent light scattering.
IceAn organic, heavily obscuring texture perfect for privacy in single glazed applications.
PiccoloAvailable in thin or thick lines for a modern aesthetic.
Ultra Clear (Low Iron)Raw materials with low iron composition result in an almost colorless glass with a slight greenish cast.

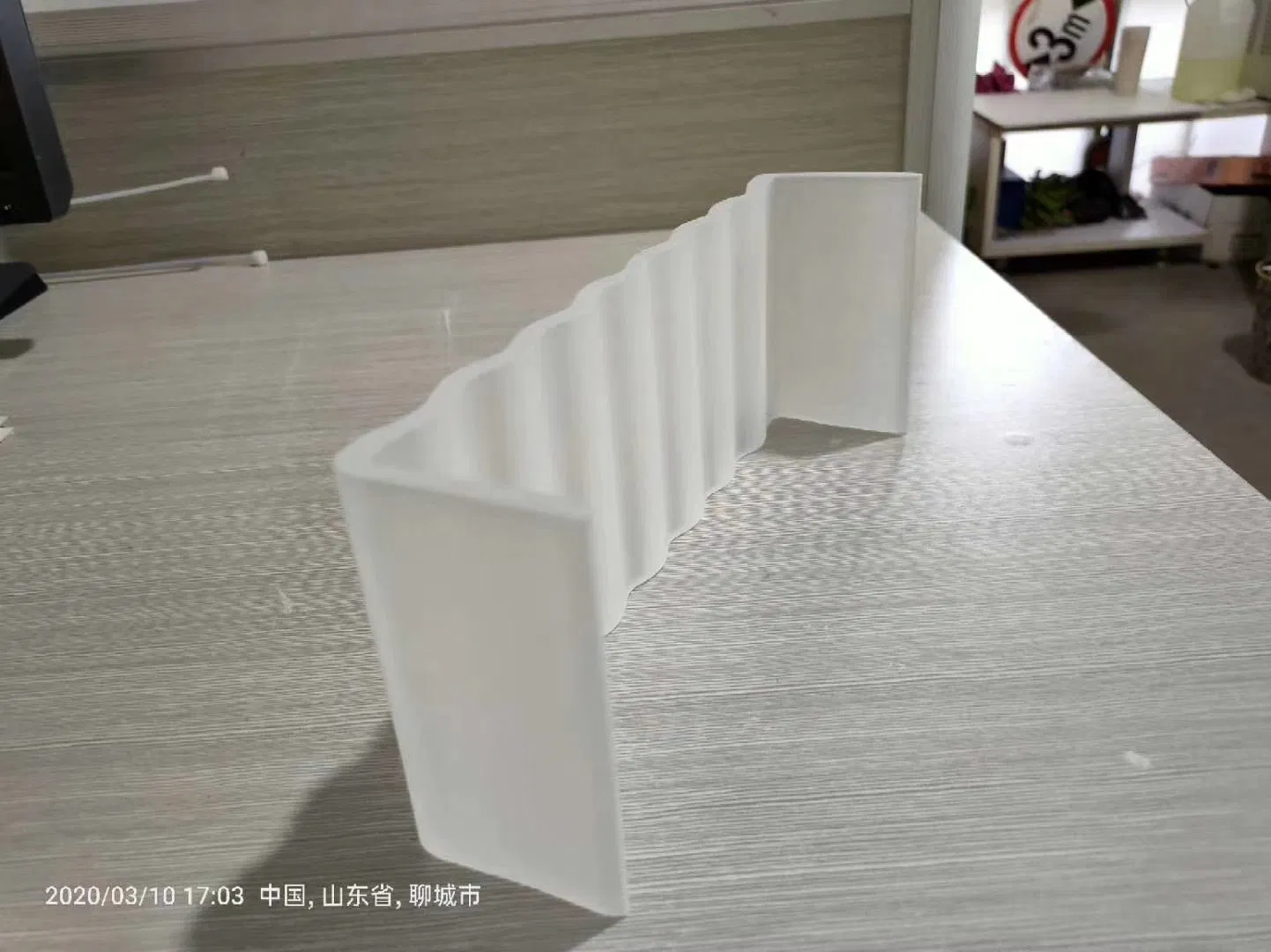

SandblastedLight diffusing frosted aesthetic with a protective coating to reduce fingerprinting.
Color OptionsTinted Blue or Enameled (Ceramic fritted/color coated) available via RAL or Paton numbers.
Customized patterns
Tempering Process

Our custom tempering ovens are designed specifically for three-dimensional channel glass up to 20' long. Tempered channel glass undergoes heat treatment to raise compression to 10,000 psi or greater, making it 3 to 4 times stronger than annealed glass.

Safety is paramount: tempered glass is recognized by its "dicing" break pattern—small, harmless fragments without jagged edges, markedly reducing the likelihood of injury.

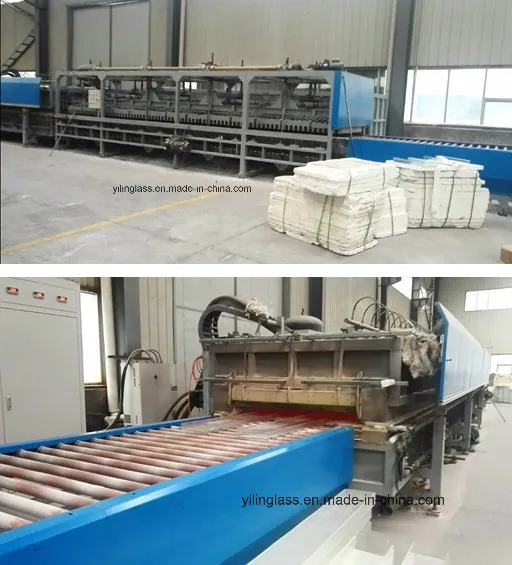

Tempering process
Factory & Project Gallery

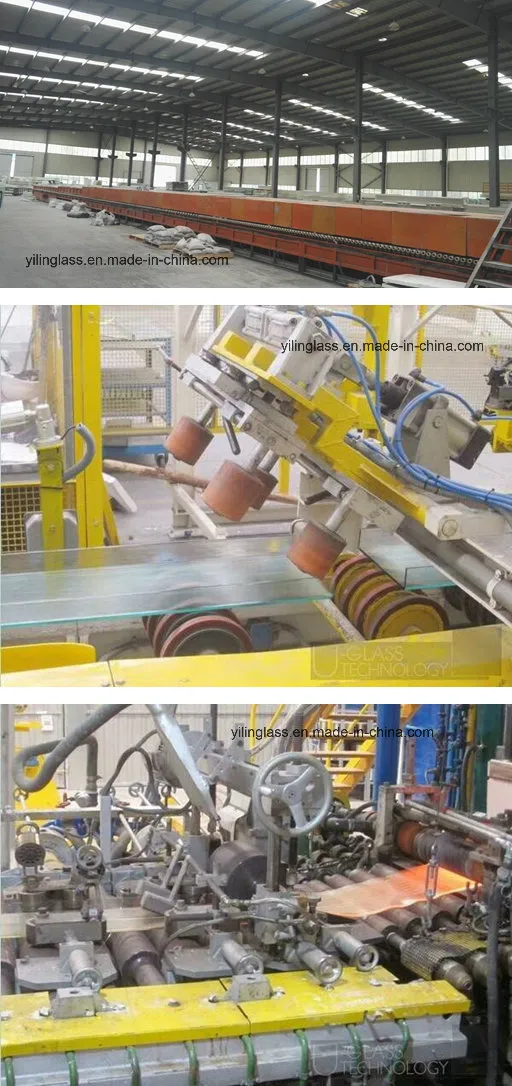

Factory view 1

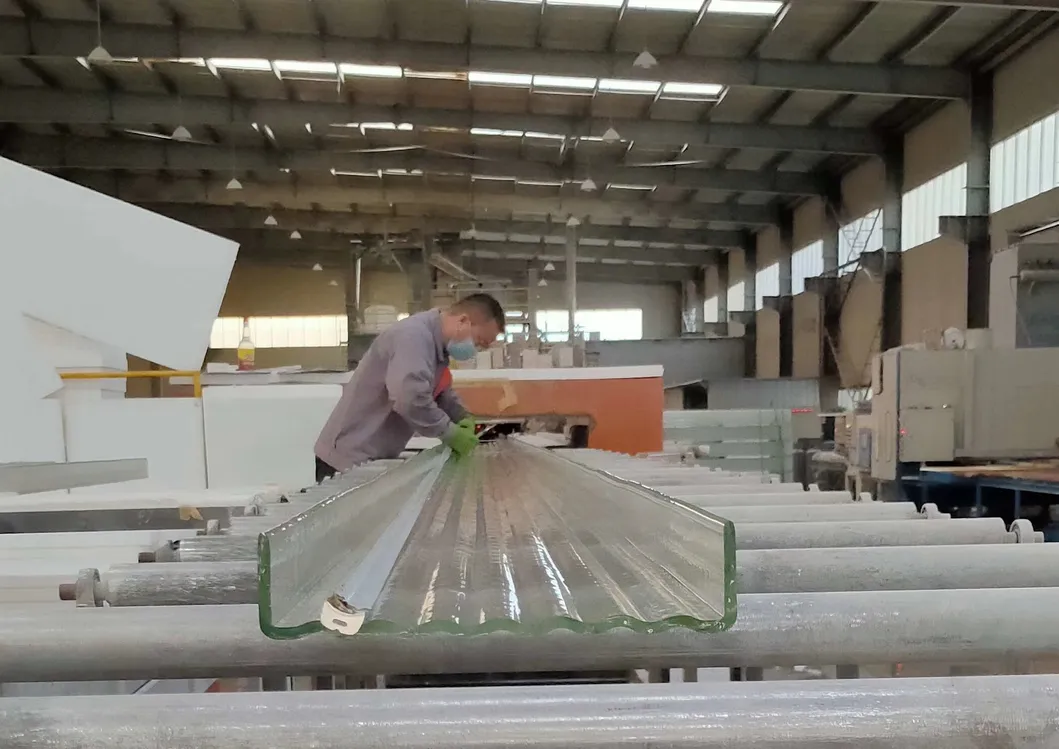

Factory view 2

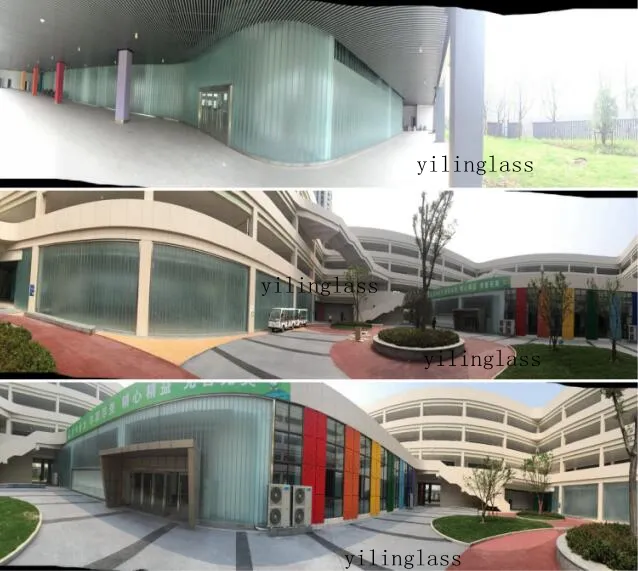

Project case
Frequently Asked Questions
What is U-profile glass?
U-profile glass is a specialized casting glass with a unique U-shaped structure. It is designed for large-scale architectural projects, offering a blend of high mechanical strength and aesthetic versatility.
Is U-profile glass suitable for high-rise buildings?
Yes. Due to its superior mechanical strength and the ability to be tempered up to 10,000 psi, it can be safely installed in high-rise structures without the need for extensive additional supports.
What are the thermal and acoustic properties?
U-profile glass provides excellent heat insulation and preservation. It also serves as an effective sound barrier, offering significant noise protection for urban environments.
Can I request a customized size or pattern?
Absolutely. We offer customized sizes and a wide range of surface patterns, including Sandblasted, Pear-grain, Ice, and various color-coated options to meet specific design requirements.
How safe is the glass if it breaks?
Our tempered glass uses a "dicing" pattern upon impact. It breaks into small, relatively harmless fragments instead of large sharp shards, significantly reducing the risk of injury.
What colors and finishes are available?
We offer clear, ultra-clear (low iron), tinted blue, and a full range of ceramic fritted or color-coated options based on RAL or Paton color standards.
