Product Description
Promotion Price China VIG Vacuum Insulated Glass Double Glazing Low-e Tempered Vacuum Insulating Glass
🌡️
Thermal Insulation
U-Value as low as 0.4W/(Square meters·K). A 8.3 mm thick glass has better thermal insulation effect than a 1.5m thick brick wall.
🔊

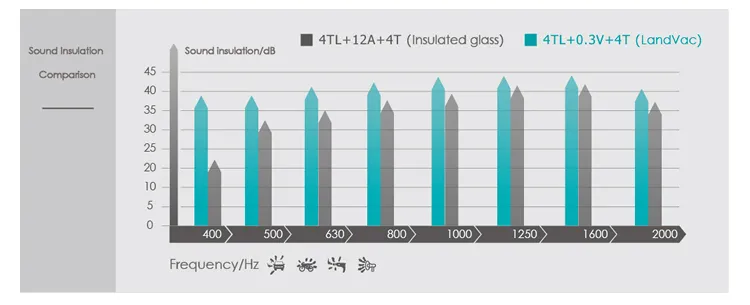

Noise Reduction
With its weighted sound reduction index exceeding 36dB, it makes rooms in downtown quiet like a library.
❄️
Free of Condensation
Free of condensation even when the temperature falls below -70 °C, maintaining exceptional transparency for buildings and freezers.
🛡️
Tempered Safety
Surface stress and granularity meet tempered glass standards, with wind resistance up to ±7200Pa.
Product Type & Performance
| Product Type |
Structure |
Thickness (mm) |
| LandVac | 4TL+0.3V+4T | 8.3 |
| Triple Glazing | 4T+12A+4TL+0.3V+4T | 24.3 |
| Product Type |
U-value (W/m²K) |
SHGC |
SC |
Sound Isolation (dB) |
| LandVac | 0.48 | 0.49 | 0.56 | 39 |
| Triple Glazing | 0.42 | 0.45 | 0.52 | 42 |
* T-Tempered clear; TL-tempered Low-E; V-vacuum; A-air space. Data calculated per ASHRAE standards.
Inner Structure & Advantages
Super Long Life
The life expectancy exceeds 25 years. Flexible edge sealing materials avoid failure caused by temperature differences between indoor and outdoor environments.
Ultimate Dewpoint
Ensures interior glass surface is free of condensation even when the outdoor temperature falls to -40 °C.
Five Core Technologies
Low Temperature SealingSurface stress exceeds 90MPa, retaining safety features of tempered glass.
Flexible Edge SealingHigher resistance against thermal expansion and contraction.
High Vacuum SealingConsistent high degree vacuum maintained in a UHV chamber.
Flat Sealing TechnologySealing does not protrude, ensuring easy transport and elegant mounting.
Intelligent AutomationContinuous production line minimizes human intervention for quality consistency.
Wide Applications
Architecture: Doors, windows, curtain walls, and skylights.
Home Appliances: Freezers, wine cabinets, and display cases.
BIPV: Solar photovoltaic buildings.
Transportation: Automobiles, high-speed rail, and aircraft.
Agriculture: Modern greenhouse farming.
Frequently Asked Questions
Q1: What is the thermal insulation performance (U-value) of LandVac?

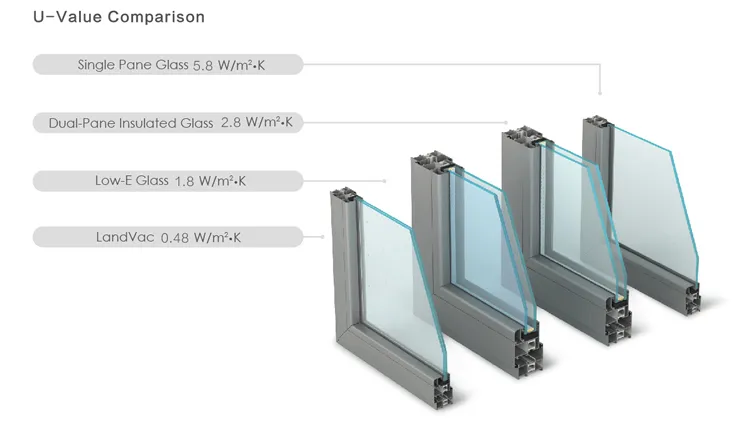

The U-value is as low as 0.48 W/(m²K) for standard LandVac and 0.42 W/(m²K) for triple glazing, which is 2 to 4 times better than regular insulated glass.
Q2: Is the vacuum insulated glass fully tempered?
Yes, it uses low-temperature sealing technology that allows the glass to retain its tempered safety features, with surface stress exceeding 90MPa.
Q3: How effective is it for noise reduction?
It has a weighted sound insulation measurement of up to 39 dB, effectively blocking medium and low-frequency traffic and construction noises.
Q4: Does condensation form on the glass surface?
No, the high vacuum interspace eliminates condensation even when outdoor temperatures fall as low as -40°C.
Q5: What is the expected lifespan of the product?
The life expectancy exceeds 25 years thanks to flexible edge sealing technology and built-in high-efficiency getter materials.
Q6: What are the maximum and minimum dimensions available?
The maximum dimension is 1500 x 2500 mm, and the minimum size is 300 x 300 mm.
