MGW Glass
MGW Glass

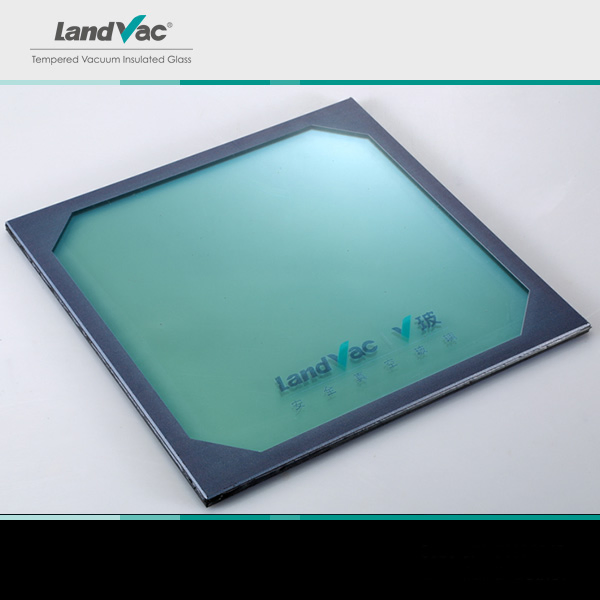

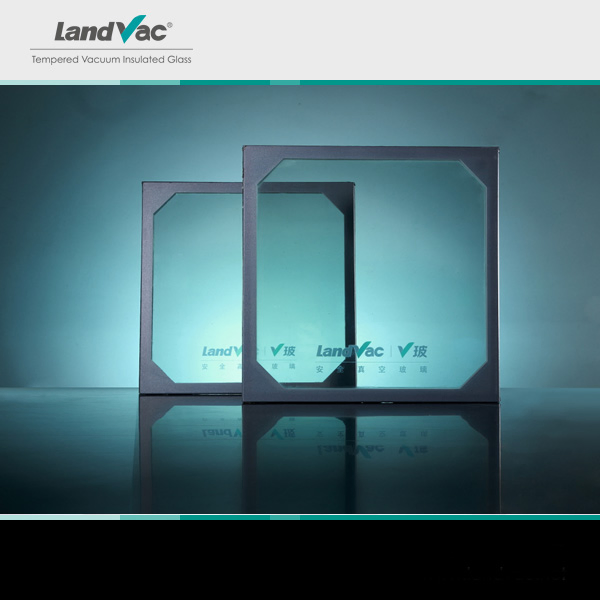

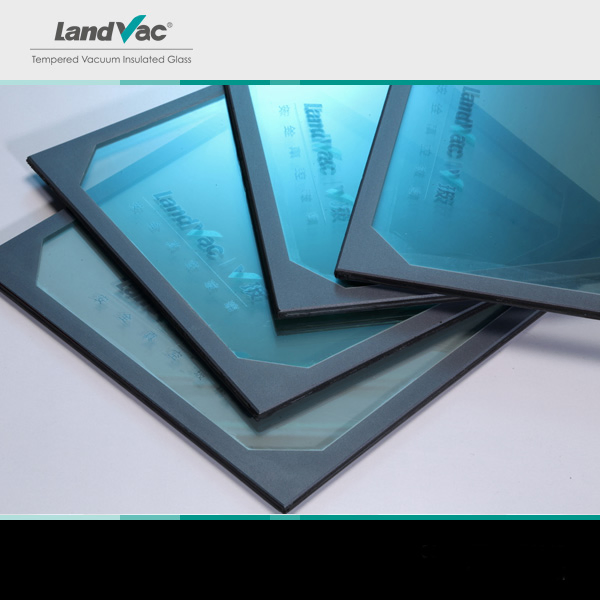

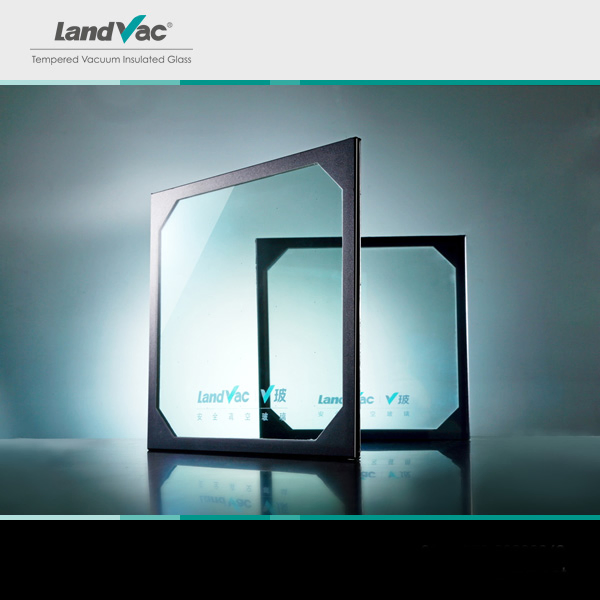

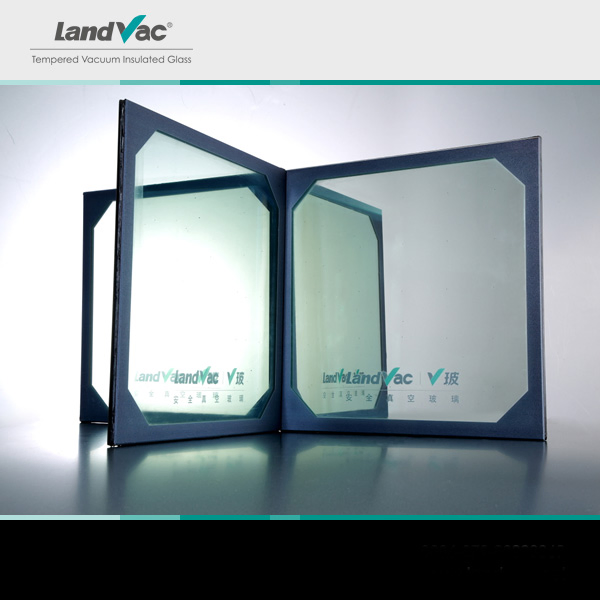

Customized Soundproof Tempered Clear Vacuum Insulated Glass featuring advanced thermal and sound insulation technologies.

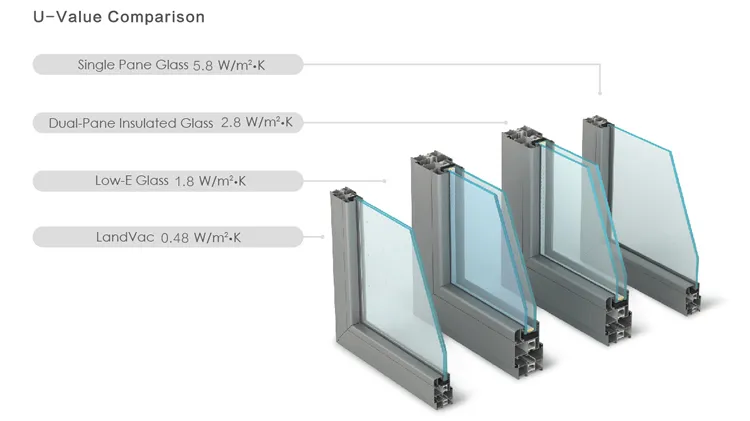

U-Value as low as 0.4W/(m²·K). An 8.3 mm thick glass provides better insulation than a 1.5m thick brick wall.

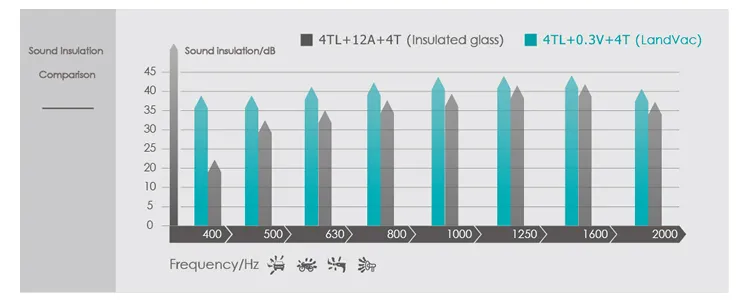

Weighted sound reduction index exceeds 36dB, making busy downtown environments as quiet as a library.

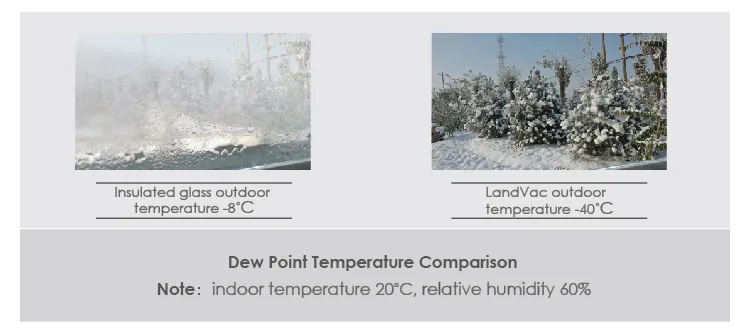

Remains clear even when temperatures fall below -70 °C, maintaining exceptional transparency for buildings and freezers.
Surface stress meets tempered glass standards with wind resistance up to ±7200Pa. Certified by ANSI Z97.1 and RoHS.
| Product Type | Structure | Thickness (mm) | U-value (W/m²K) | Sound Isolation (dB) |
|---|---|---|---|---|
| LandVac | 4TL+0.3V+4T | 8.3 | 0.48 | 39 |
| Triple Glazing Plus | 4T+12A+4TL+0.3V+4T | 24.3 | 0.42 | 42 |
* T-Tempered clear; TL-tempered Low-E; V-vacuum space; A-air space. Data calculated per U.S. ASHRAE standards.
Retains the safety features of tempered glass with surface stress exceeding 90MPa, resolving the problem of glass annealing during sealing.
Uses flexible materials for higher resistance against thermal expansion/contraction, making it robust against temperature variations.
Sealed in a UHV chamber to maintain consistent high-degree vacuum between layers for remarkable durability.
The sealing does not protrude above the glass surface, ensuring easy transportation and an elegant look in frames.
The tempered vacuum insulated glass has been approved by authoritative third-party inspection centers. Thermal insulation performance reaches Level 10 (highest national standard), and sound insulation reaches Level 4.
