MGW Glass
MGW Glass

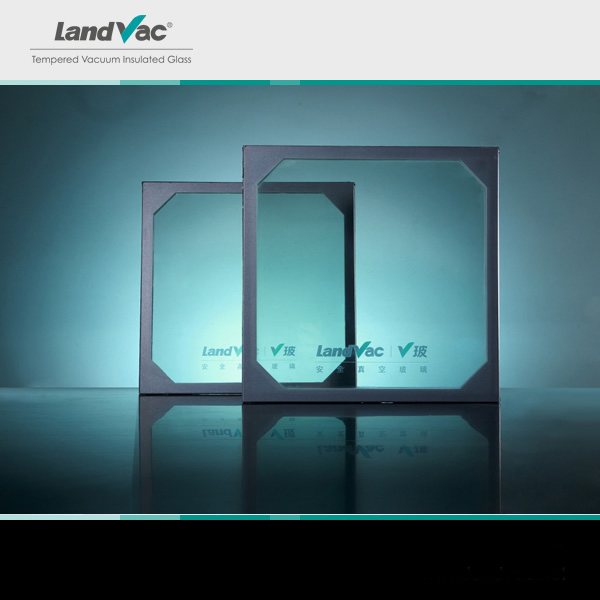

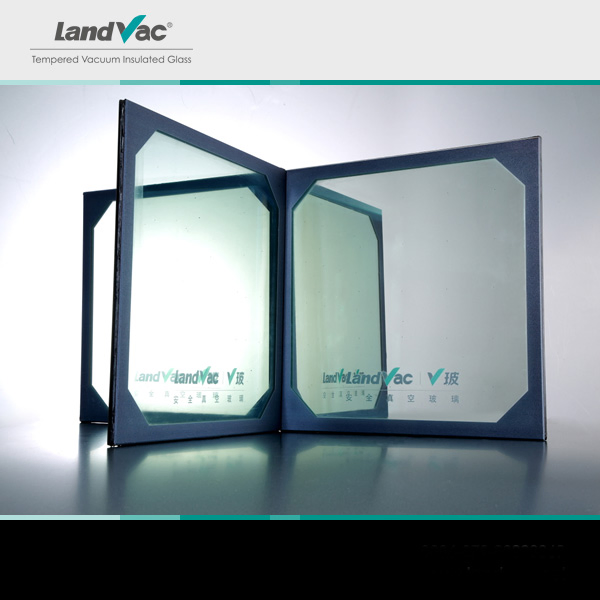

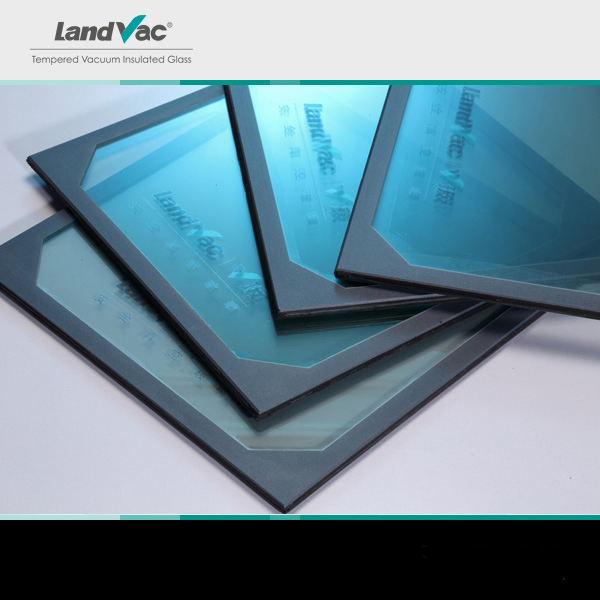

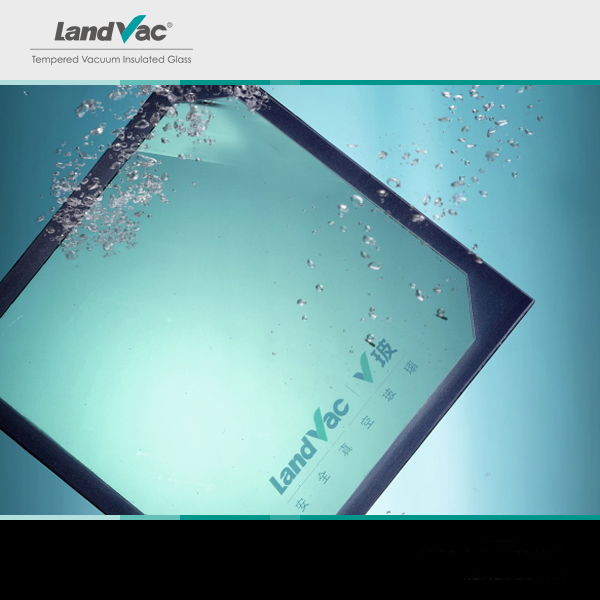

This new generation tempered vacuum insulated glass features outstanding thermal and sound insulation while retaining the high strength and safety of tempered glass. It leads the trend in green building and upscale home appliances.

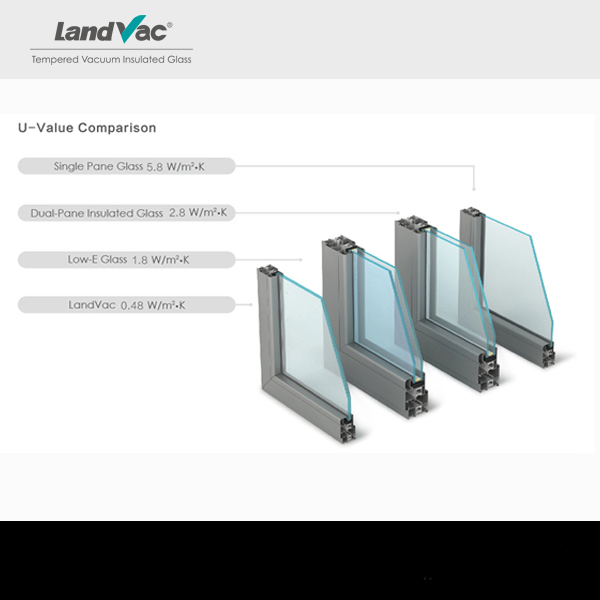

U-Value as low as 0.4W/(m²·K). 8.3mm thickness provides better insulation than a 1.5m thick brick wall.
Sound reduction index exceeding 36dB, effectively blocking traffic and construction noise.
Remains clear even when temperatures fall below -70°C due to ultra-low dew points.
Meets safety glass standards with wind resistance up to ±7200Pa and high impact resistance.
| Product Type | Structure | U-value (W/m²K) | SHGC | Sound Isolation (dB) | Thickness (mm) |
|---|---|---|---|---|---|
| Single Vacuum Unit | 4TL+0.3V+4T | 0.48 | 0.49 | 39 | 8.3 |
| Triple Glazing (Hybrid) | 4T+12A+4TL+0.3V+4T | 0.42 | 0.45 | 42 | 24.3 |
* T-Tempered clear glass; TL-tempered Low-E glass; V-vacuum space; A-air space. Data according to ASHRAE standards.
Life expectancy exceeds 25 years. Flexible edge sealing materials prevent failure caused by big temperature differences between indoor and outdoor environments.
The product has been approved by authoritative third parties. Results show thermal insulation performance reaching the highest level of national standards (Level 10) and sound insulation (Level 4).
