Product Description

Basic Information
Model NO.
Eliter 091
Type
Float Glass
Shape
Flat or Curved
Structure
Hollow
Thickness
3-19mm
Air Cavity
6mm to 24mm
Moh's Hardness
7
Color
Neutral, Blue, Gray, Green, Gold, Bronze
Usage
Door, Building, Window, Curtain Wall, Facade
Certificates
SGCC, CE, IGCC, CSI
Product Description
🛡️
High-Performance Insulating Units: IGU/DGU Heatproof, Sound Proof, and LOW-E Insulated glass solutions designed for modern architectural applications.

Insulating Glass (IGU) is composed of two or more pieces of glass sheets using sealant and aluminum spacers filled with desiccant. It is properly sealed with primary and secondary sealants to ensure air/argon tightness, significantly enhancing thermal and acoustic insulation.

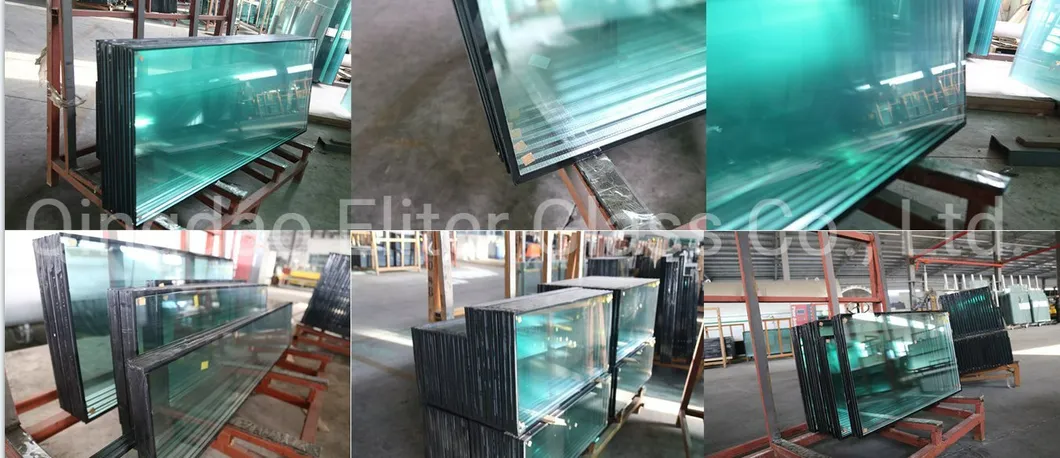

IGU Structure

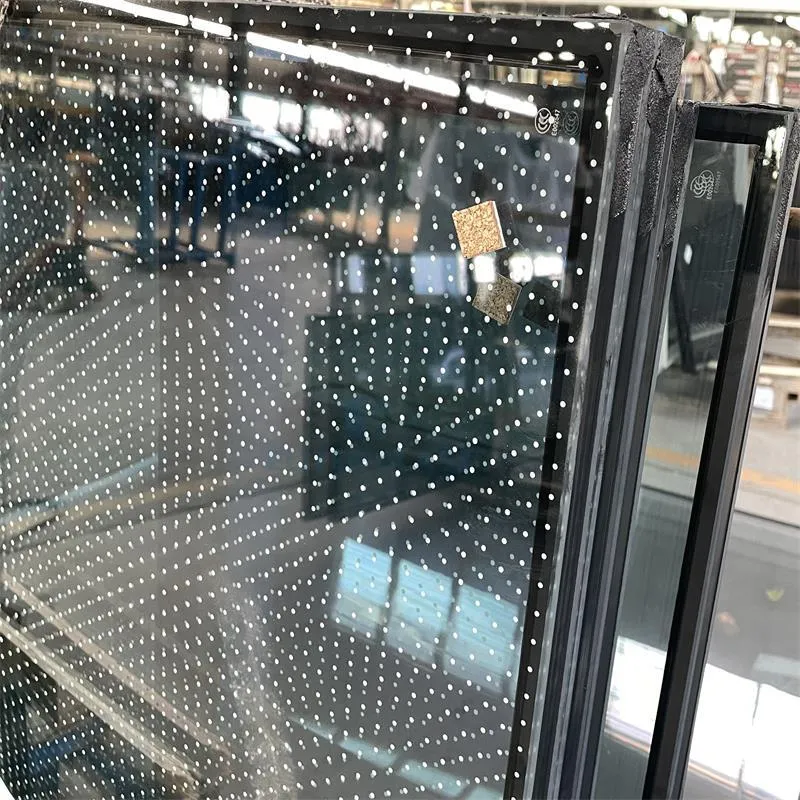

Insulated Glass Sample 1
Insulated Glass Sample 2
Technical Specifications
Item Details
Product TypesDouble/Triple Glazed, Silk Screen Printed, Laminated, Oversized, Curved
Spacer TypeAluminum, Stainless steel, Thermal break spacer
Glass OptionsClear, Low iron, Tinted, Pattern, Ceramic fritted, Low-E (Single/Double/Triple Silver)
Gas FillingArgon or Air
Surface FinishingClear, Frosted, Sandblasted, Colors Printed
Standard ComplianceGB11944 (CN), IGCC ASTM E2190 (USA/CA), AS/NZS4666 (AU), CE EN1279 (EU)
Special Processing
⚙️

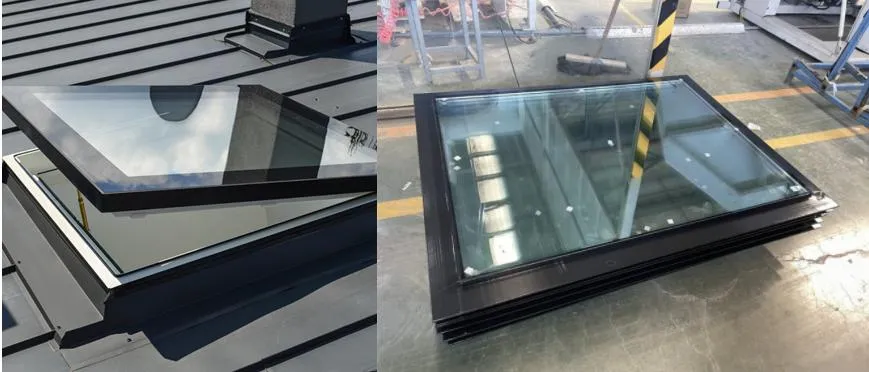

Stepped/Offset IGU: Used for semi-stick curtain walls or skylights for a seamless finish.
Stepped Glass
🔩

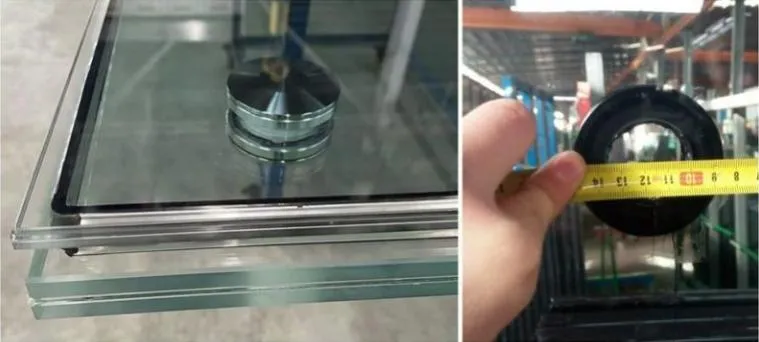

Perforated IGU: Supplied with perforations and aluminum rings for point-supported facades.
Perforated Glass
🏗️

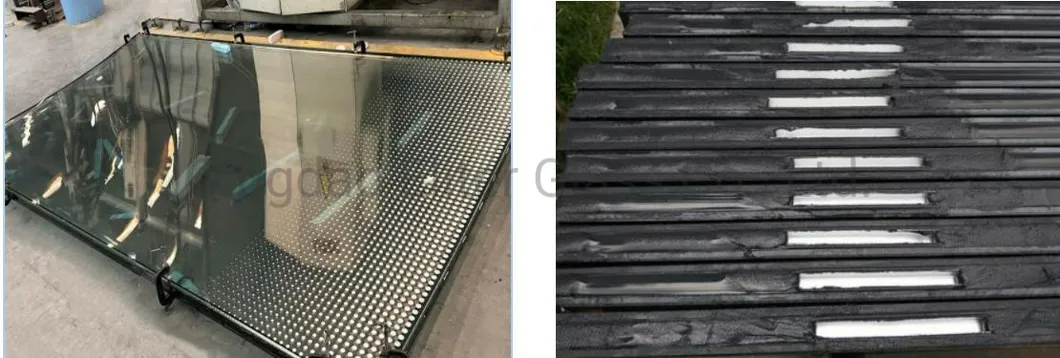

U Channels: Embedded aluminum frames for specialized supporting points.
U Channel Glass
Key Characteristics
Optical: Transmittance 70-80%, Reflectance 10-48%.
Thermal: Effectively lowered U-value, enhanced by Argon gas.
Acoustical: Noise reduction by more than 30 dB.
Anti-Condensation: Dew point below -65 ºC.

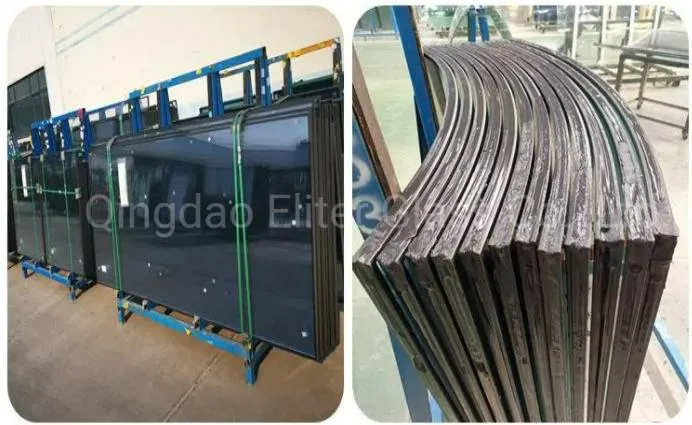

Glass Application

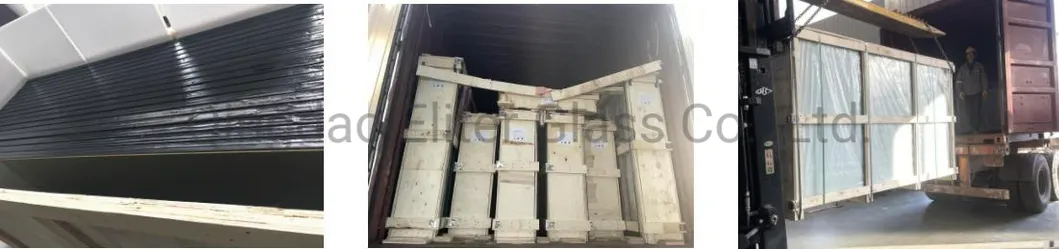

Packaging & Loading

✔️ Strong wooden crates suitable for overseas transportation.
✔️ Maximum weight per crate: 1.5-2 tons.
✔️ Safety protection for long-distance shipping.

Packaging
Frequently Asked Questions
How can I get a quotation?
Please provide the glass configuration, thickness, sizes, quantity, and specific processing details required for your project.
What is the Minimum Order Quantity (MOQ)?
There is generally no strict MOQ for processed glass; however, larger quantities typically qualify for better unit pricing.
Are samples available?
Yes, samples are free. You only need to cover the shipping costs or provide a courier account. Samples are usually ready in 1-4 weeks.
What are the primary benefits of using IGU?
Insulated Glass Units (IGU) provide superior energy savings by reducing thermal transfer, excellent soundproofing, and prevention of condensation.
What is your typical delivery time?
The standard lead time is approximately 3-4 weeks after the order and specifications are confirmed.
What are the payment terms?
For orders under 5000 USD, 100% prepayment is required. For larger orders, we typically accept 30% prepayment and 70% before shipping.
