Basic Specifications
| Model NO. | u71 |
| Type | U Profile Glass |
| Structure | U Shape |
| Moh's Hardness | 7 |
| Function | Optical, Electromagnetic, Thermal, Mechanics and Mechanical Function |
| Transparency | Translucent or Clear |
| Processing Method | Molding |
| Max. Length | 12 Meters |
| Production Capacity | 200 Tons/Day |
| HS Code | 7007 |
| Origin | China |

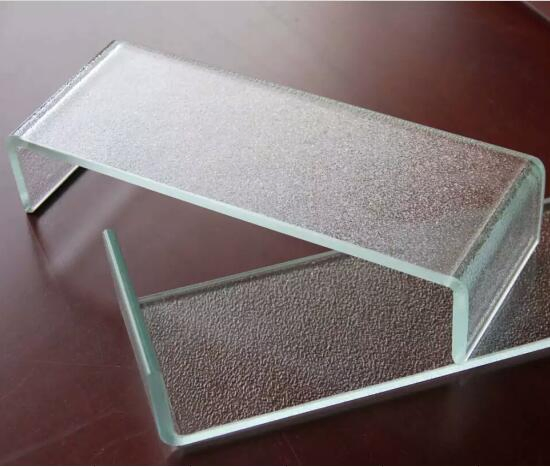

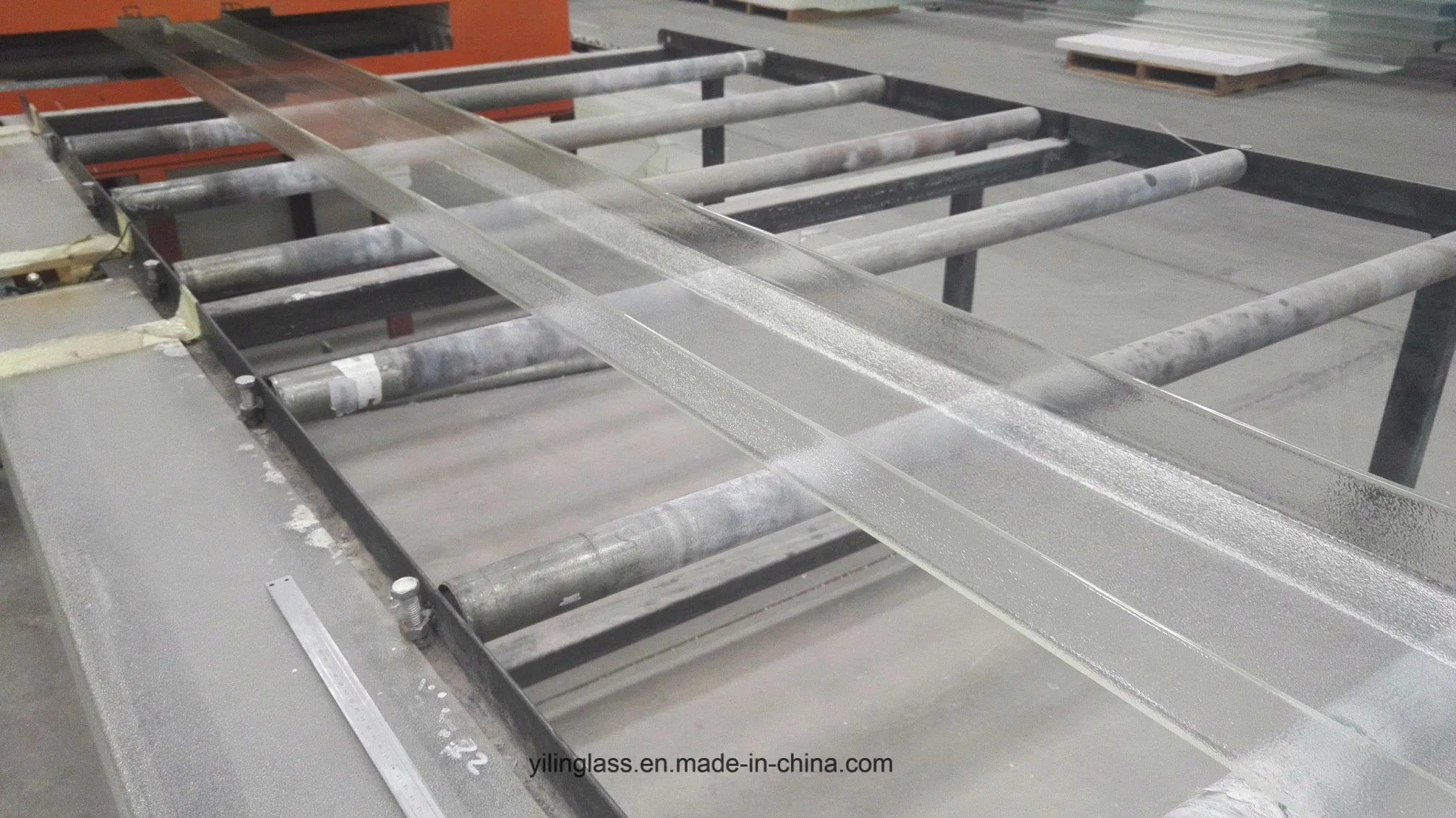

Tempered U Profile Glass Overview

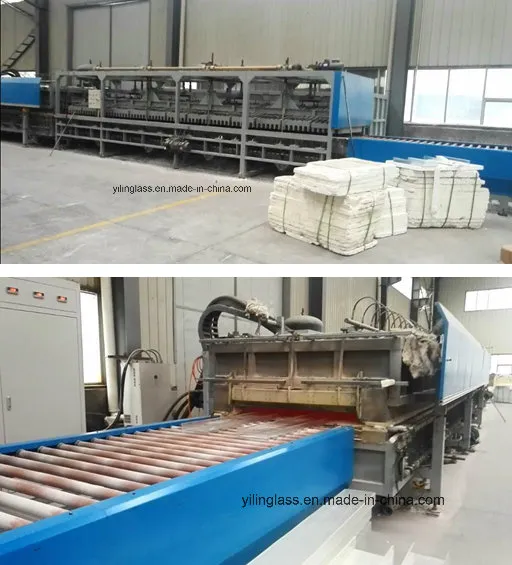

The tempering process for channel glass up to 20' long is conducted in custom-designed ovens exclusively for three-dimensional channel glass. This precision machinery ensures dimensionally consistent glass production. Tempered U channel glass is annealed glass that undergoes a second heat treatment to raise compression to 10,000 psi or greater. This makes it three to five times stronger than standard channel glass.
Safety Performance: Recognized by its break pattern—relatively small, harmless fragments (dicing). This markedly reduces the likelihood of injury as there are no jagged edges or large, sharp shards.
Key Features
- Up to 5 times stronger than ordinary glass of the same thickness
- Superior soundproof and acoustic insulation properties
- High resistance to sudden temperature fluctuations
- Exceptional impact resistance for structural safety
- Enhanced deflection properties under load
- Greater tolerance for repetitive load variations before fracture
- Shatters into tiny pellets upon breakage to prevent harm

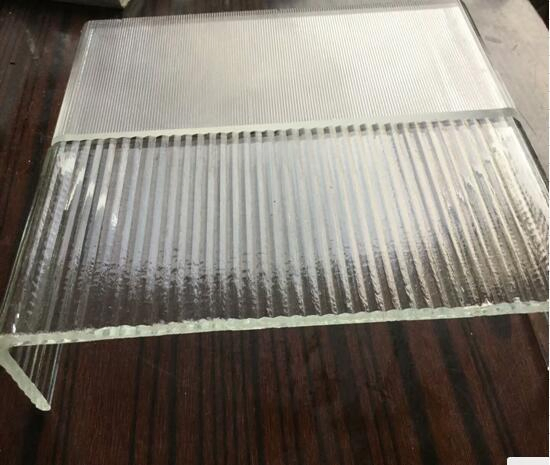

- Available in various tints, patterns, and low-iron options

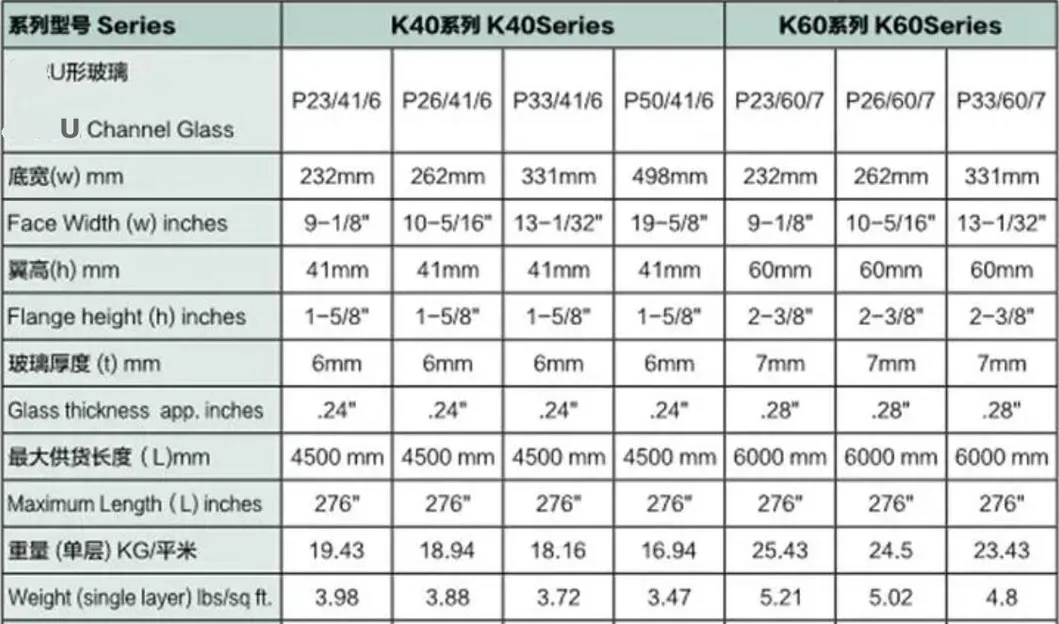

Technical Specifications & Sizes
Normal clear, tinted blue, tinted green, and low iron or ultra clear options are available. Specially, customized sizes and patterns can be manufactured to meet specific architectural requirements.

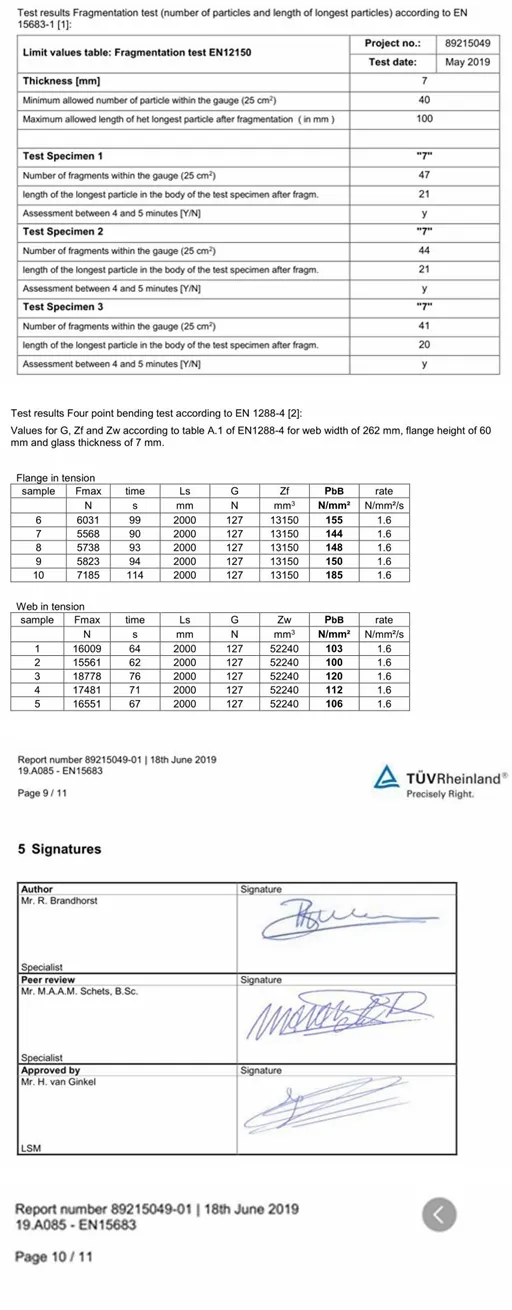

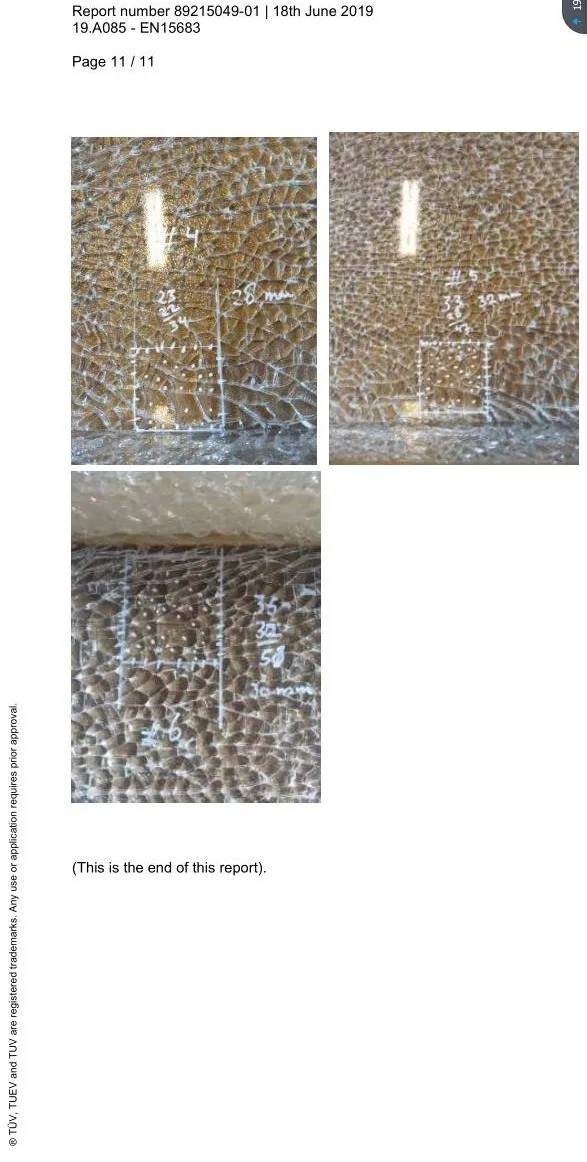

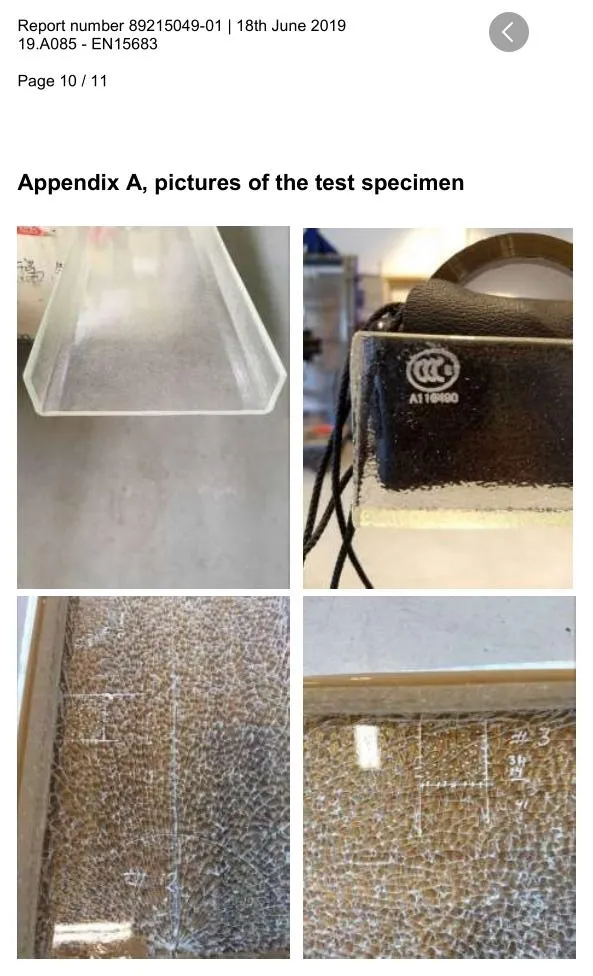

Testing Results & Quality Reports

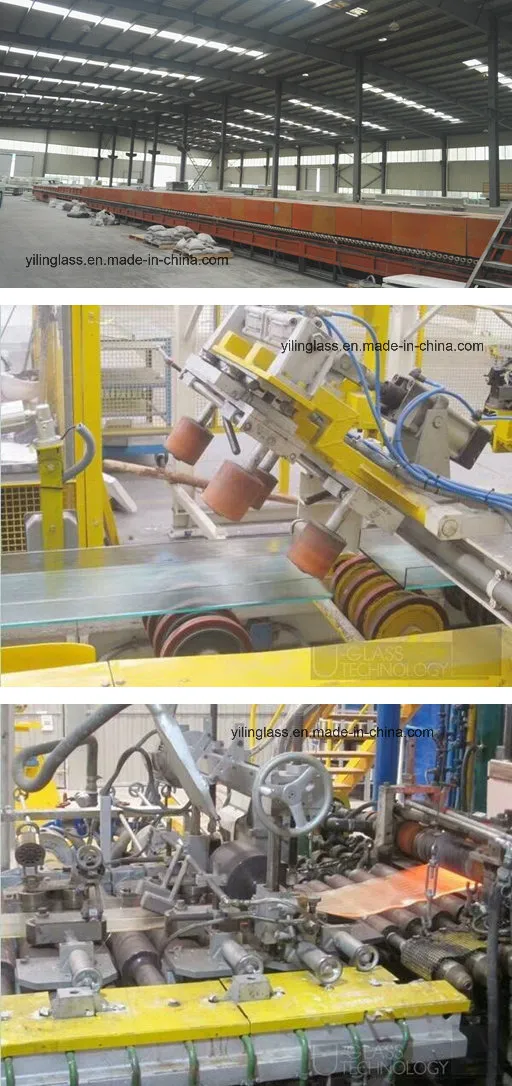

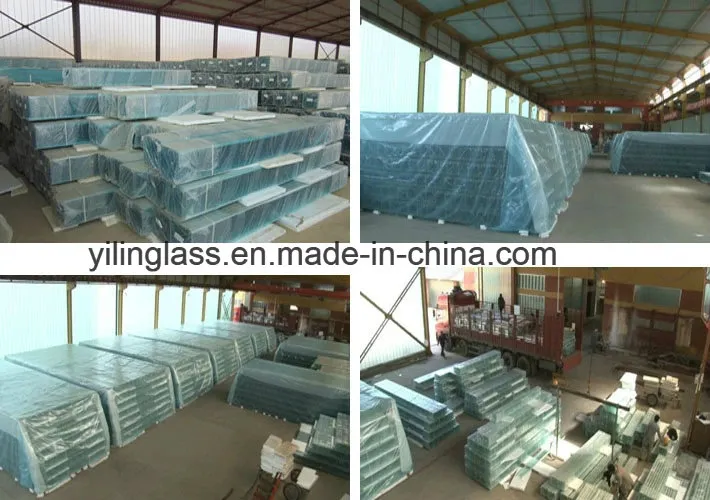

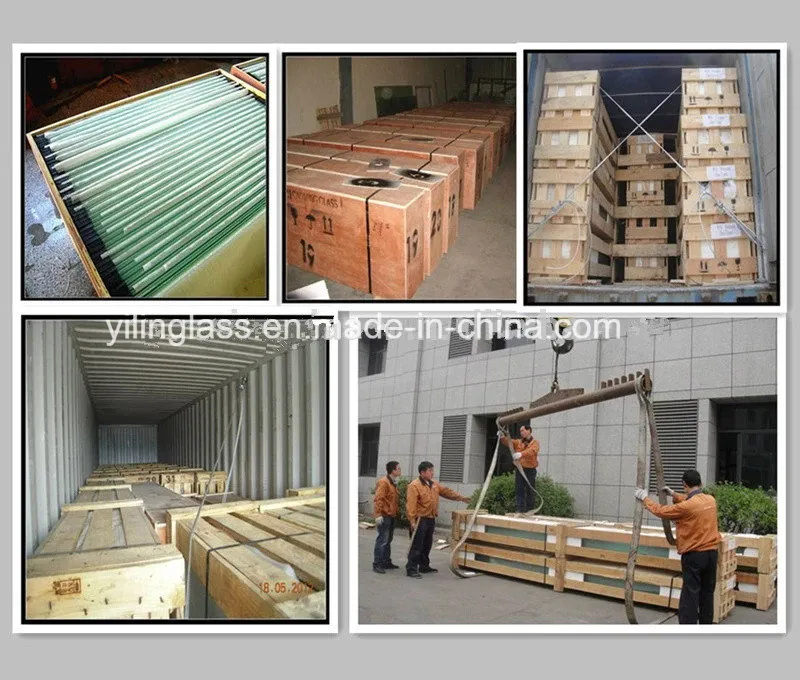

Manufacturing & Logistics
With over 20 years of manufacturing experience, the production facility offers one-stop solutions including designing, fabricating, and installation guidance. Safety and quality are the primary focus.
Frequently Asked Questions
Q: What is the maximum length of U Profile Glass?
A: We can manufacture U profile glass in lengths up to 12 meters, allowing for expansive vertical installations without horizontal joints.
Q: How much stronger is tempered U glass compared to standard glass?
A: Tempered U glass is approximately 3 to 5 times stronger than standard annealed glass of the same thickness due to the secondary heat treatment process.
Q: What happens if tempered U profile glass breaks?
A: In the event of breakage, the glass shatters into hundreds of small, relatively blunt pellets. This dicing effect significantly minimizes the risk of serious injury.
Q: Can U profile glass be used for sound insulation?
A: Yes, its unique structural shape and the density of tempered glass provide excellent soundproofing properties, making it ideal for building envelopes and partitions.
Q: Are there different color or pattern options available?
A: We offer a variety of options including normal clear, ultra-clear (low iron), tinted blue, tinted green, and various customized patterns to suit architectural designs.
Q: Is the U profile glass suitable for extreme temperatures?
A: Yes, the tempered process makes the glass much more resistant to thermal stress and sudden changes in temperature compared to ordinary glass.
