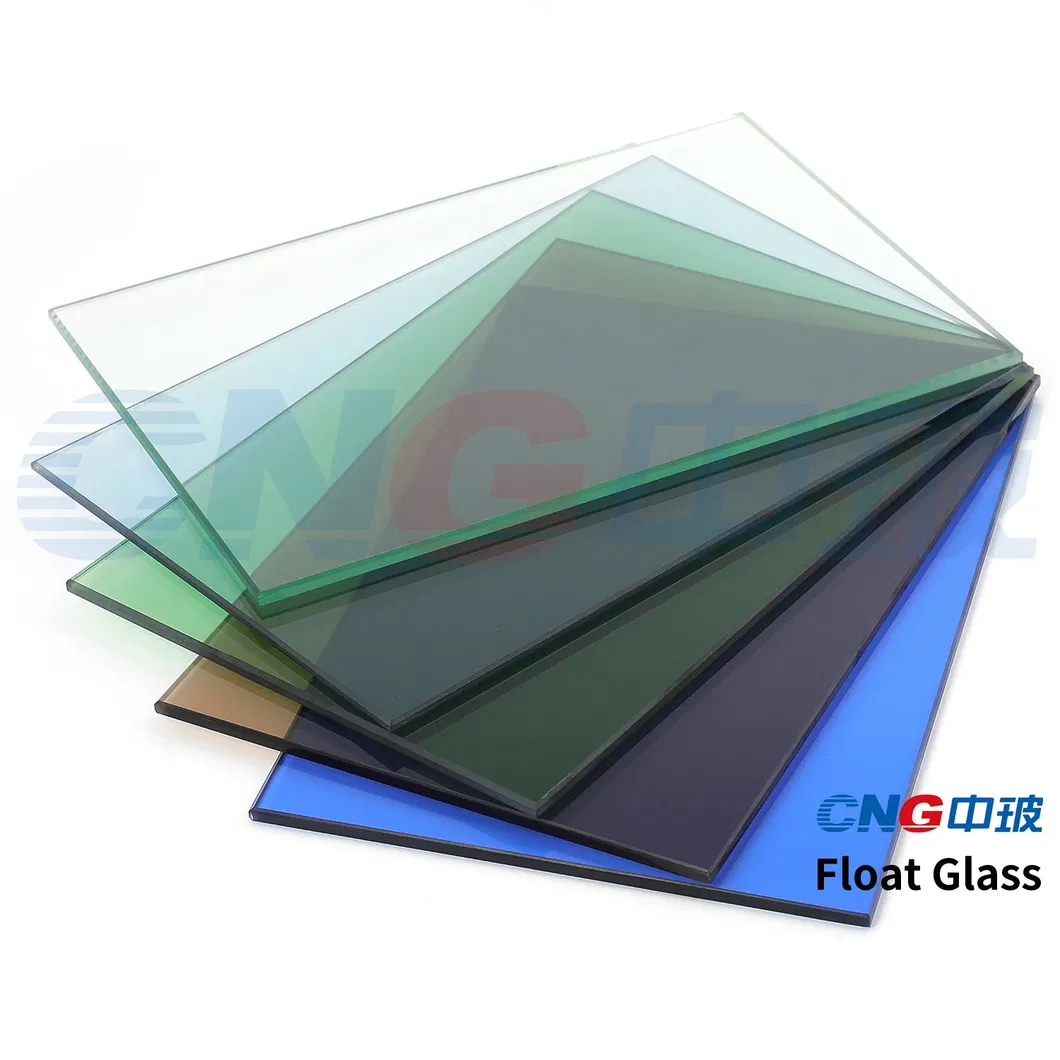

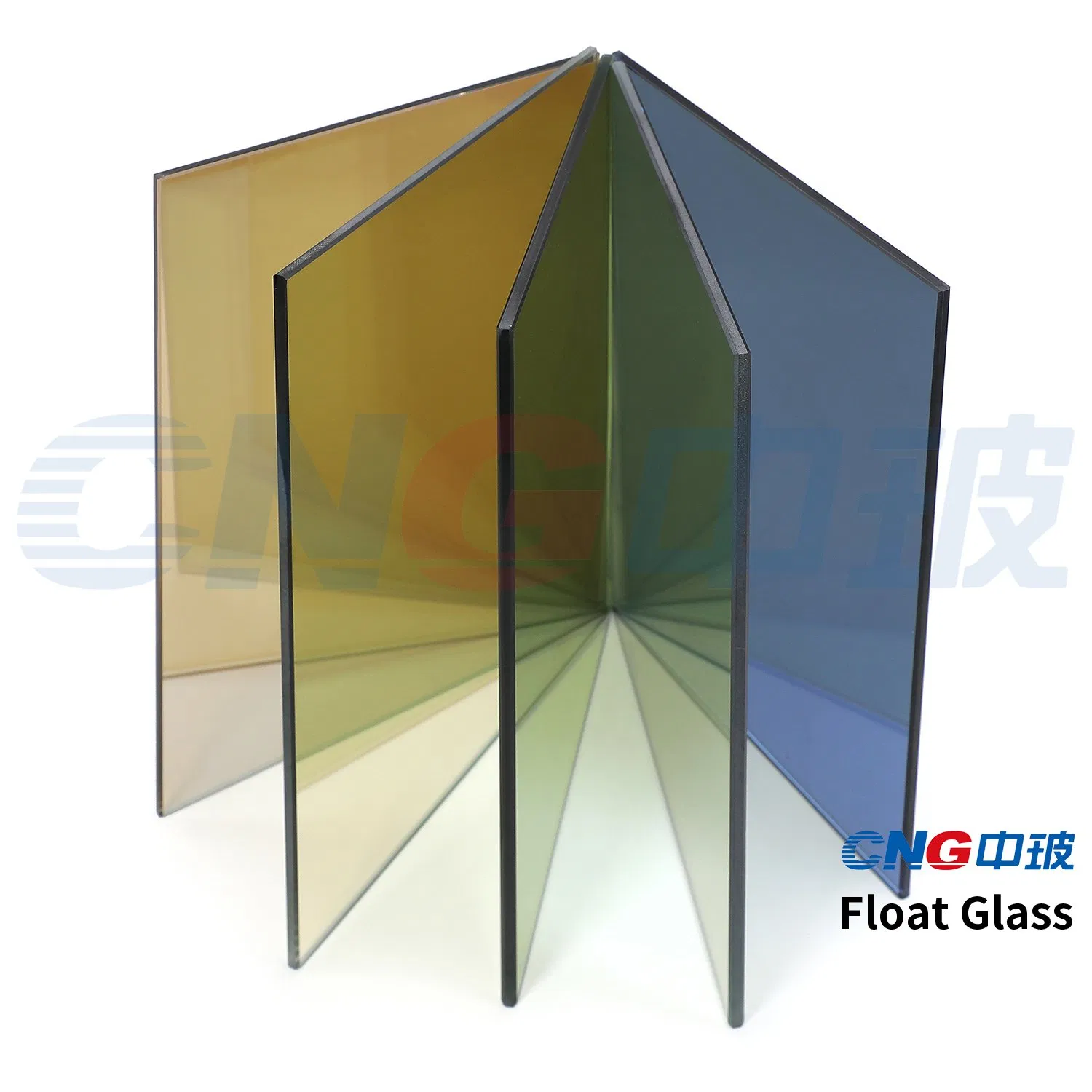

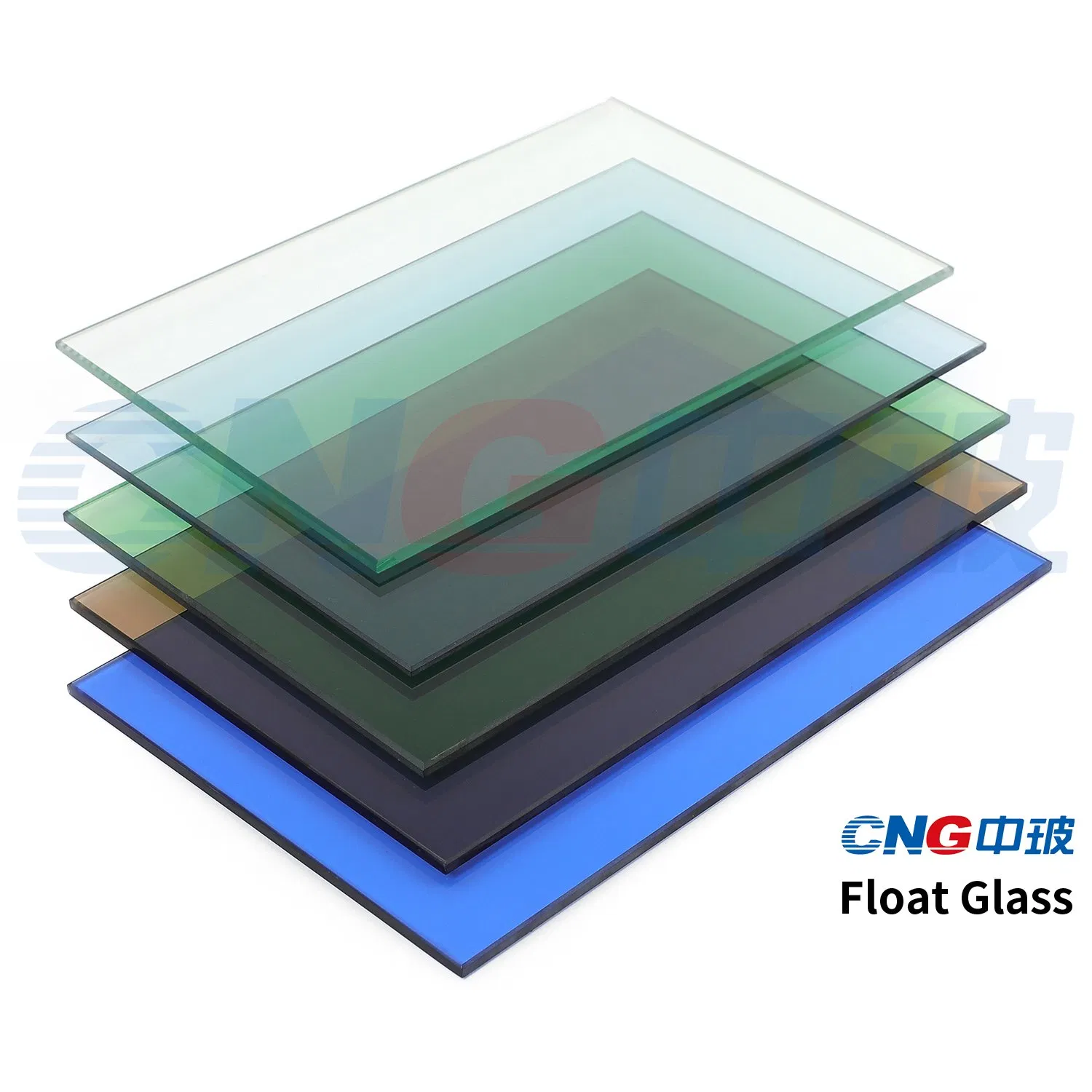

★ Float Glass Coating: Ordinary float glass with a metallic coating fused at 1200ºC. Provides a one-way mirror effect for privacy and durability.

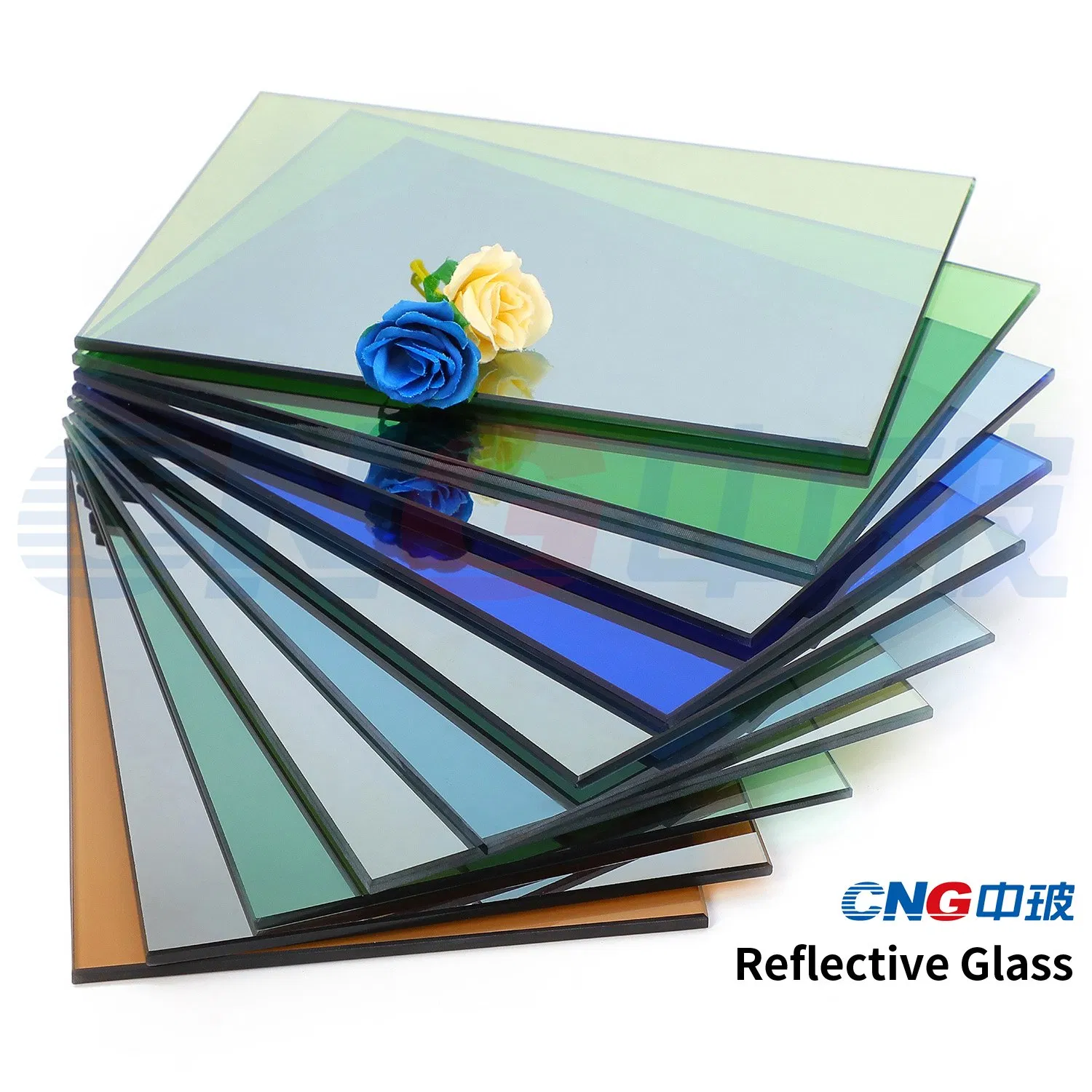

★ On-line Reflective Glass: Processed using Chemical Vapor Deposition (CVD) technology during manufacture. Easily heat strengthened or toughened.
★ Off-line Reflective Glass: Produced via Magnetron Sputtered Vacuum Deposition (MSVD) in vacuum chambers. Offers various colors and high thermal performance.
| Product Name | VT% | UV Light Trans. | Visible Light Reflect. | Total Solar Energy Trans. | SC | K (Summer) |
|---|---|---|---|---|---|---|
| 5mm Bluestar Grey | 24.93% | 4.68% | 17.13% | 45.24% | 0.51 | 5.272 |
| 6mm Bluestar Grey | 20.82% | 3.50% | 14.09% | 41.83% | 0.47 | 5.243 |
| 5mm Ford Blue | 27.20% | 5.82% | 42.80% | 44.80% | 0.515 | ----- |
| 5mm Clear Low-E | 80.17% | 39.94% | 10.45% | 72.32% | 0.81 | 2.939 |
| 6mm Clear Low-E | 78.89% | 36.53% | 8.86% | 69.93% | 0.79 | 2.802 |
| 5mm Euro Bronze | 25.78% | 2.73% | 16.60% | 47.73% | 0.54 | 5.272 |
