Energy Saving Slim Insulated Low-E Tempered Vig Vacuum Insulating Glass
Energy Saving Slim Insulated Low-E Tempered Vig Vacuum Insulating Glass
Energy Saving Slim Insulated Low-E Tempered Vig Vacuum Insulating Glass
Energy Saving Slim Insulated Low-E Tempered Vig Vacuum Insulating Glass
Energy Saving Slim Insulated Low-E Tempered Vig Vacuum Insulating Glass
1 / 5
Energy Saving Slim Insulated Low-E Tempered Vig Vacuum Insulating Glass
Energy Saving Slim Insulated Low-E Tempered Vig Vacuum Insulating Glass
Energy Saving Slim Insulated Low-E Tempered Vig Vacuum Insulating Glass
Energy Saving Slim Insulated Low-E Tempered Vig Vacuum Insulating Glass
Energy Saving Slim Insulated Low-E Tempered Vig Vacuum Insulating Glass

Energy Saving Slim Insulated Low-E Tempered Vig Vacuum Insulating Glass

After-sales Service: Yes
Warranty: 15 Years
Type: Float Glass
Send Inquiry

Product Description

Basic Specifications

Model NO.
LandVac vacuum glass
Product Name
Vacuum Insulated Glass Soundproof
Structure
Hollow / Vacuum
Glass Thickness
8mm - 11mm
Vacuum Layer
0.3mm
U-Value
As low as 0.4W/(m²·K)
Max Dimension
1500*2500mm
Sound Insulation
Exceeding 36dB
Shape
Flat
Color Choice
Clear, Ultra Clear, Gray, Blue
Application
Architecture, BIPV, Vehicles
Hardness
Moh's 8

Product Overview

Energy Saving Slim Insulated Low-e Tempered VIG Vacuum Insulating Glass is an all-new generation of tempered vacuum insulated glass. Using exclusive low-temperature sealing technology, the product features outstanding thermal and sound insulation while retaining high strength and safety standards.
Energy Saving Slim Insulated Glass
🌡️

Thermal Insulation

U-Value as low as 0.4W/(m²·K). A 8.3mm thick LandVac has better insulation than a 1.5m thick brick wall.

🔇

Noise Reduction

Sound reduction index exceeds 36dB, effectively blocking traffic and construction noise.

❄️

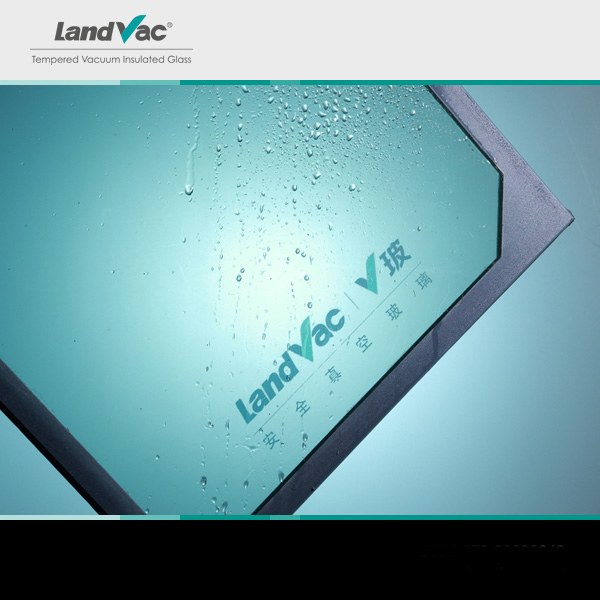

Anti-Condensation

Remains free of condensation even when temperatures fall below -70 °C.

Technical Performance

Product Type Analysis
Product Type Structure Thickness (mm) U-value (W/m²K) Sound Isolation (dB)
LandVac 4TL+0.3V+4T 8.3 0.48 39
Triple Glazing 4T+12A+4TL+0.3V+4T 24.3 0.42 42

Core Advantages

✓ Tempered Safety Glass: Surface stress exceeds 90MPa, meeting full safety glass standards.
✓ Energy Saving: 2-4 times better performance than standard insulated glass.
✓ Ultimate Dewpoint: Interior glass surface remains frost-free down to -40 °C.
✓ Flexibility: Thinner and lighter (1/6 thickness of triple-pane units).
✓ Long Lifespan: Life expectancy exceeds 25 years with flexible edge sealing.
Inner Structure
Seven Advantages

Key Technologies

  • Low Temperature Sealing: Retains tempered glass impact resistance.
  • Flexible Edge Sealing: High resistance against thermal expansion and contraction.
  • High Vacuum Sealing: Maintains consistency in UHV chambers.
  • Flat Sealing: Sealing does not protrude, ensuring easy transportation.
  • Intelligent Automation: Minimizes human intervention for quality consistency.

Wide Applications

Application Scenarios
Architecture
Doors, windows, curtain walls, skylights.
Home Appliances
Freezers, wine cabinets, display cases.
Transportation
High-speed rail, aircraft, vessels.
Agriculture
Modern greenhouse farming.

Quality & Qualification

Production Center
Qualification Certificates

Project Exhibition

Exhibition Cases

Frequently Asked Questions

What is the thermal insulation performance of LandVac?
LandVac features a U-value as low as 0.48 W/(m²·K), which is 2 to 4 times better than standard insulated glass and equivalent to a 1.5m thick brick wall.
Is LandVac safe for use in buildings?
Yes, LandVac is fully tempered vacuum insulated glass. Its surface stress exceeds 90MPa, meeting international safety glass standards for impact resistance.
How effective is it at soundproofing?
It has a weighted sound reduction index exceeding 36dB. It can reduce outdoor noise of 75dB by up to 39dB, making it ideal for quiet environments like libraries.
Does condensation occur on this vacuum glass?
No, LandVac effectively eliminates dew condensation. It remains free of condensation even when outdoor temperatures fall as low as -40 °C.
What is the expected lifespan of the product?
The life expectancy exceeds 25 years, thanks to flexible edge sealing technology and built-in high-efficiency getter materials that resist aging.
What are the maximum and minimum dimensions available?
The maximum dimension is 1500 x 2500 mm, and the minimum dimension is 300 x 300 mm.
