Basic Information
Model NO.
Landvac vacuum glass
Weight
20-28 Kg/Square Meter
Color Choice
Clear, Ultra Clear, Dark Gray, Ocean Blue, Sapphire
Service
Customized Service
Transport Package
Standard Plywood Crate
Production Capacity
10000 Square Meters Per Month
Product Description

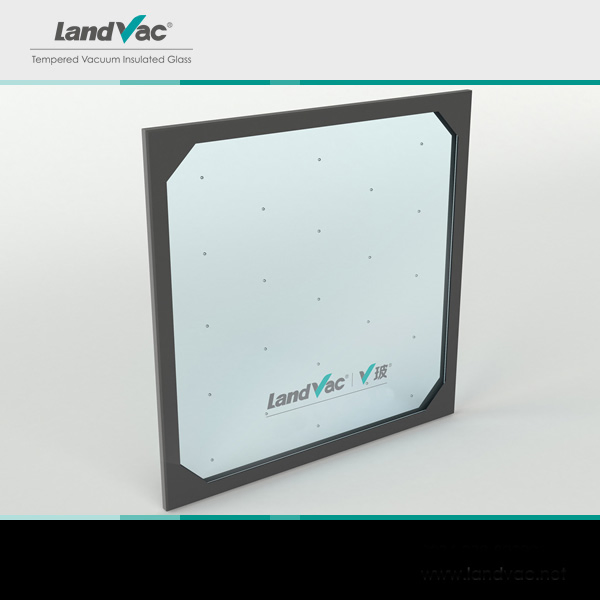

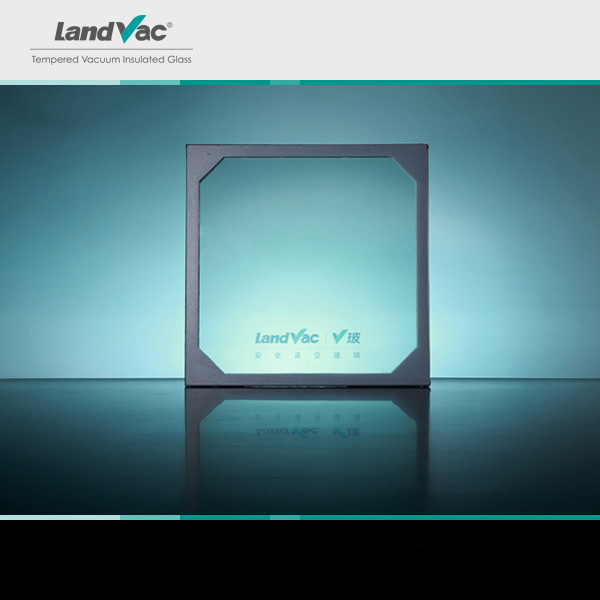

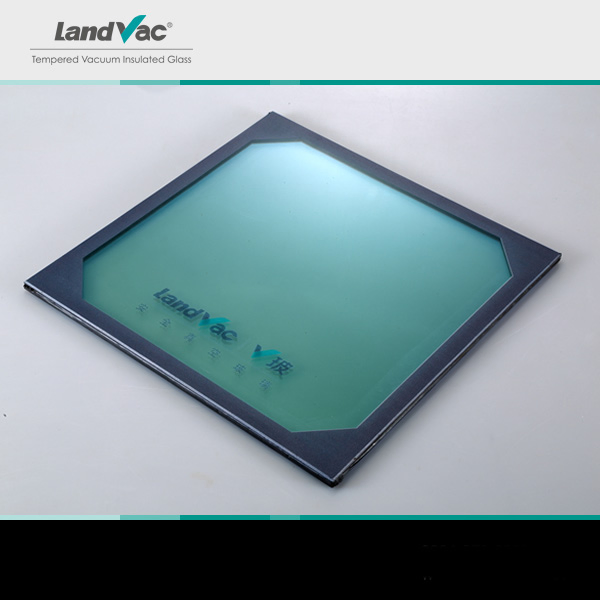

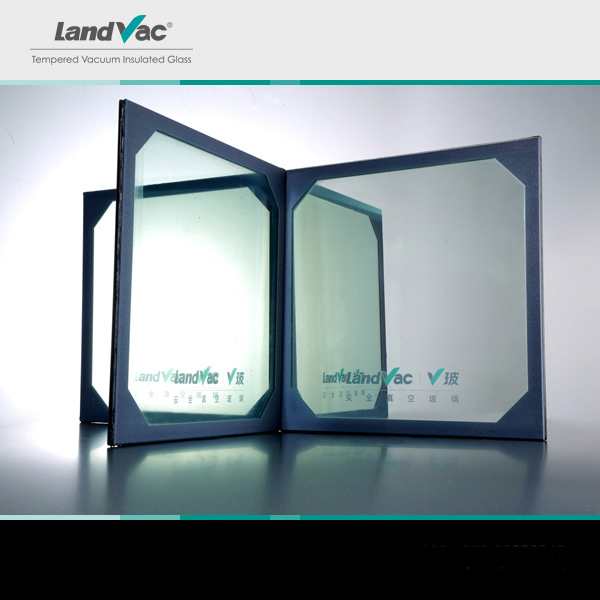

8mm Customized Soundproof Tempered Clear Vacuum Insulated Glass
🛡️
Thermal Insulation: U-Value as low as 0.4W/(m²·K). A 8.3 mm thick LandVac has better thermal insulation than a 1.5m thick brick wall.
🔇
Noise Reduction: Weighted sound reduction index exceeds 36dB, creating library-quiet interiors in downtown areas.
❄️
Free of Condensation: Maintains transparency even below -70 °C, ideal for buildings and freezers.
💎
Tempered Safety: Meets tempered glass standards with wind resistance up to ±7200Pa.
Certifications
- ANSI Z97.1-2015 & CPSP 16CFR 1201(1977) impact testing.
- ATI North America architectural engineering testing.
- ift Germany building materials testing.
- RoHS European Union mandatory standards.
Product Structure & Types
| Product Type |
Structure |
Thickness (mm) |
U-value (W/m²K) |
SHGC |
Sound Isolation (dB) |
| LandVac |
4TL+0.3V+4T |
8.3 |
0.48 |
0.49 |
39 |
| Triple Glazing |
4T+12A+4TL+0.3V+4T |
24.3 |
0.42 |
0.45 |
42 |
Seven Key Advantages
Advanced Technologies
| Low Temp Sealing |
Surface stress exceeds 90MPa, perfectly retaining tempered glass safety features. |
| Flexible Edge Sealing |
Higher resistance against thermal expansion and contraction, preventing sealing failure. |
| High Vacuum Sealing |
Sealed in UHV chamber to maintain high degree vacuum consistency between layers. |
| Flat Sealing |
Sealing does not protrude, ensuring safe transportation and elegant mounting. |
Wide Applications

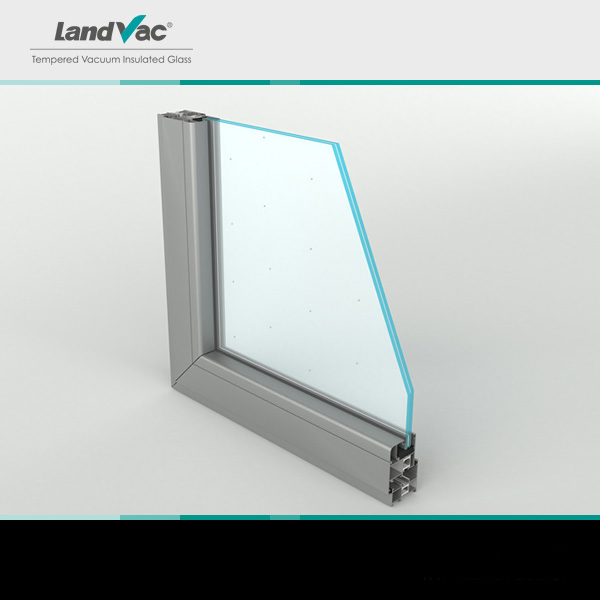

Architecture: Commercial/residential windows, curtain walls, skylights.
Home Appliances: Freezers, wine cabinets, and display cases.
Transportation: High-speed rail, aircraft, and vessels.
Scientific Research: Low-temperature observation windows.
Production & Qualification
Frequently Asked Questions (FAQ)
What is the thermal insulation performance of LandVac?
LandVac features a high vacuum interspace that reduces the U-value to as low as 0.48 W/(m²·K), which is 2 to 4 times better than standard insulated glass.
How does it handle noise reduction?
The vacuum layer effectively blocks sound transmission, reducing outdoor noise level of 75 dB by approximately 39 dB, especially effective against traffic noise.
Is LandVac safe for use in high-rise buildings?
Yes, it is fully tempered with surface stress exceeding 90MPa, meeting international safety glass standards and offering wind resistance up to ±7200Pa.
Will condensation form between the glass layers?
No, the high vacuum interspace eliminates condensation even when outdoor temperatures fall to -40 °C (or lower depending on configuration).
What is the life expectancy of the vacuum glass?
The product is designed for a service life exceeding 25 years, utilizing flexible edge sealing and efficient getter materials to maintain performance.
What are the available dimensions for customization?
The maximum size is 1500x2500mm and the minimum size is 300x300mm, with thicknesses typically ranging from 8mm to 11mm.
