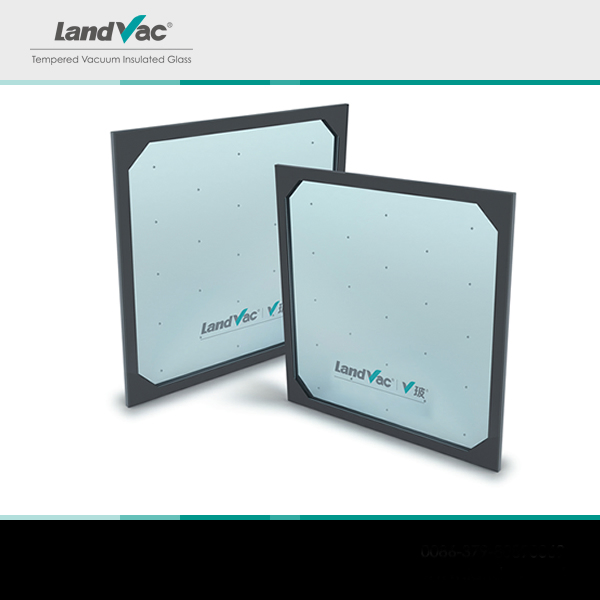

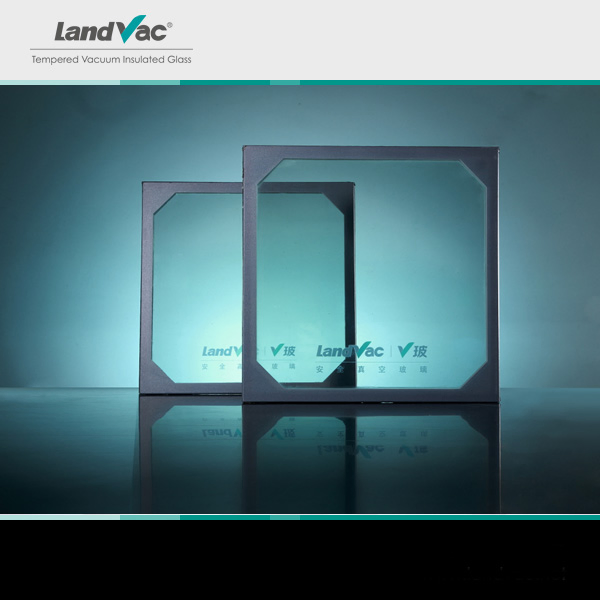

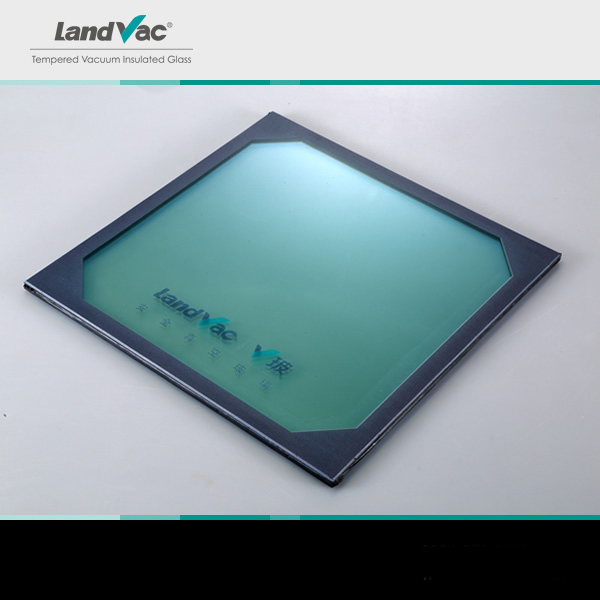

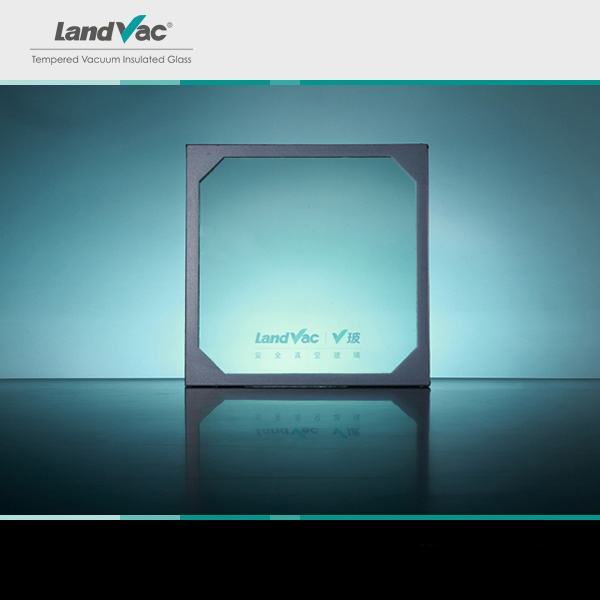

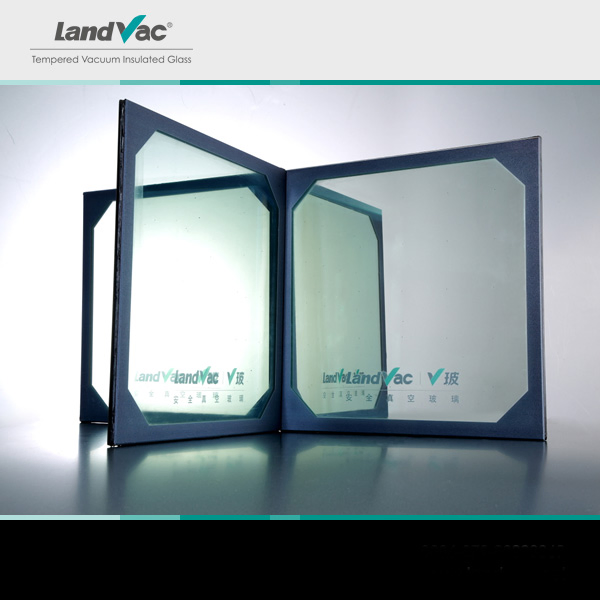

Customized Soundproof Tempered Clear Vacuum Insulated Glass
U-Value as low as 0.4W/(m²·K). An 8.3 mm thick LandVac has better thermal insulation than a 1.5m thick brick wall.
Weighted sound reduction index exceeds 36dB, making downtown rooms as quiet as a library.

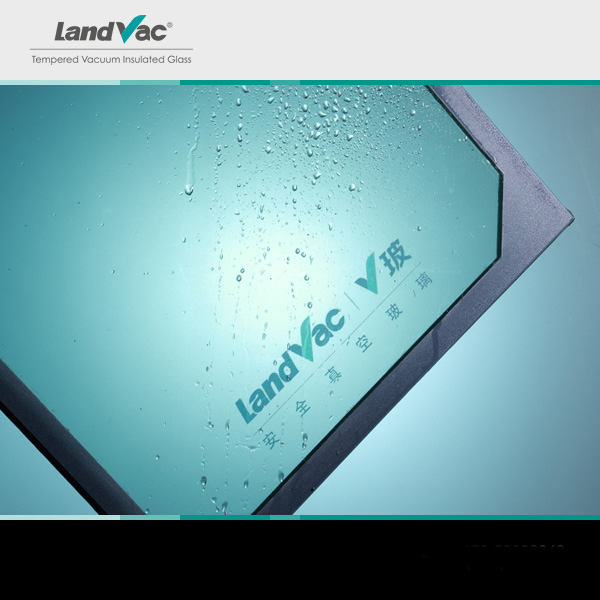

Remains free of condensation even below -70 °C, maintaining exceptional transparency in buildings and freezers.
Surface stress meets tempered glass standards with wind resistance up to ±7200Pa.
| Product Type | Structure | Thickness (mm) |
|---|---|---|
| LandVac | 4TL+0.3V+4T | 8.3 |
| Triple Glazing (Plus Insulated) | 4T+12A+4TL+0.3V+4T | 24.3 |
| Product Type | U-value (W/m²K) | SHGC | SC | Isolation (dB) |
|---|---|---|---|---|
| LandVac | 0.48 | 0.49 | 0.56 | 39 |
| Triple Glazing (Plus Insulated) | 0.42 | 0.45 | 0.52 | 42 |
* T-Tempered clear glass; TL-tempered Low-E glass; V-vacuum space; A-air space. Data calculated per U.S. ASHRAE standards.
Adopting low temperature sealing technology, surface stress exceeds 90MPa, meeting all safety glass standards.

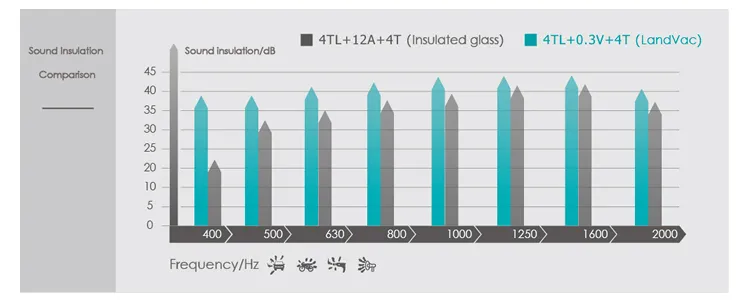

Effectively blocks medium and low frequency noises (traffic/construction). Can reduce outdoor noise of 75dB by up to 39dB.

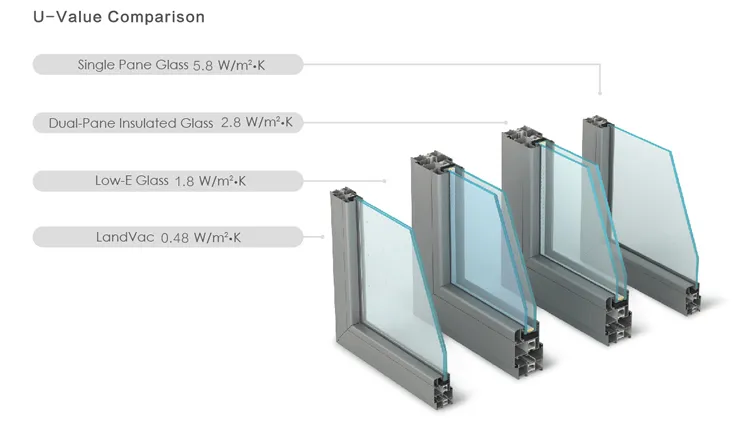

Thermal performance is 2-4 times better than standard insulated glass and 6-10 times better than single pane glass.
Exclusive technology that retains tempered glass safety features during the vacuum sealing process.
Uses flexible materials with high resistance to thermal expansion, ensuring durability against temperature differences.
Sealed in a UHV chamber to ensure consistent performance and long-term durability.
Sealing does not protrude above the glass surface, allowing for elegant mounting and safe transport.
Approved by leading North American and European institutions including ANSI, ATI, ift, and RoHS. The thermal insulation reaches Level 10 of national standards.
