Product Description
| Specifications |
Parameter Range |
Applicable Scenarios |
Thickness / Transmittance |
Power Output |
| Home |
1200×600mm / 1600×800mm |
Roofs / Balcony Railings |
10-12mm / 10%-60% |
100W-300W/unit |
| Commercial |
2400×1200mm / 3000×1500mm |
Factory Walls / Power Plants |
22mm / 10%-60% |
500W-1000W/unit |
| Custom |
1000-4000mm available |
Curtain Walls / Landscapes |
6-20mm / 10%-60% |
By Size |
Key Product Features
☀️ Weak Light Performance
CdTe is a direct bandgap material with excellent absorption. It performs significantly better than crystalline silicon in early morning, evening, or overcast conditions.
🌡️ Low Temperature Coefficient
With a coefficient of -0.21~0.25%/ºC, these cells generate more power in high-temperature environments compared to traditional silicon cells.
⚡ High Conversion Efficiency
Theoretical efficiency reaches 28-29%. It absorbs 90% of visible light with only 1μm thickness.
🛡️ Stable Power Output
No light-induced degradation. Performance remains stable in humid climates as absorption does not overlap with water vapor peaks.
🏢
Company Profile
ZOOM SOLAR specializes in the R&D and production of cadmium telluride (CdTe) and perovskite thin-film solar cells. We focus on BIPV (Building-Integrated Photovoltaics) and photovoltaic-powered consumer electronics, targeting diverse applications from central power plants to urban renewal projects.
R&D Achievements
- Breakthroughs in high-efficiency, low-cost inverted perovskite thin-film cells.
- Self-developed advanced deposition instruments (CSS and VTD).
- Customizable dimensions and light transmittance for seamless building integration.
Frequently Asked Questions
Is Zoom Solar a direct manufacturer?
Yes, Zoom Solar is a high-tech enterprise primarily developing and producing cadmium telluride solar cell modules and high-purity metal organic compound materials.
Do you provide OEM/ODM services?
Yes, our core focus is R&D and production. We provide full OEM/ODM services based on specific customer requirements, supported by an expert R&D team.
What are your quality certifications?
Our products hold CE, TUV, and CQC certifications. Our company is ISO9001:2015 certified, and every batch includes a professional test report.
What after-sales technical support do you offer?
We provide customization drawings, remote technical guidance, and can even dispatch technicians for on-site installation guidance.
Is there a Minimum Order Quantity (MOQ)?
No, we do not have an MOQ. Our goal is to expand the reach of green energy and bring value to every customer regardless of project size.

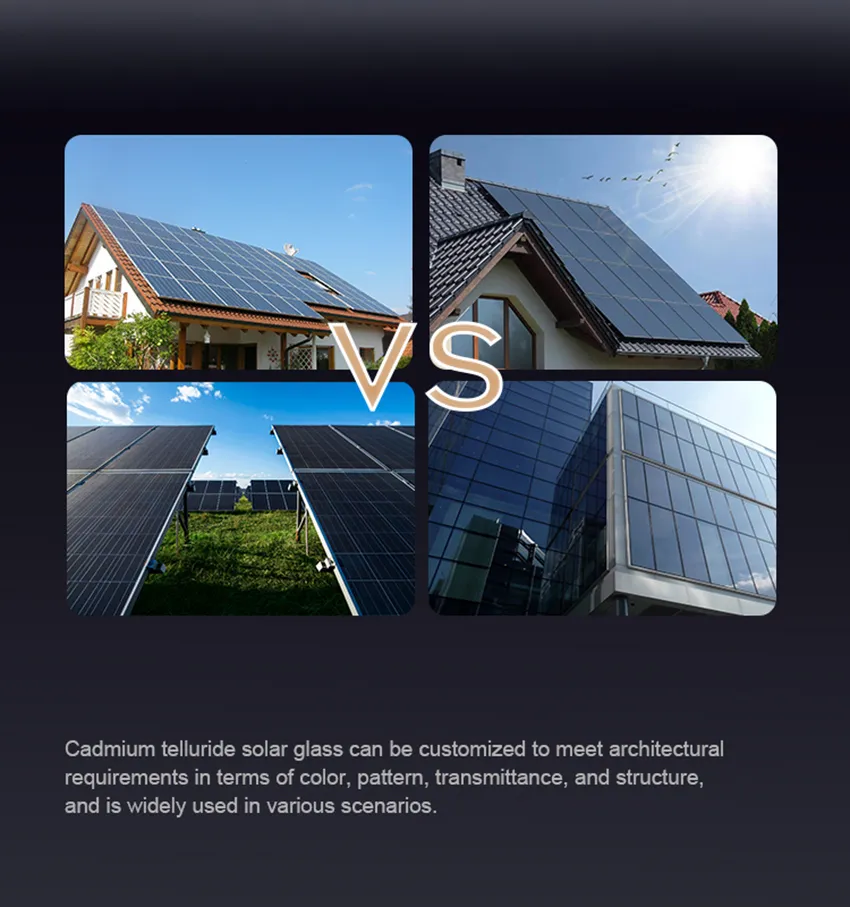

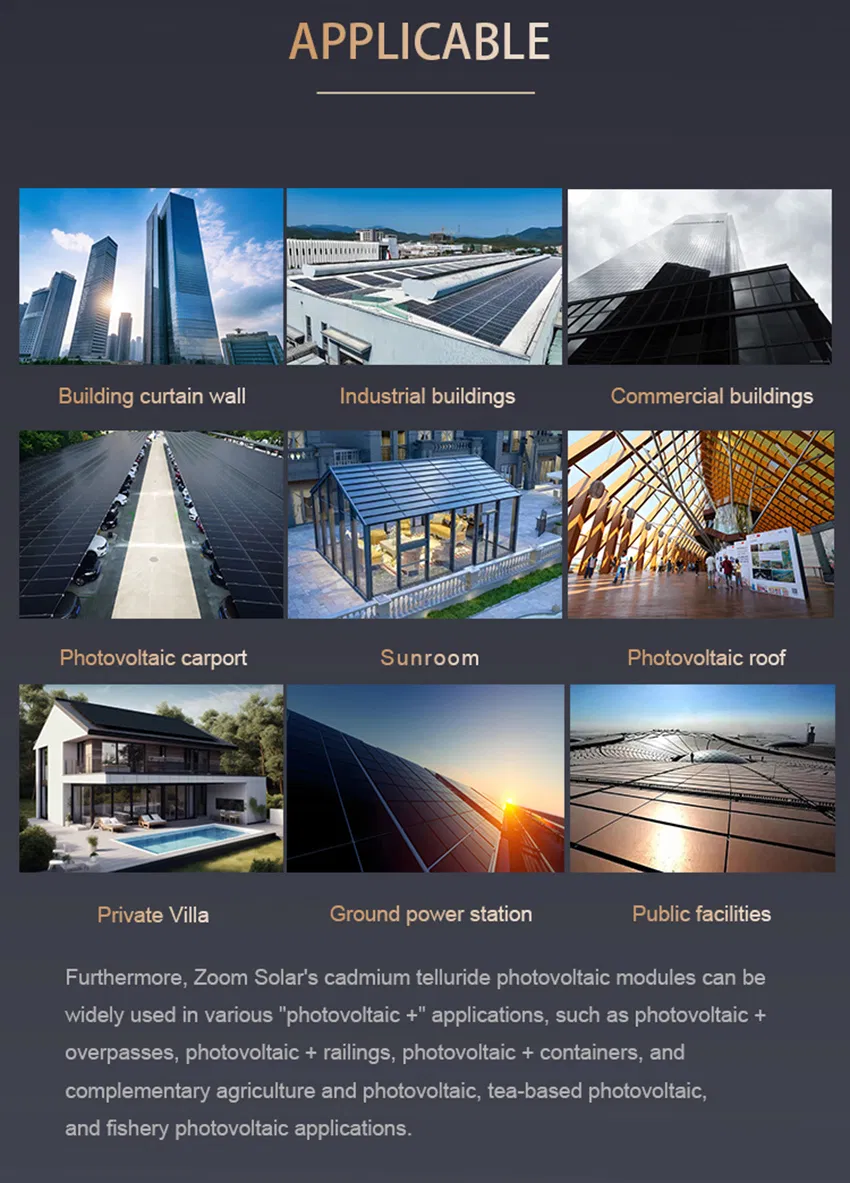

What are the primary applications for CdTe glass?
It is ideal for BIPV projects, including curtain walls, factory rooftops, sun-shading devices, and even specialized uses like renewable energy vehicles.
